Schiller BR-102 PLUS - Cuff Type with D-Ring; Cuff Type Without D-Ring

3 BP recording
3.2 Applying the Cuff
Page 30
BR-102 plus / BR-102 plus PWA
Art. no.: 2.511076 Rev.: g

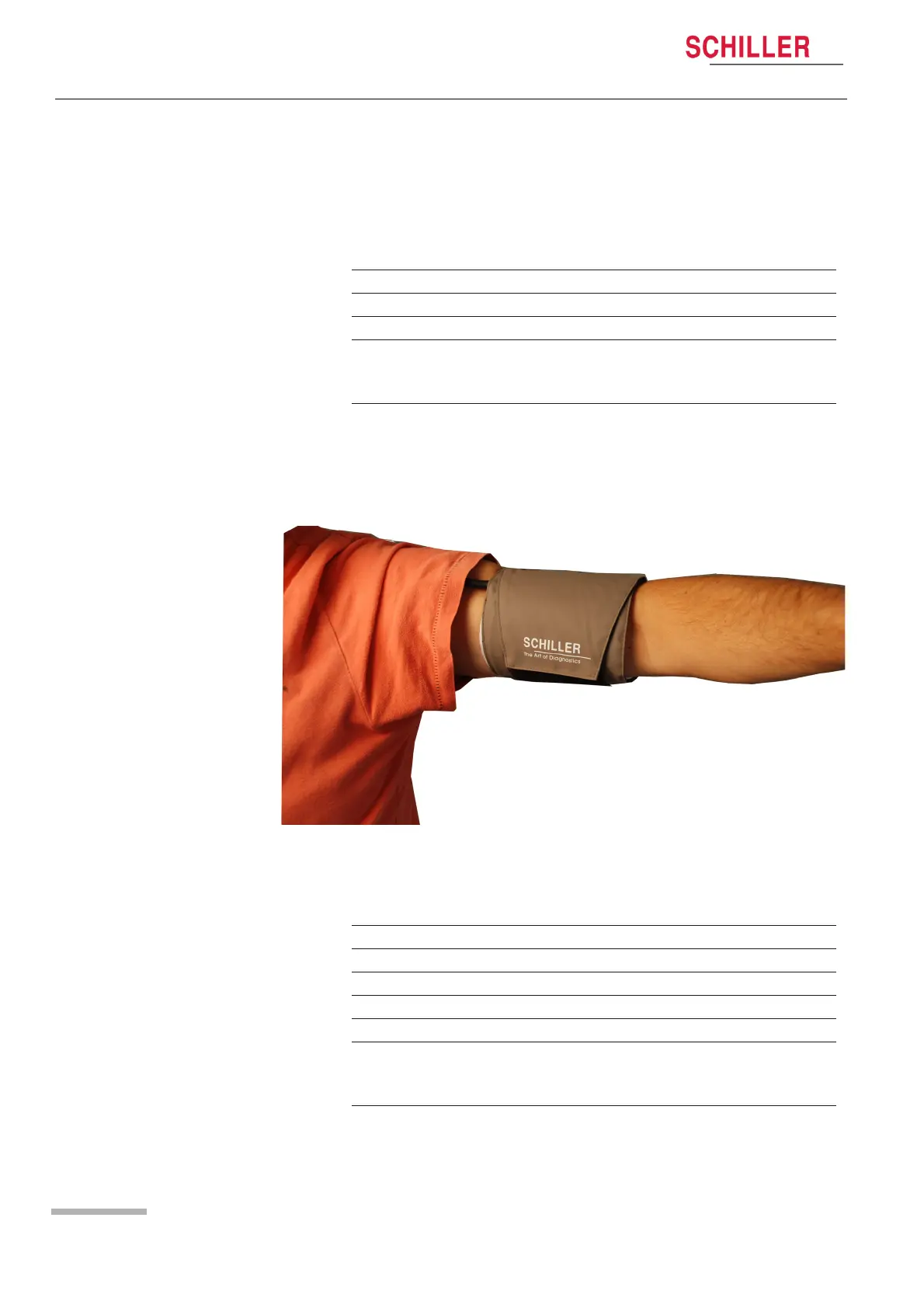

3.2.1 Cuff Type with D-ring
There are three sizes available for the cuff with D-ring:
3.2.2 Cuff Type without D-ring
The cuff is positioned, and the hose routing and unit positioning is the
same as for the cuff with the buckle.
There are five sizes available for the cuff without D-ring
:
To fit arm size
Midpoint arm circumference
[cm]
Cuff designation
18 - 26 S (Small adult, Child)
25 - 35 M (Adult)
35 - 45 L (Large adult)
Note: A cuff that is too small for the patient may give over
measurements. Similarly, a cuff that is too large for the patient
may give under measurements.
To fit arm size
Midpoint Arm Circumference
[cm]
Cuff Designation
14 - 20 XS (Child, Osc only)
18 - 24 S (Small Adult, Child)
25 - 35 M (Adult)
30 - 36 L (Large Adult)
35 - 46 XL (Extra Large, Wide, Adult)
Note: A cuff that is too small for the patient may give over
measurements. Similarly, a cuff that is too large for the patient
may give under measurements.
