GF3000 SERIES INSTALLATION MANUAL
Installing a GF3000 Series Lock
Mounting the Lock - Standard, TRD, TJ, SM
After the door and frame have been prepared, do the following:

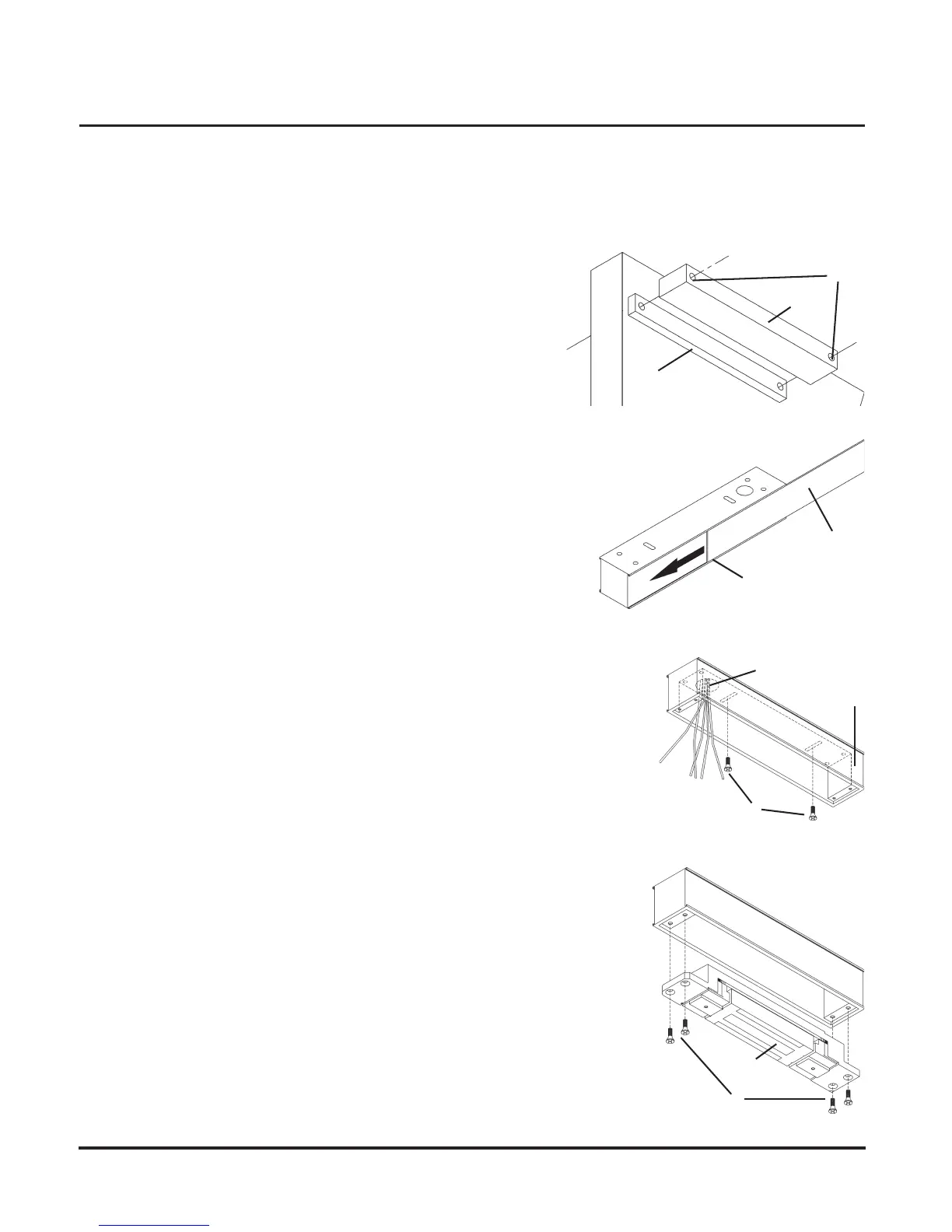

1) Install Armature Mounting Spacer:
2) Install Faceplate:
3) Attach Magnet Housing to Frame:
4) Install Magnet:
• Using two, 1/4 x 20 screws, secure mounting spacer
(b) and armature housing (c) onto door.
> Use through-holes (a).
a
b
c
• Install faceplate (a) into magnet housing.
• Tighten set screws (b).
a
b
• Carefully feed wires through access hole (a) in magnet
housing (b).
• Using either two, 10 x 3/4 sheet metal screws or two,
10 x 1/2 machine screws (c), loosely attach magnet
housing to frame.
> DO NOT COMPLETELY TIGHTEN AT THIS TIME
c
b
a
• Make final wiring connections (see Wiring Diagram: on
page 21 .
• Insert GF3000 magnet (a) into magnet housing.
• Using four, 10-24 x 1/2 screws (b), secure mounting
spacer and armature housing onto door.
b
a
Page 13
