GF3000 SERIES INSTALLATION MANUAL
Installing a GF3000 Series Lock
2) Installing the GF3000BRD Threshold Box:

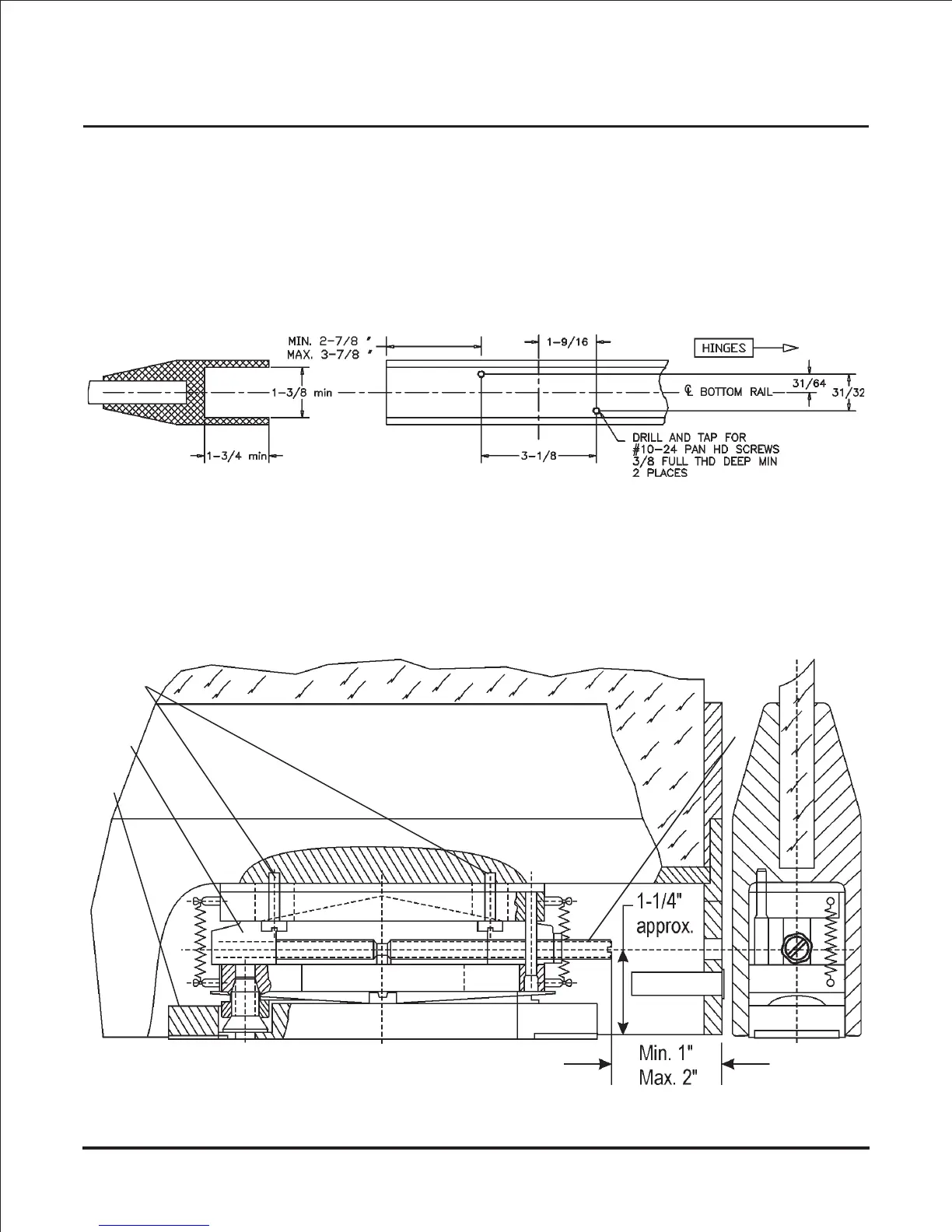

3) Preparing the Door for the Armature:
4) Mounting the GF3000BRD Armature in the Door’s Bottom Rail:
in the Door’s Bottom Rail:
After the pocket and trench are created, do the following:
• Feed 1/2" conduit into either 7/8" diameter hole in threshold box.
• Secure conduit with nut.
• Position box in pocket and conduit in trench.
• Pour concrete around threshold box and conduit and allow to cure.
• Mount armature mounting bracket assembly (a) to bottom rail using #10-24 x 3/4"
Pan head screws (b) supplied.
• Mount armature assembly (c) to armature mounting bracket assembly (a)
• Remove end cap on door to expose adjusting screw (d). If door doesn't have a
removable end cap, an access hole will have to be drilled in edge of door according
to the approximate dimensions as shown.
a
c
b
d
Page 15
