Assembly and settings
38 02.00 | JGP-P | Assembly and Operating Manual | en | 1469637

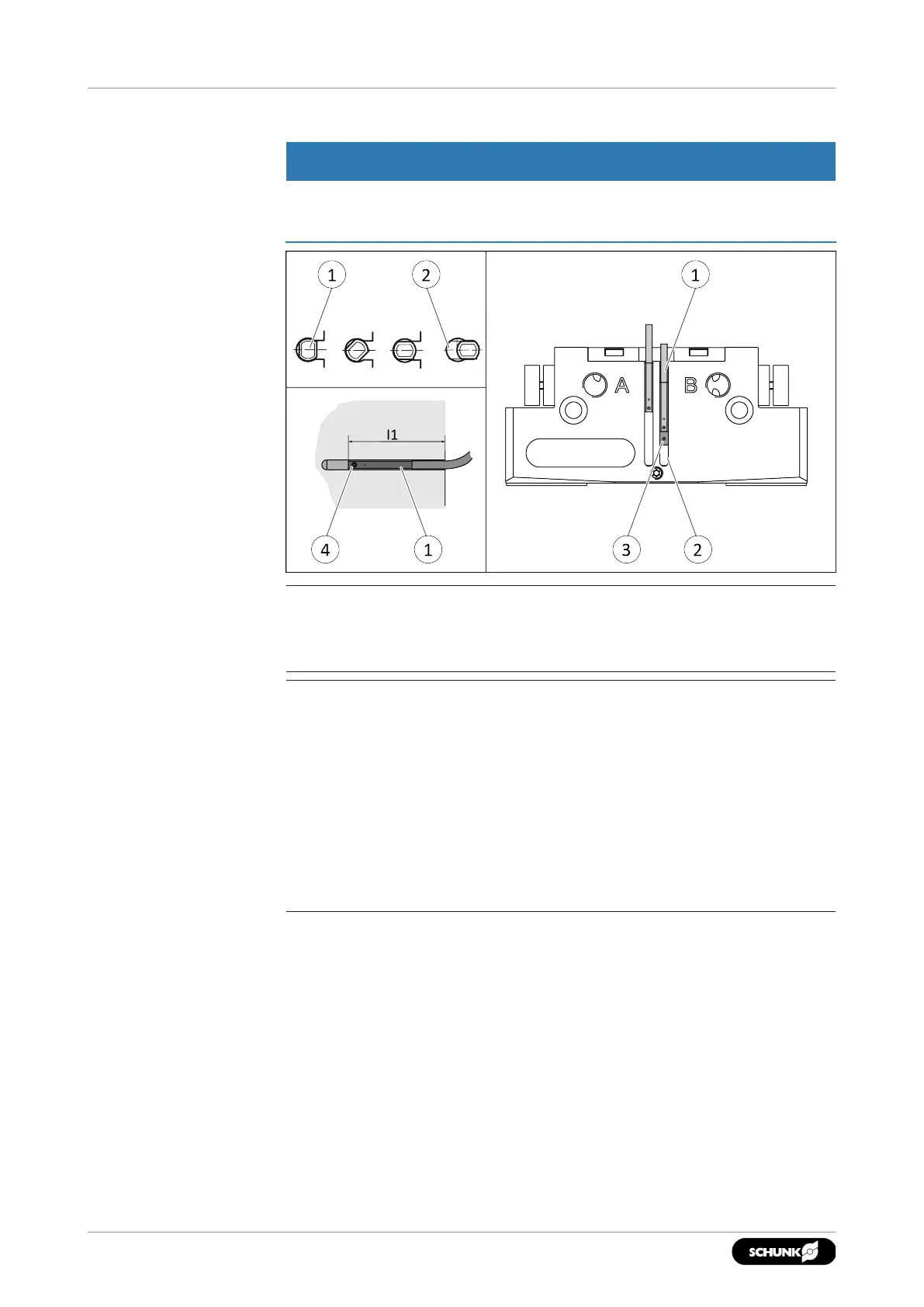

5.4.9 Mounting MMS 22-PI1 programmable magnetic switch
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), }5.4.2 [
/
31].
NOTE
The magnetic switch MMS 22-PI1 can be adjusted and taught in
two ways.
• "Standard mode" allows for quick installation on the T-nut
preset by SCHUNK in the groove or the defined setting
dimension "l1."
• In "Optimal Mode", the sensor identifies the optimal position in
the groove itself.
SCHUNK recommends "Optimal Mode" for setting the sensors.
Setting the sensor in "Optimum mode"
1. Put product in the position in which it is to be set.
2. Hold teaching tool to the sensor1(1) until the sensor flashes.
3. Slide sensor1(1) into the groove(2), until the sensor1 flashes
rapidly.
✓ The optimum position is displayed.
4. Secure the sensor1(1) using the set-screw(4).
Tightening torque: 10Ncm
5. Hold teaching tool to the sensor1(1) to confirm the position.
✓ The sensor1(1) has been taught in.
