5.2 Connections
5.2.1 Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Connections at the
base jaws

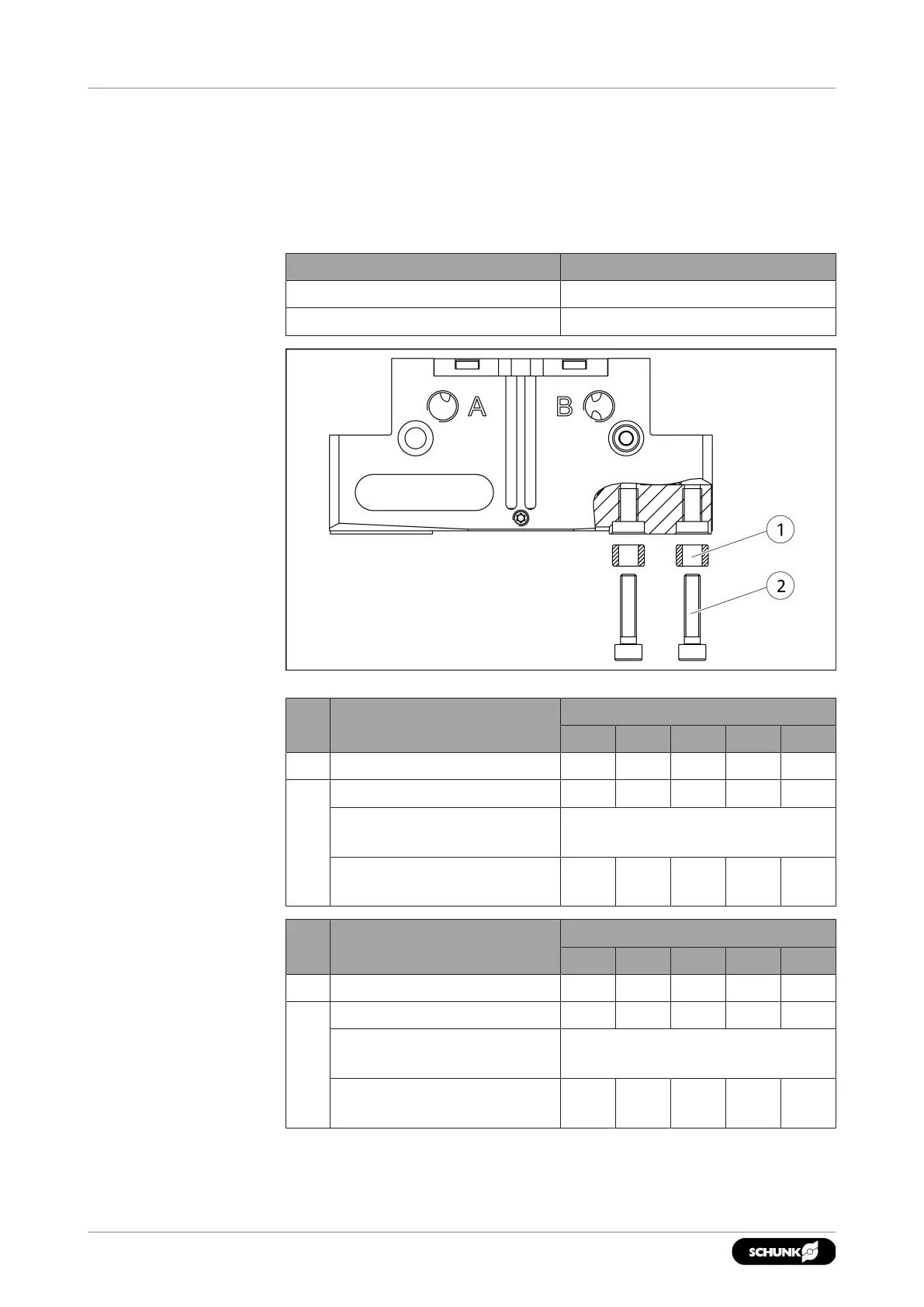

Connections at the base jaws
Item Mounting JGP-P
40 50 64 80 100
1 Centering sleeve Ø4 Ø5 Ø6 Ø8 Ø10
2 Thread in base jaws M2.5 M3 M4 M5 M6
Mounting screw strength
class
12.9
Max. depth of engagement
from locating surface [mm]
6.1 8.5 10.7 11.9 14.2
Item Mounting JGP-P
125 160 200 240 300
1 Centering sleeve Ø10 Ø14 Ø16 Ø16 Ø22
2 Thread in base jaws M6 M10 M12 M12 M16
Mounting screw strength
class
12.9
Max. depth of engagement
from locating surface [mm]
14.2 17 19.3 21.1 27.9
