SCHUNK JGP-P - Mounting the Magnetic Switch MMS 22-IOL

Assembly and settings
6. Repeat steps for sensor2.
Alternatively for size 40–160, except size 50:
Setting the sensor in "Standard mode"
1. Turn the sensor 1 (1) into the groove (2).
OR: Slide the sensor 1 (1) into the groove (2) until the
sensor 1 (1) stops at the T-nut (3).
2. Secure the sensor 1 (1) using the set-screw (4).
Tightening torque: 10Ncm
3. Adjust sensor 1 (1), see sensor assembly and operating
manual.
4. Repeat steps for sensor 2.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), }5.4.2 [
/
31].
5.4.10 Mounting the magnetic switch MMS 22-IOL
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), see the following table.

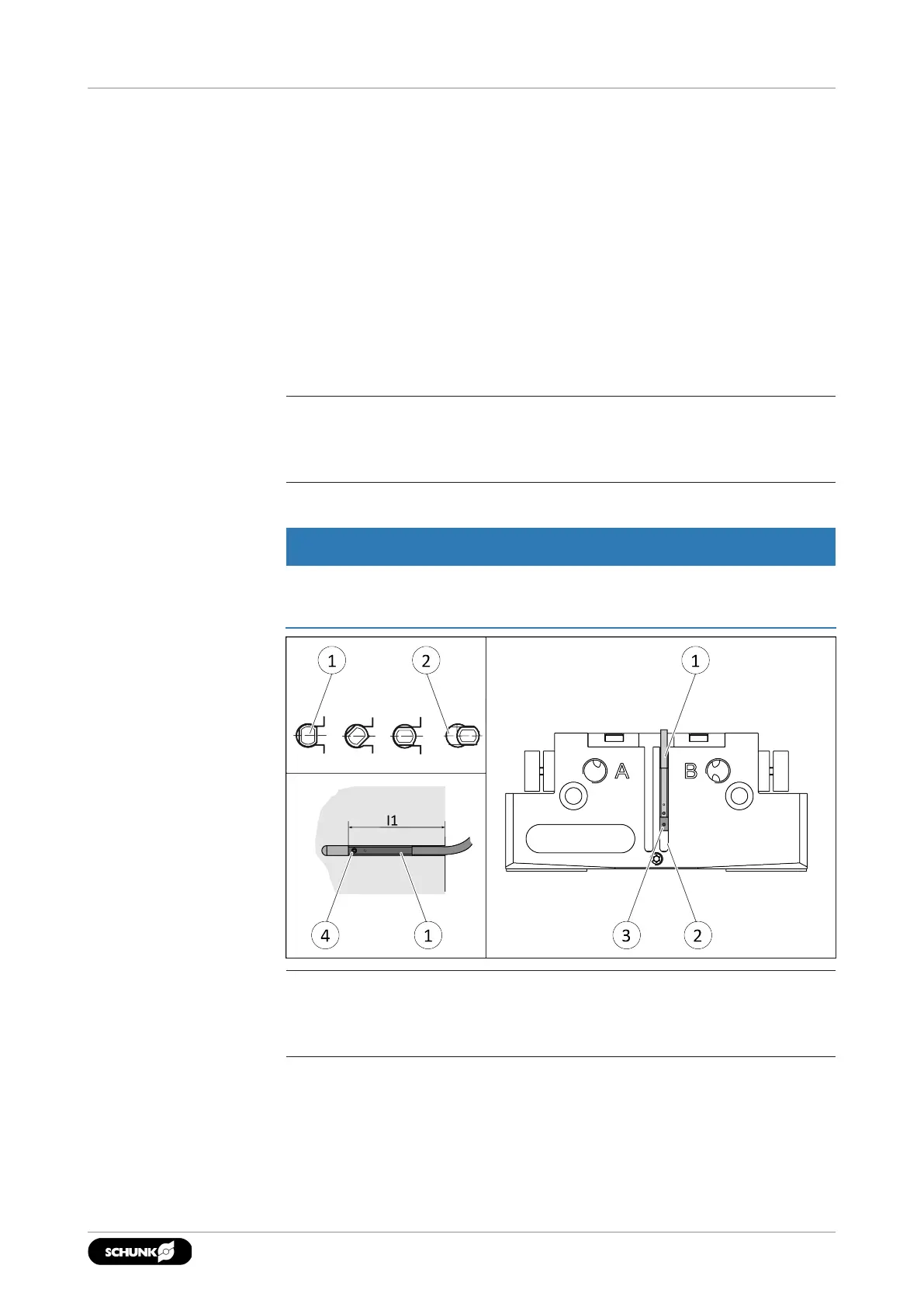

1. Turn the sensor (1) into the groove (2).
OR: Slide the sensor (1) into the groove (2) until the sensor (1)
stops at the T-nut (3).
2. Secure the sensor (1) using the set-screw (4).
Tightening torque: 10Ncm
