Maintenance

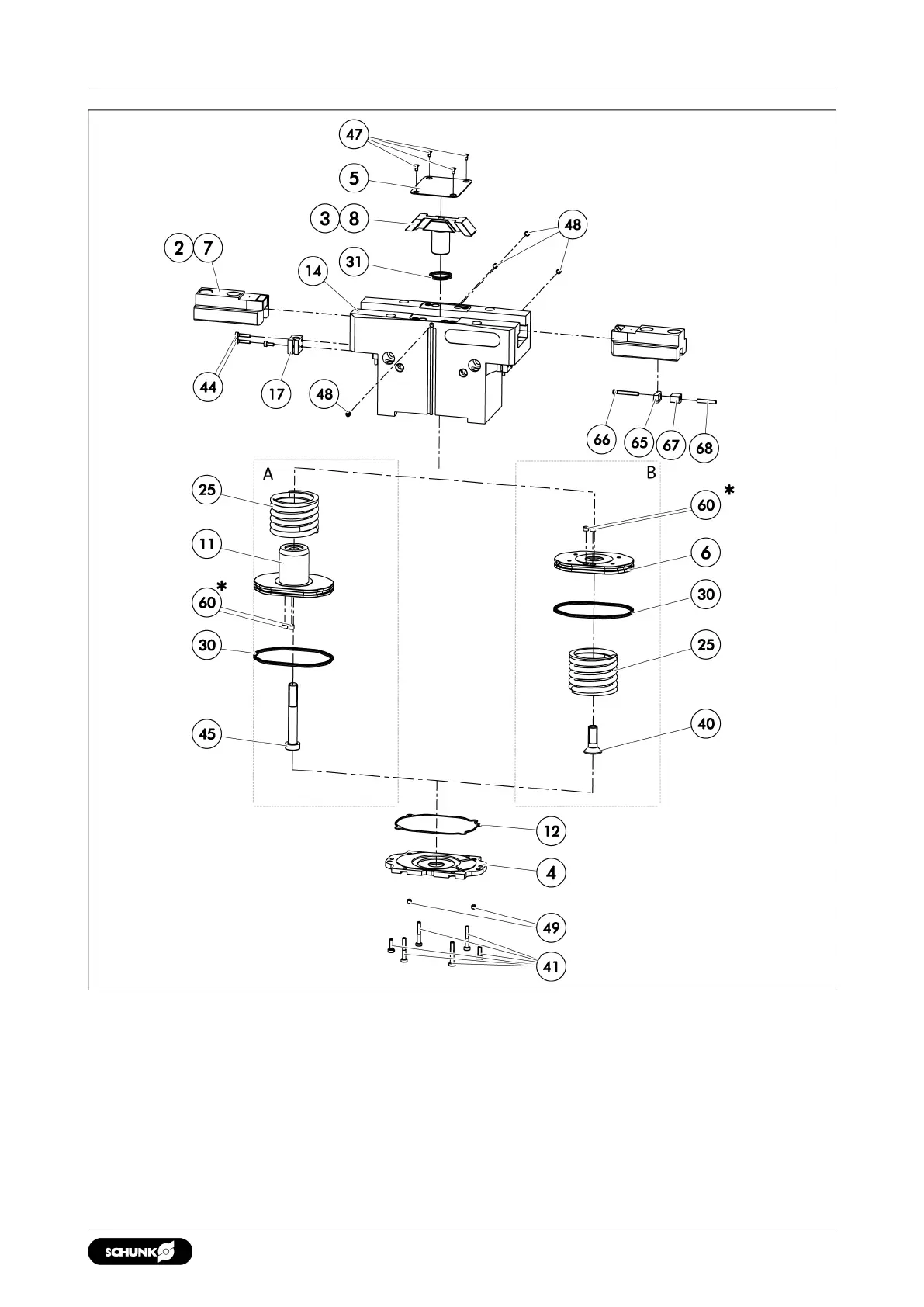

JGP-P 40–160 with maintenance of gripping force O.D. gripping (A) and I.D. gripping (B)
* Position of the magnets in the piston depends on the variant and size, }7.6 [
/
55].
5902.00 | JGP-P | Assembly and Operating Manual | en | 1469637
