Assembly
14.00 | SRU | Assembly and Operating Manual | en | 389439 21
Mounting
The module can be mounted from the top, from the bottom or
from the side.

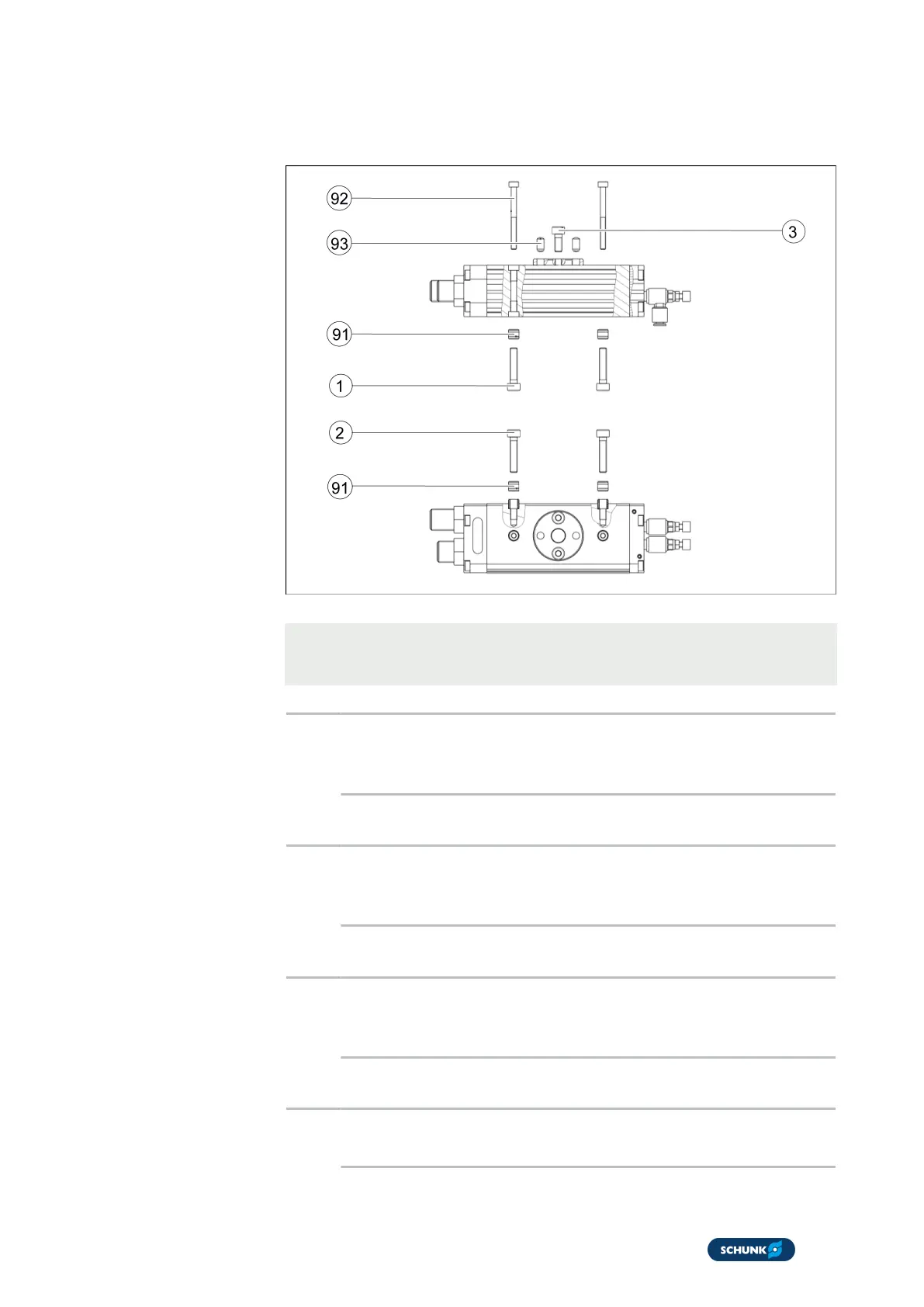

Assembly options
Item Designation SRU
8 10 12 14
91 Centering sleeves Ø5 Ø5 Ø6 Ø6
92 Screws for fastening from
above (output side)
M2.5 /
25
deep
M2.5 /
25
deep
M3 /
35
deep
M3 /
35
deep
Max. tightening torque
[Nm]
0.75 0.75 1.3 1.3
1 Screws for fastening from
below (underside)
M3 /
4.5
deep
M3 /
4.5
deep
M4 /
6 deep
M4 /
6 deep
Max. tightening torque
[Nm]
1.3 1.3 3 3
2 Screws for fastening on the
side
M3 /
4.5
deep
M3 /
4.5
deep
M4 /
6 deep
M4 /
6 deep
Max. tightening torque
[Nm]
1.3 1.3 3 3
3 Screws for fastening the
adapter plate
M3 /
4 deep
M3 /
4 deep
M4 /
5 deep
M4 /
5 deep
