5.4.2 Mounting MMS 22 magnetic switch
CAUTION
Material damage due to an incorrect tightening torque!
If the threaded pin is tightened with an incorrect tightening
torque, the product may be damaged.
l
Observe a maximum tightening torque of 10 Ncm for the set-
screws.

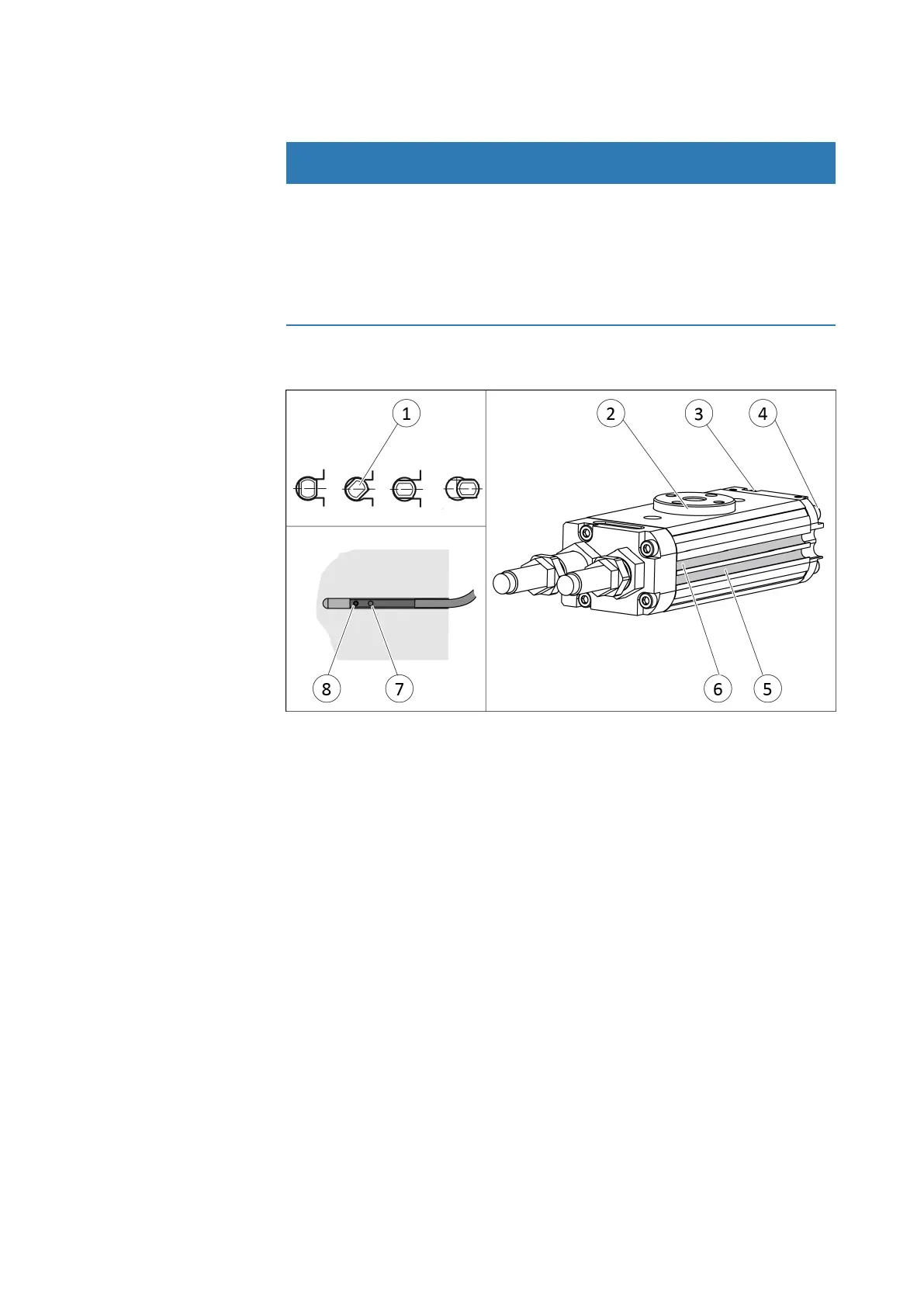

Two groves have been worked into the housing to mount the
sensors.
1. Connect sensor and secure cable, see the Sensor Assembly
and Operating Manual.
2. Apply air pressure to connection "A" (4).
ð Pinion (2) swivels towards the end position.
3. Insert or screw the first sensor (1) into the groove (5).
4. Move the sensor along the groove until it actuates.
5. Tighten set screw (8).
ð Tightening torque: 10Ncm
6. Bleed connection "A" (4).
7. Actuate connection "B" (3).
ð Pinion (2) swivels into the other end position.
8. Insert or screw the second sensor (1) into the groove (6).
9. Move the sensor along the groove until it actuates.
10. Tighten set screw (8).
ð Tightening torque: 10Ncm
11. Check the switching position and test its function.
Center position
variant
Rotate unit in the center position and mount sensor analogously.
