Assembly
22 14.00 | SRU | Assembly and Operating Manual | en | 389439
Item Designation SRU
8 10 12 14
Max. tightening torque
[Nm]
1.3 1.3 3 3
93 Cylindrical pin for securing
the adapter plate
Ø3 x 8 Ø3 x 8 Ø4 x 8 Ø4 x 8
Tab.: Mounting material
5.2.2 Pneumatic connection
CAUTION
Avoid causing damage by approaching the end positions softly.
l
Attach the one-way control valve to the product when
connecting to the center position.

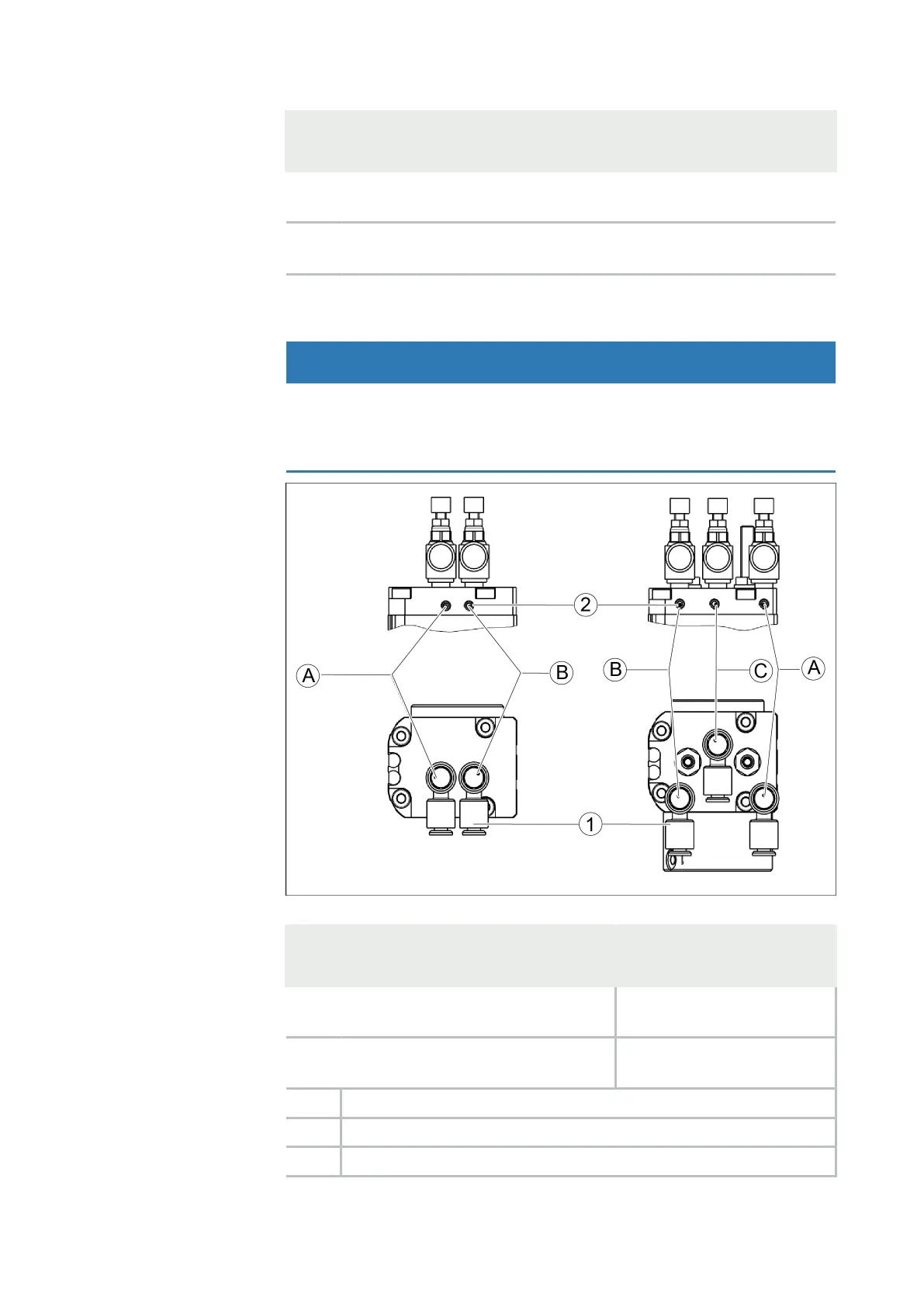

Air connections
Item Designation SRU
8 10 12 14
1 Thread diameter hose connection
(A ; B ; C)
M3
2 Thread diameter hose-free direct
connection on base side (a ; b ; c)
M3
A Hose connection für swiveling clockwise
B Hose connection für swiveling counter-clockwise
C Hose connection for swiveling in center position
Tab.: Thread diameter of the air connections
