SCHUNK STM 48V - Page 36

Accessories
36 05/STM-48V/en/2011-04-01/CW

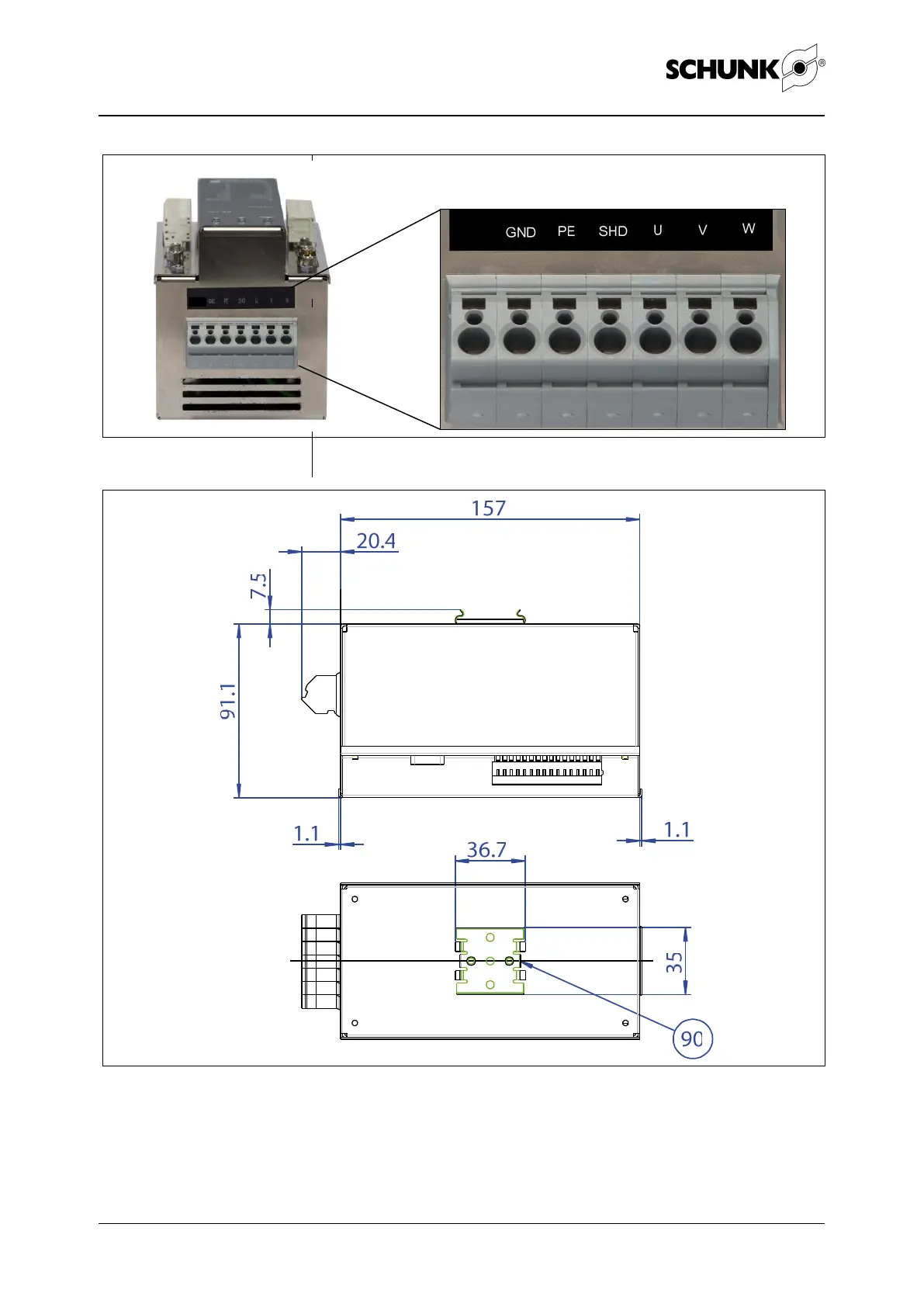

Figure 8 Position of X1 terminal strip (motor and power supply for controller)
Figure 9 dimension and mounting the MCS-12 controller
The MCS-12 controller is mounted by means of the metal
base bar (90) on the mounting rail according to EN 50022.
1 4 7
+48V
+48V
