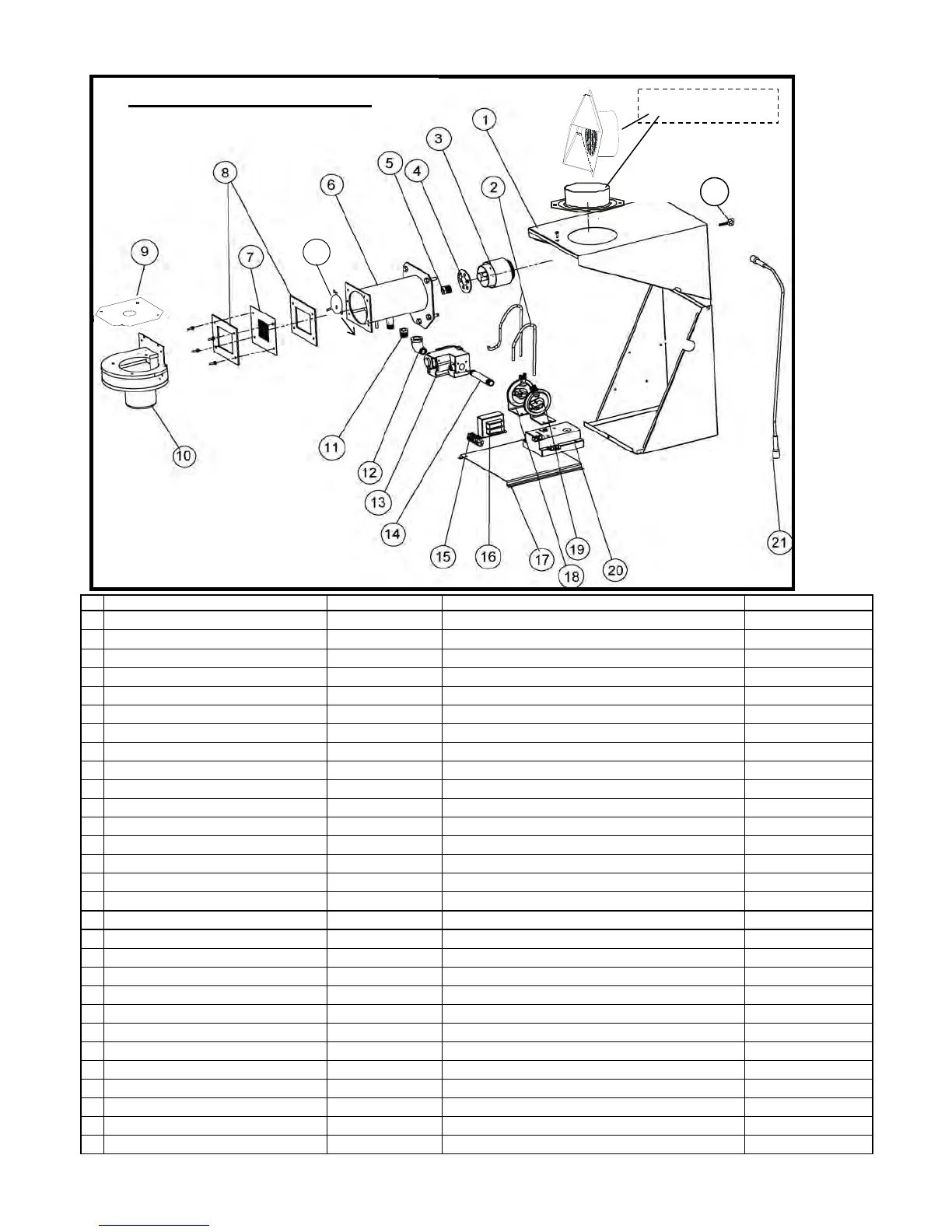

30 REPLACEMENT PARTS
S100 / ITB Burner
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
1
BURNER HOUSING
JS-0582-XX Burner housing coated orange Schwank
JJ-0582-XX Burner housing coated gray InfraSave
2
PRESSURE SWITCH TUBING
JS-0572-SE Tubing set 2 x 20" PVC SE
3
BURNER Cup
JS-0510-LP-45 Burner Cup 45 Mbh 45
JS-0510-LP Burner Cup 60, 80, 100 60-100
JS-0512-UL Burner Cup - Cast Aluminum - No Hole 175 LP
JS-0512-XX Burner Cup large 110-200
4
AIR RESTRICTOR RING
JS-0596-AA Burner Cup air restr ring 9/32" 45LP, NG
JS-0596-XX Burner Cup air rest ring 0.375 60LP,60-200NG
JS-0597-XY Burner Cup air rest ring 175-S 175 LP
JS-0597-XX Burner Cup air rest ring 0.500 80-200LP
5
MAIN BURNER ORIFICE
JS-0748-DM Gas orifice low intensity HR 48 DMS 45 LP
JS-0730-DM Gas orifice low intensity HR 30 DMS 45 NG
JS-0742-DM Gas orifice low intensity HR 42 DMS 60 LP
JS-0725-DM Gas orifice low intensity HR 25 DMS 60 NG
JS-0736-DM Gas orifice low intensity HR 36 DMS 80 LP
JS-0718-DM Gas orifice low intensity HR 18 DMS 80 NG
JS-0731-DM Gas orifice low intensity HR 31 DMS 100, 110 LP
JS-0752-MM Gas orifice low intensity HR 5.2 mm 100, 110 NG
JS-0729-DM Gas orifice low intensity HR 29 DMS 130 LP
JS-0758-MM Gas orifice low intensity HR 5.8 mm 130 NG
JS-0714-IN Gas orifice low intensity HR 9/64 inch 155 LP
JS-0725-IN Gas orifice low intensity HR 1/4 inch 155 NG
JS-0724-DM Gas orifice low intensity HR 24 DMS 175 LP
JS-0767-MM Gas orifice low intensity HR 6.7 mm 175 NG
JS-0719-DM Gas orifice low intensity HR 19 DMS 200 LP
JS-0730-IN Gas orifice low intensity HR 19/64 inch 200 NG
6
BURNER CHAMBER
JS-0504-XX
Burner Chamber
7
EQUALIZER PLATE
JS-0593-XL
Outlet equalizer plate 45 LP - 29 Holes 45-LP
