S100-F / ITB-F I&O Manual
IM101230
RD: JAN 2014
RL: 9A
S100 / ITB & S100U / ITBU

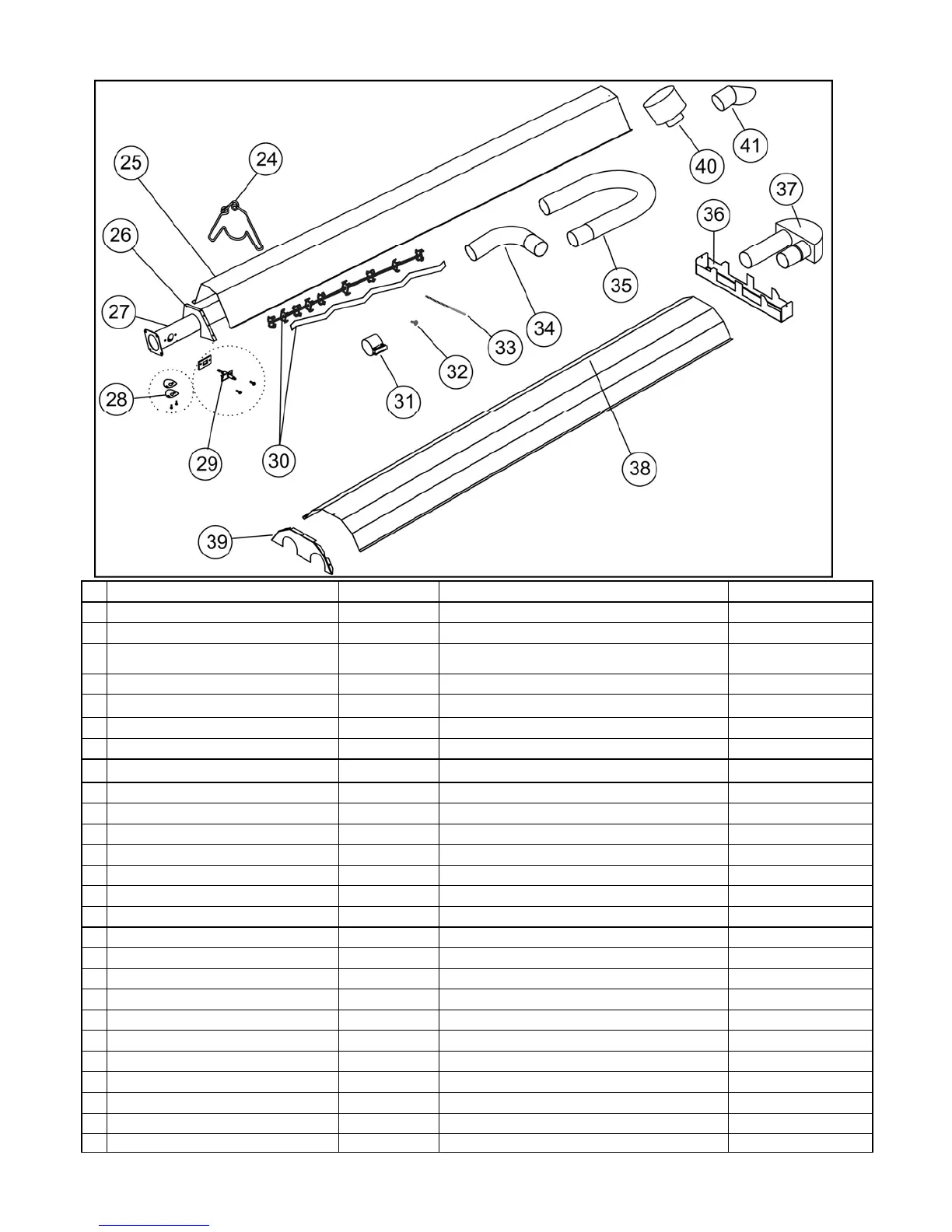

TUBE SYSTEM PARTS
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
24 WIRE HANGER
JS-0505-EH Small wire hanger
25 REFLECTOR
JS-0502-EM Reflector (18" x 120")
26 END CAP
JS-0502-ES S100 / ITB series reflector end cap
27 LOW INTENSITY TUBE
JS-0501-SW-P Aluminized tube,flanged,swaged c/w ports 60-155
JS-0501-SW Aluminized tube, 10' with hole for rivet 175-200
JS-0500-SS-P Stainless Steel tube,steel flanged,swaged c/w ports 175-200
JS-0515-SW-P Steel tube 10' swaged
JS-0515-SW-5 Steel tube 5' swaged
28 SIGHT GLASS ASSEMBLY
JS-0536-XX Sight glass assembly tube heater
29 IGNITER KIT
JA-0571-KT Igniter & gasket kit / DSI tube heater
30 TURBULATOR (see Table 4 in Manual)
JS-0534-SS Turbulator 5' (8 Plates) 45 x 10 ft ONLY
JS-0533-SH Turbulator 4'
JS-0533-LG Turbulator 10'
31 COUPLER
JA-0516-SW 4" swaged tube coupler torctite
32 RIVET - STAINLESS STEEL
JA-0516-RS 1/4" Stainless Steel Tube Connection Rivet
33 1/4" DRILL BIT
JA-0516-DS 1/4" Drill Bit
34 90° ELBOW 4"
JA-0508-SW 90 degree elbow
35 180° ELBOW 4"
JA-0513-SW 180 degree elbow
36 DOUBLE STEEL HANGER
JS-0505-BU U tube reflector hanger
37 TURN BOX
JS-0513-BU U tube turn around box
38 DOUBLE REFLECTOR
JS-0502-BU Wide reflector 24" x 120"
JS-0502-BU5 Wide reflector 24" x 60"
39 U REFLECTOR END CAP
JS-0502-ND S100 / ITB series "U" reflector end cap
40 OPTIONAL ROOF VENT CAP
JA-0530-XX 4" roof vent cap
41 OPTIONAL ROOF WALL CAP
JA-0528-XX 4" horizontal wall vent terminal
JS-0533-UA Turbulator 2' (Model 155-A) 150,000: 40’, 50’, 20’U
