Appendix
Operation Manual -
SP 30564
revDate

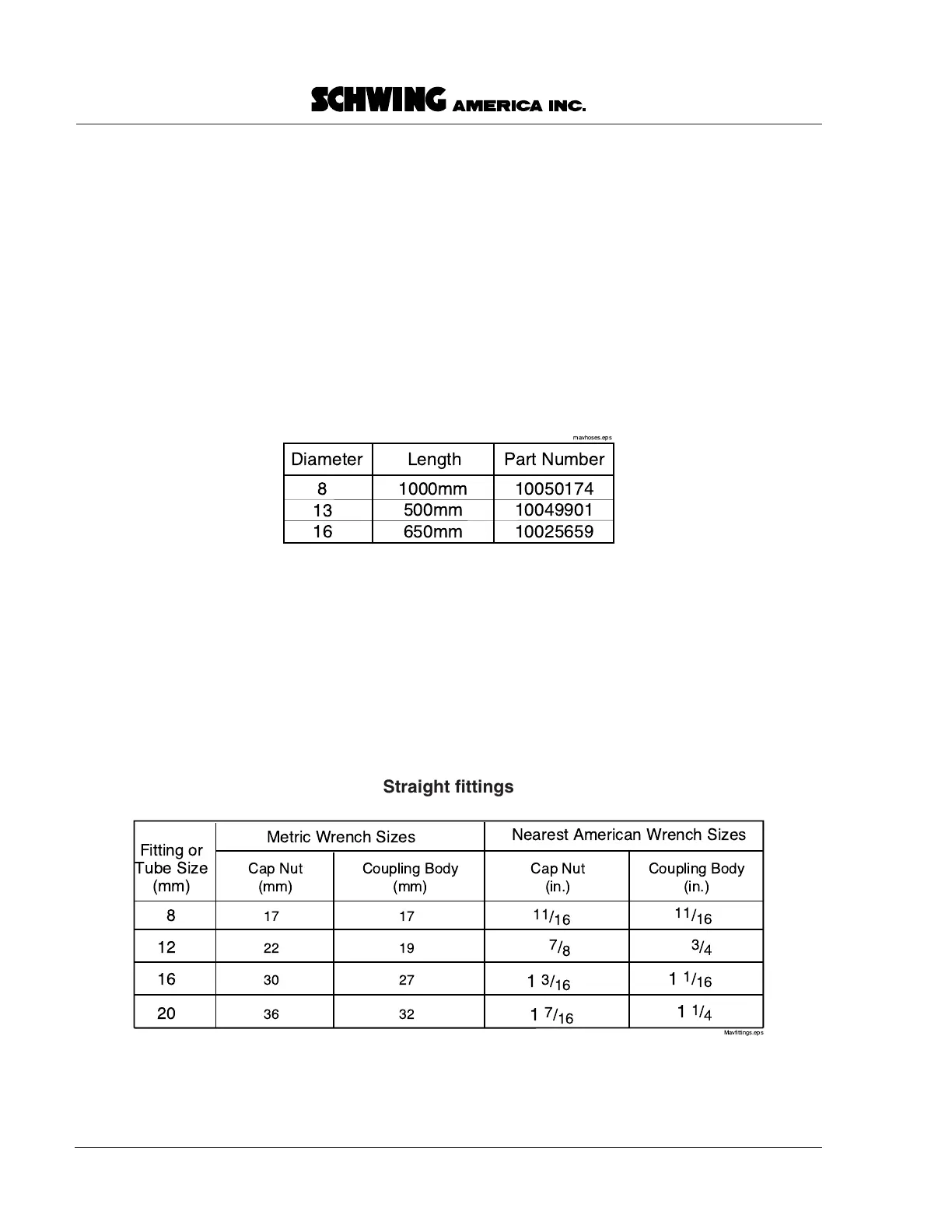

Recommended Emergency
Hose Kit
Schwing recommends that you carry one of each of the
following hoses on the unit in case you blow a hose on
the job. Each size listed represents the longest hose of
each diameter that is installed on the unit at the factory.
Keep the insides of the hoses clean until they are
needed by capping the ends and using tape to hold the
cap in place. Dirt introduced into your hydraulic
system through the installation of a hose that was not
kept clean will cause a variety of problems in the
operation of the unit.
Fitting Wrench Sizes
This chart is provided as an aid to selecting the proper
wrench to hold or tighten the hydraulic fittings on
Schwing equipment. Sizes may change, so use this
chart only as a guide.
!
!
"
!
"
#
"
"
!
$
!
"
$
%& '&( )
) *& '&( )
%+,))
Straight fittings
