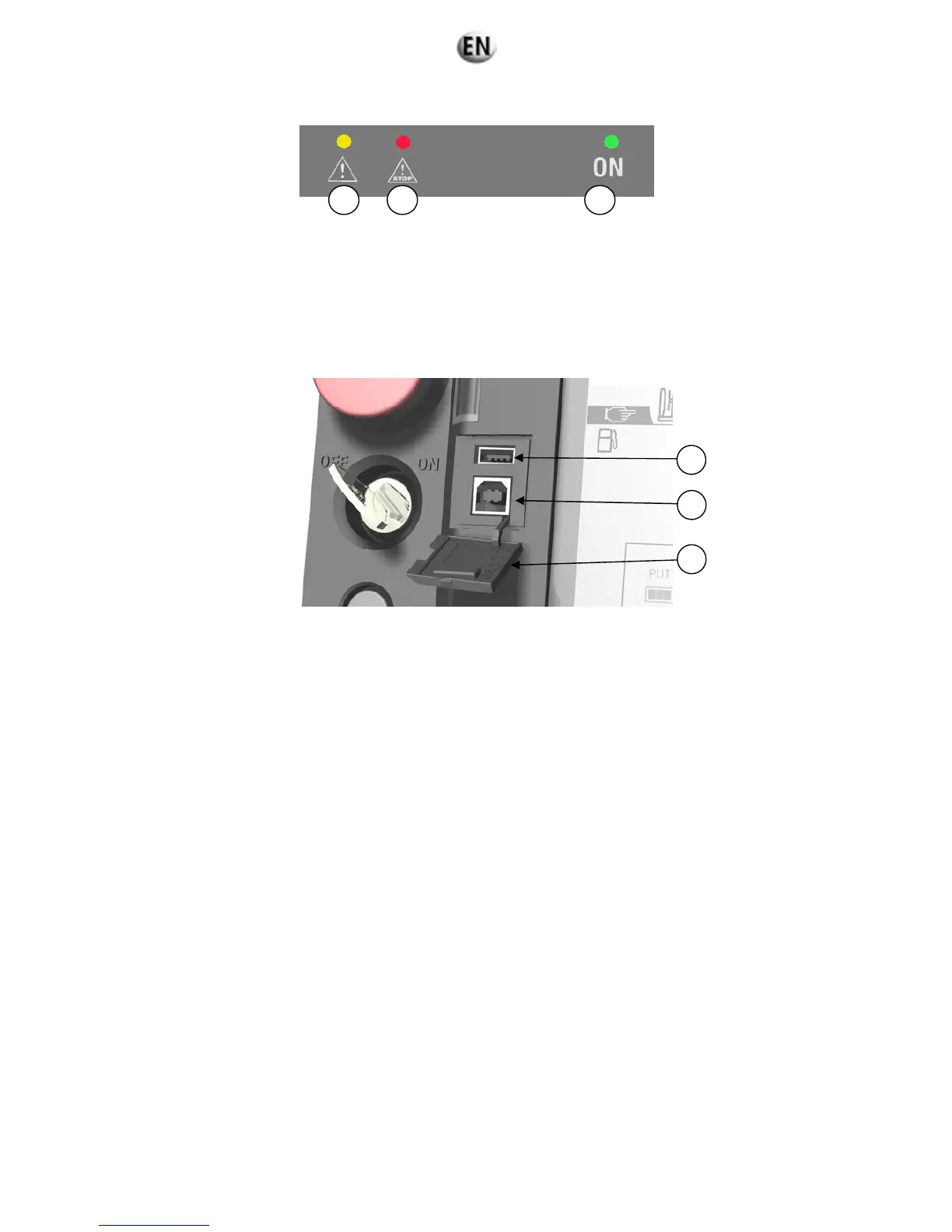

Fig. 6.5 – Description of the LEDs
A lit LED indicates:
1 Alarm activated (flashing yellow).
2 Fault found (flashing red).
3 Module on (green, on continuously).
Fig. 6.6 – Close-up of USB ports
1 USB key connection (HOST): file transfer between USB key and TELYS and vice versa.
2 Connection for microcomputer (DEVICE):
 file transfer between PC and TELYS and vice versa,
 main module power supply.
3 Protective cover.
1 2 3
2
3
1
