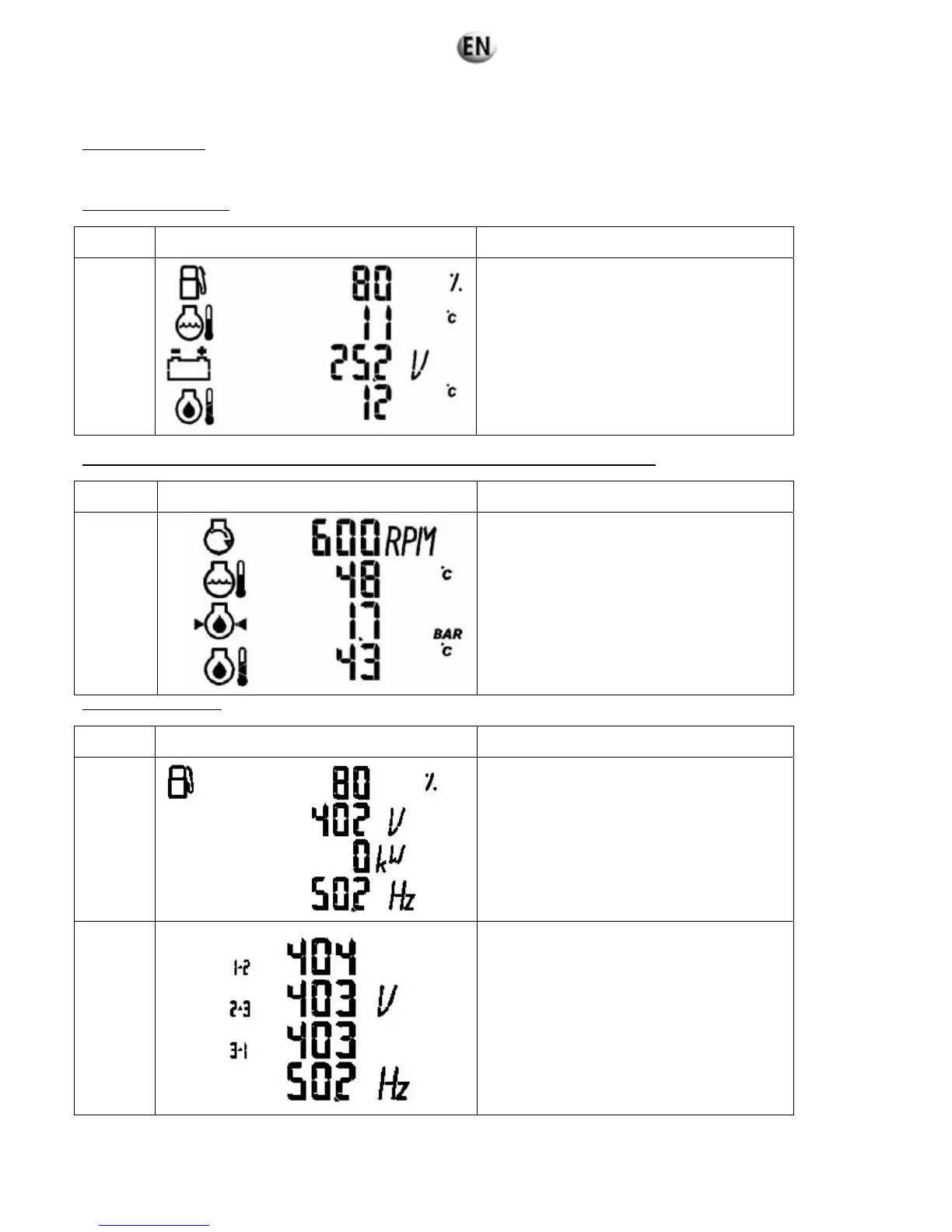

6.3.1.5. Description of the pictograms in zone 3
Pictograms in zone 3
All the pictograms in these zones are activated when TELYS is initialised. The pictograms below are given as examples.
Generating set stopped
Screen
no.
Pictograms Data displayed
P1
Fuel Level Indicator
Indication of Temperature of High Temperature
coolant (HT) (units according to settings menu)
Indication of Battery Voltage
Indication of Oil Temperature (units according to
settings menu)
Generating set start-up or generating set started or generating set switching off in progress
Screen
no.
Pictograms Data displayed
P2
Engine Speed Indication
Indication of Temperature of High Temperature
coolant (units according to settings menu)
Indication of Oil Pressure (units according to
settings)
Indication of Oil Temperature (units according to
settings menu)
Generating set started
Screen
no.
Pictograms Data displayed
P3
Default
screen in
operation
Fuel Level Indicator
Alternator composite Voltage Indicator
Total Active Power Indicator
Alternator Frequency Indicator
P4
U12 Alternator composite Voltage Indicator
U23 Alternator composite Voltage Indicator
U31 Alternator composite Voltage Indicator
Alternator Frequency Indicator
49/202
