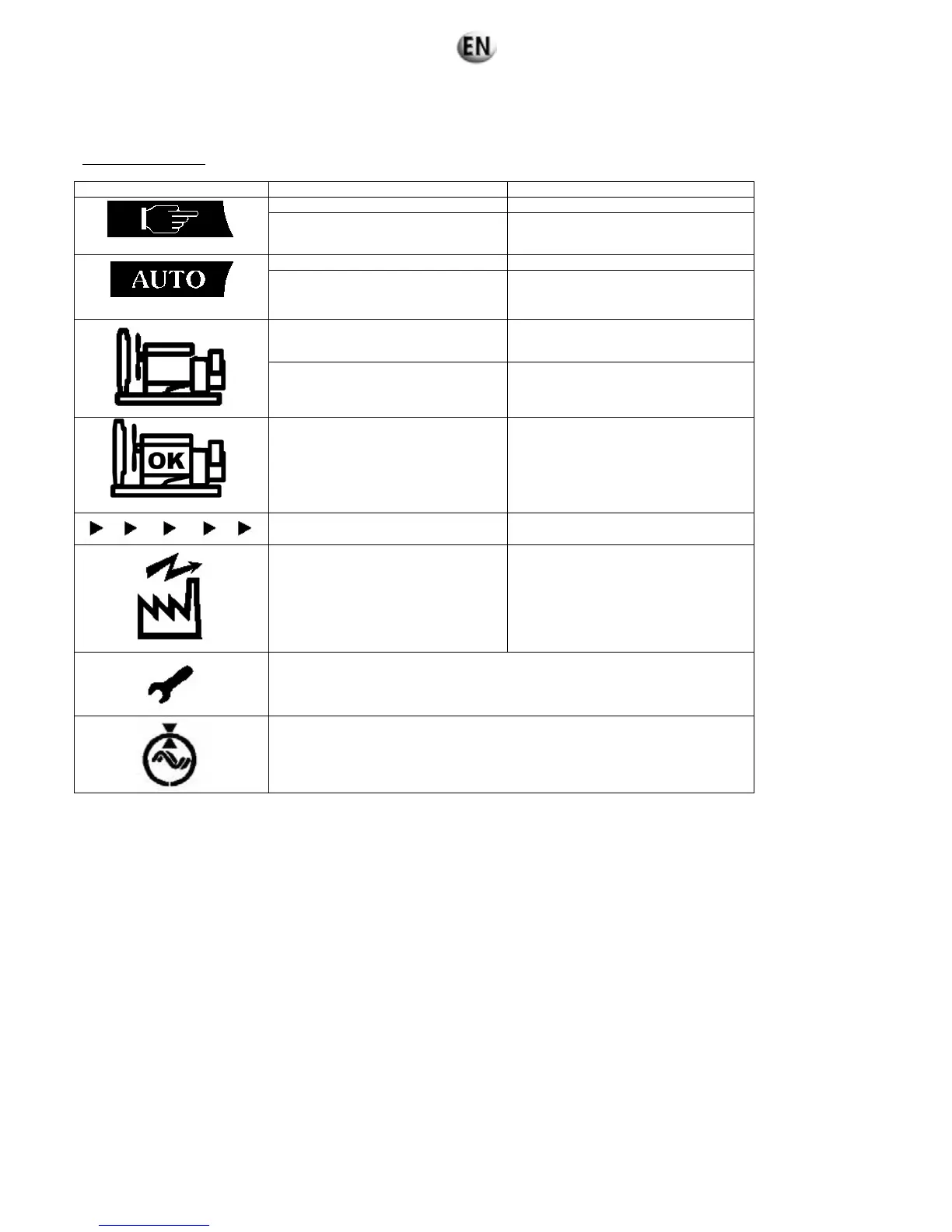

6.3.1.3. Description of the pictograms in zone 1
Pictograms in zone 1
Pictograms Display
A
ctivation conditions
"MANU" Mode
Fixed TELYS in manual mode (MANU)
Flashing
For 5 seconds when switching from
AUTO mode to MANU mode
"AUTO" Mode
Fixed TELYS in automatic mode (AUTO)
Flashing
For 5 seconds when switching from
MANU mode to AUTO mode
Flashing Generating set in start-up phase
Fixed Generating set started
Fixed
Generating set stabilised (voltage and
frequency)
Flashing (appearance of constant
movement from left to right)
The generating set is powering the
installation
Fixed The installation is supplied
Not used
Not used
