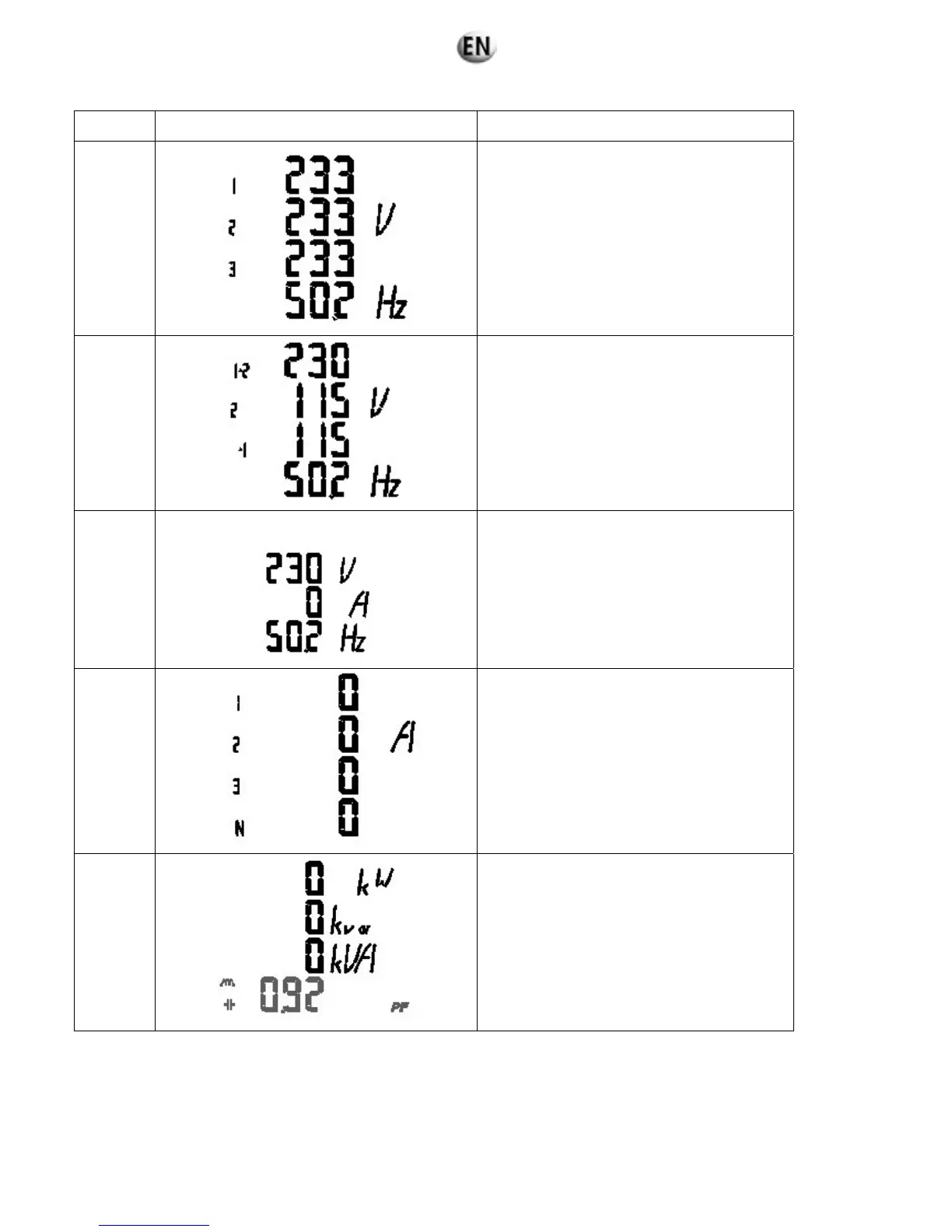

SDMO R44C3 - Page 52

Screen
no.
Pictograms Data displayed
P5
V1 Alternator single Voltage Indicator
V2 Alternator single Voltage Indicator
V3 Alternator single Voltage Indicator
Alternator Frequency Indicator
P6
U12 Alternator composite Voltage Indicator
V2 Alternator single Voltage Indicator
V1 Alternator single Voltage Indicator
Alternator Frequency Indicator
P7
V1 Alternator single Voltage Indicator
Single phase Alternator current indicator
Alternator Frequency Indicator
P8
Single phase Alternator current indicator
Two phase Alternator current indicator
Three phase Alternator current indicator
Neutral Alternator current indicator
P9
Total Active Power Indicator
Total Reactive Power Indicator
Total Effective Power Indicator
Total Power Factor Indicator (lagging or leading)
50/202
