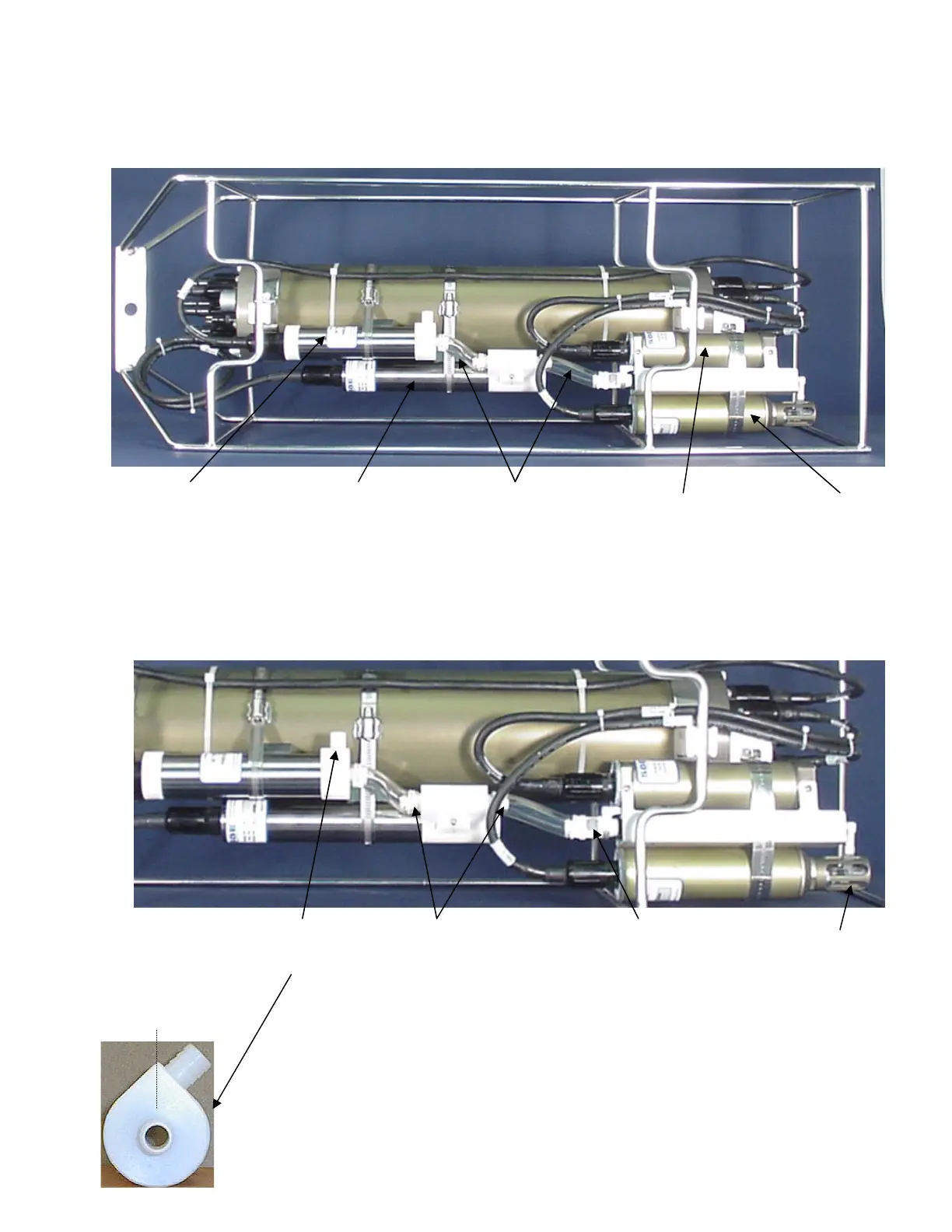

Horizontal Configuration Schematic and Details (continued)
Secure each tubing connection with two cable ties (not shown).
Temperature sensor
Overall View
Conductivity sensor
Pump
(vertically above
DO sensor)
DO sensor
(plenum intake vertically
above conductivity sensor
exhaust)
Tygon
tubing
Details
Slide larger diameter Tygon
tubing over smaller diameter
Tygon tubing to provide tight
seal at DO sensor
Pump exhaust –above DO
sensor and TC Duct intake,
oriented as shown below
TC Duct intake
Quick release
coupling on
conductivity cell
Orient with corner
vertically above
pump intake
231
