11) Fuel Gauge/Low Oil
Level Pilot Lamp and
Beeper

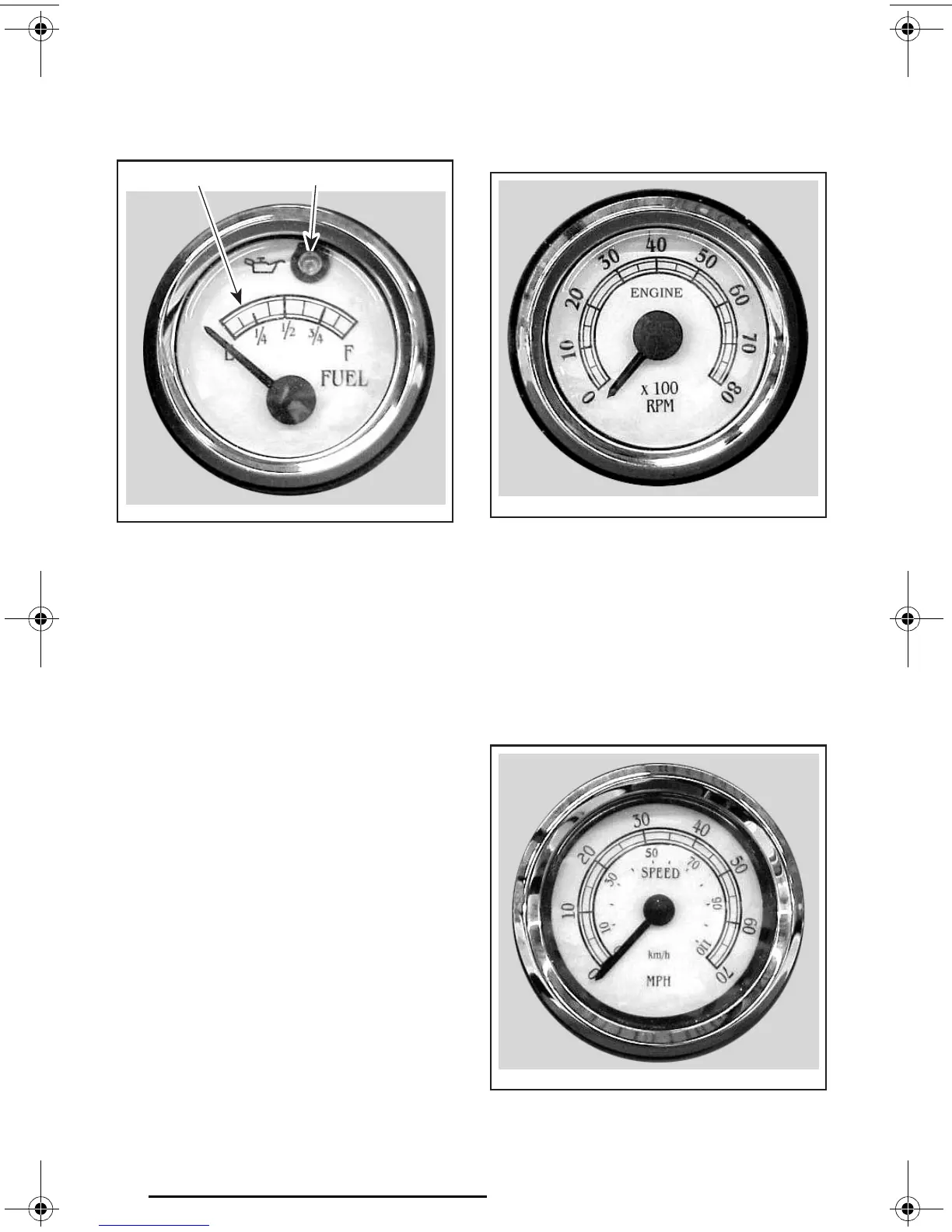

TYPICAL
1. Low injection oil level pilot lamp
2. Fuel level
Fuel Gauge
Located in dashboard, this gauge con-
tinuously indicates the amount of fuel in
fuel tank when engine is running.
The gauge is illuminated whenever the
navigation lights are used.
NOTE: The fuel level can also be veri-
fied without having engine running.
With the safety lanyard removed from
its switch, turn ignition switch to ON
position; the gauge will be activated.
CAUTION: Always turn ignition
switch to OFF position once fuel lev-
el has been checked.
Low Oil Level Pilot Lamp and
Beeper
The pilot lamp and the beeper turn on
when the oil level is low in engine mount-
ed oil reservoir or if a wire/connector of
this electrical circuit is not properly con-
nected. Fill reservoirs as soon as possible
or contact an authorized SEA-DOO sport
boat dealer if light or beeper remain on.
CAUTION: Never run engine out of
oil. Serious engine damage will occur.
12) Tachometer
TYPICAL
The tachometer indicates the revolu-
tions per minute (RPM) of the engine.
Multiply reading by 100 to obtain actu-
al RPM.
The gauge is illuminated whenever the
navigation lights are used.
13) Speedometer
TYPICAL
F10H0LY
12
F10H0MY
F10H0NY
