31) Bow Light
Mandatory red/green light. See LIGHT
SWITCH as mentioned earlier in this
section.
32) Removable Stern Light
Mandatory white stern light.
It is recommended to keep the stern
light in rear seat storage compartment
at all times except when needed.
To remove from storage compartment,
pull it out. Snap in place to store again.
Installation
– Lift connector cap.
– Insert post in connector hole. En-
sure to align hole keyway with post
screw head.
– Firmly push downward to engage
terminals.
– Push lock ring downward. Turn until
locked. It may be necessary to slight-
ly turn it to allow its insertion in the
hole.
– Check light operation. See NAVIGA-
TION LIGHT SWITCH as mentioned
earlier in this section.

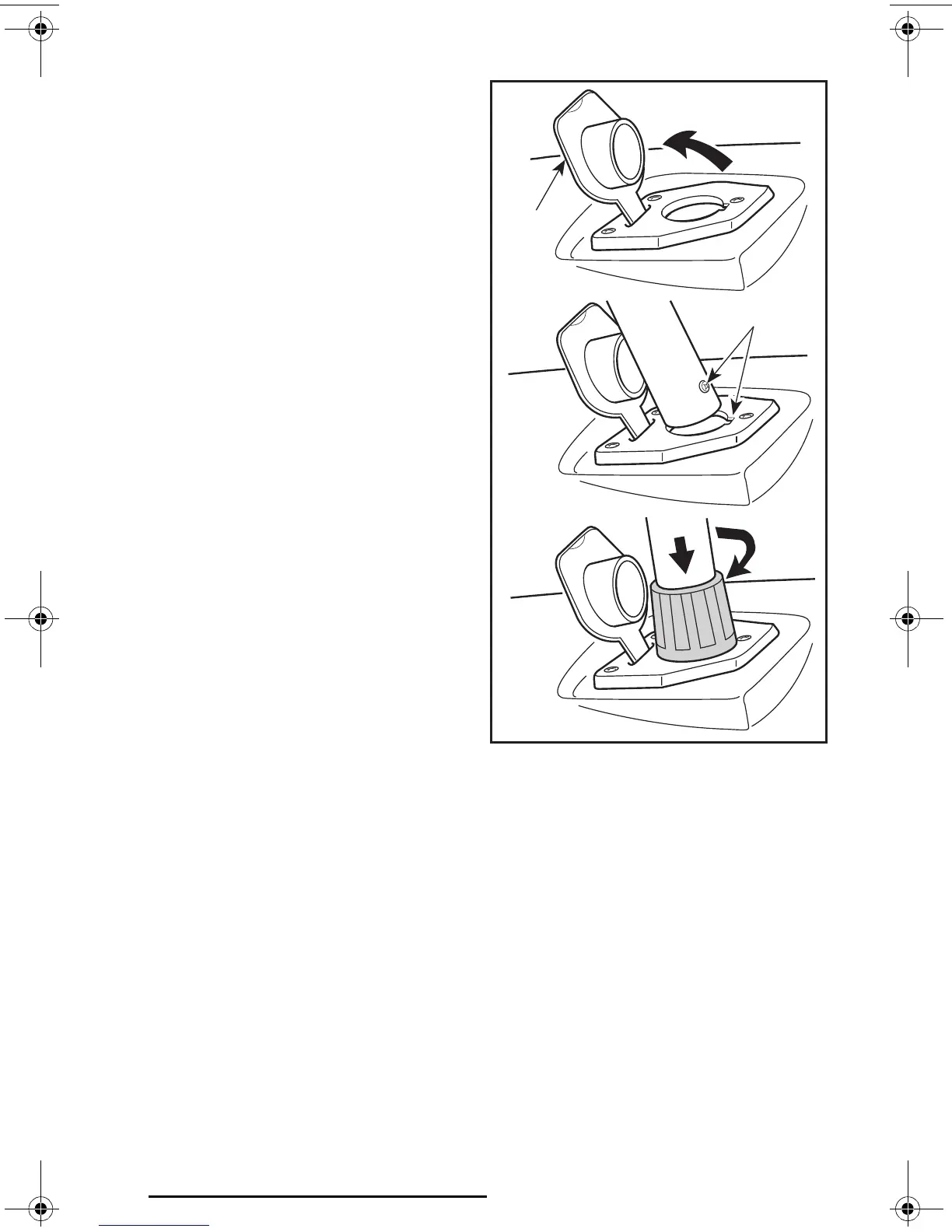

TYPICAL
1. Lift
2. Align screw in groove
3. Push downward
4. Turn to lock
CAUTION: Ensure dielectric grease
is present in connector area of light
to prevent corrosion.
