43
The speedometer indicates the speed
of the boat in miles per hour (MPH) and
kilometers per hour (km/h).
The gauge is illuminated whenever the
navigation lights are used.
A speed sensor mounted on the hull
near M
2
Jet Drive sends the signal to the
speedometer.

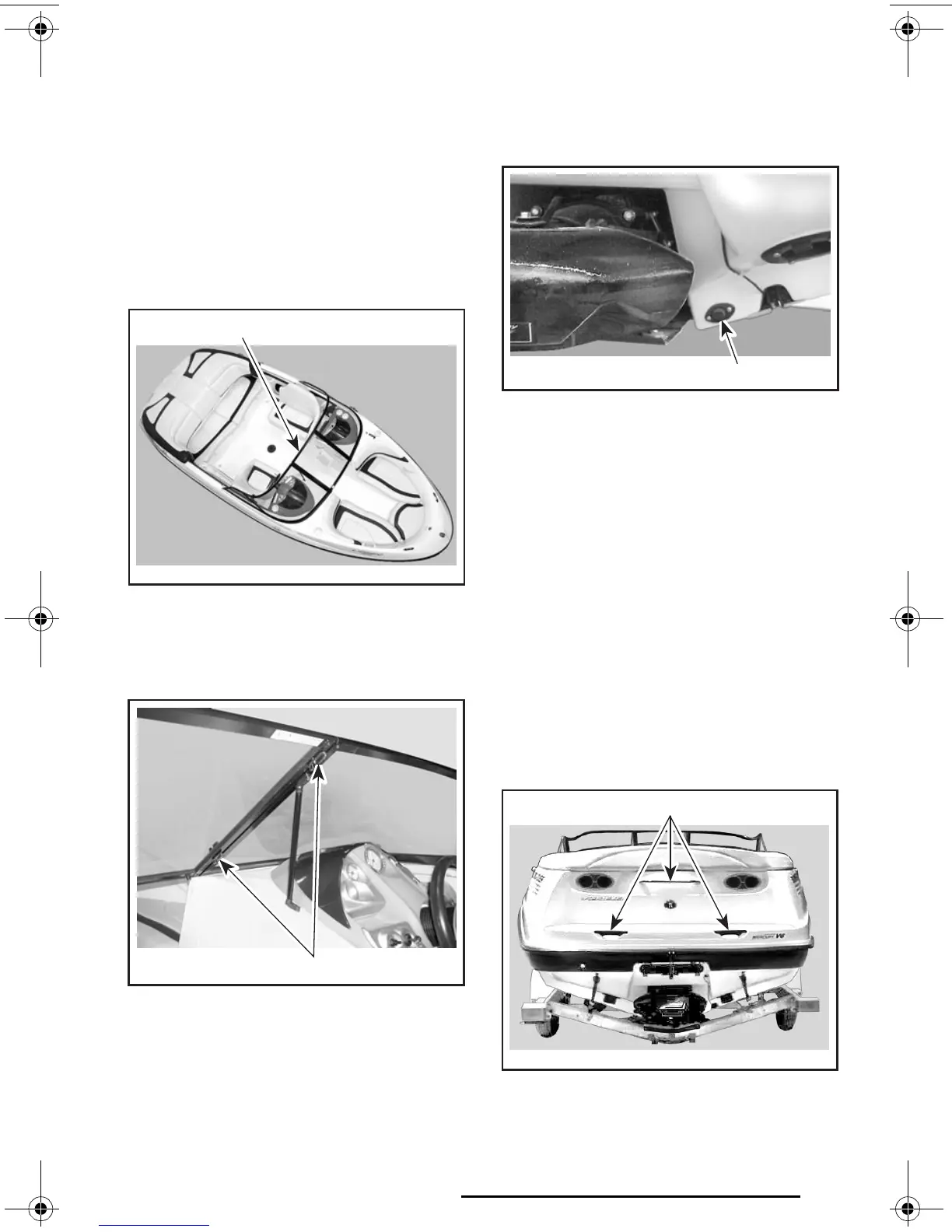

14) Windshield
1. Windshield
To open windshield door, unlock both
latches then open door, as shown in
the following photo.
1. Unlock both latches
15) Bilge Drain Plugs
Any water that is found in the bilge can
be easily drained by unscrewing the
bilge drain plugs.
When on a trailer, block the wheels
and raise the bow slightly with the trail-
er jack (if so equipped) so that the wa-
ter can flow out of the bilge.
TYPICAL
1. Bilge drain plug
16) Grab Handles
Grab handles provide a handhold for
the passengers.
Although grab handles are provided,
never perform maneuvers that place a
passenger or the driver at risk for being
ejected or thrown out of their seat.
CAUTION: Never use the grab han-
dles to pull anything or to lift the boat.
Refer to components location illustra-
tions at the beginning of this section
for grab handles location.
17) Rear Grab Handles
TYPICAL
1. Grab handles
F10L37Y
1
1
F10L3AY
F10L2OY
1
F10L2NY
1
lmo2005-006a_1.book Page 43 Wednesday, July 7, 2004 1:06 PM
