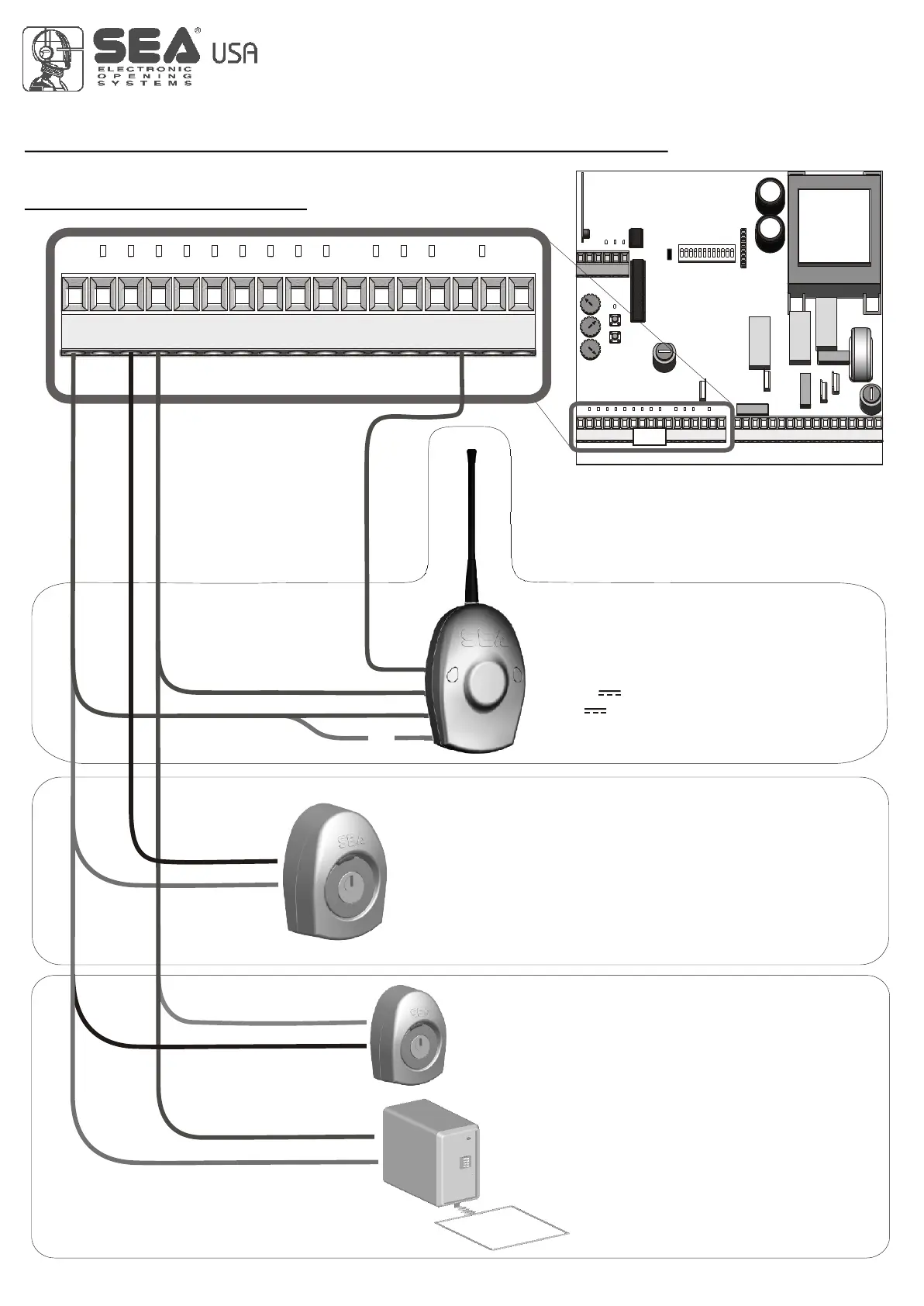

SEA GATE 2 - RADIO AND START BUTTON CONNECTIONS; Radio Receiver Connection; Partial Start Button Connection; General Start Button Connection

10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
Start Button
An impulse given to this entrance commands
the opening/closing of the automation. It can
be given by a key switch, a loop detector, a
keypad, etc.
To connect the supplied devices (for ex. Loop
detector) see the related instructions.
-
+
C
Partial Start
To obtain a partial opening (7 second gate opening) connect the
key-button wires as in the picture. It is possible to connect other
command devices (push button board, radio receiver, keypad).
Note1: the contact for the partial opening is a N.O. Contac
(Normally opened)
Note2: the partial opening will be always executed on the M1 motor.
Com
GATE 2
RADIO RECEIVER, START BUTTON
CONNECTIONS
1
1
4
15
1
3
1
4
1
4
CN2
10
International registered trademark n. 2.777.971
REV 05 - 10/2010
Connection of a radio receiver
This connection allows to command the total
opening/closing of the automation. For the
receiver connection make reference to the
related instruction manual.
+ = 24V ,
- = 0V ,
C = Contact
Com = Common
