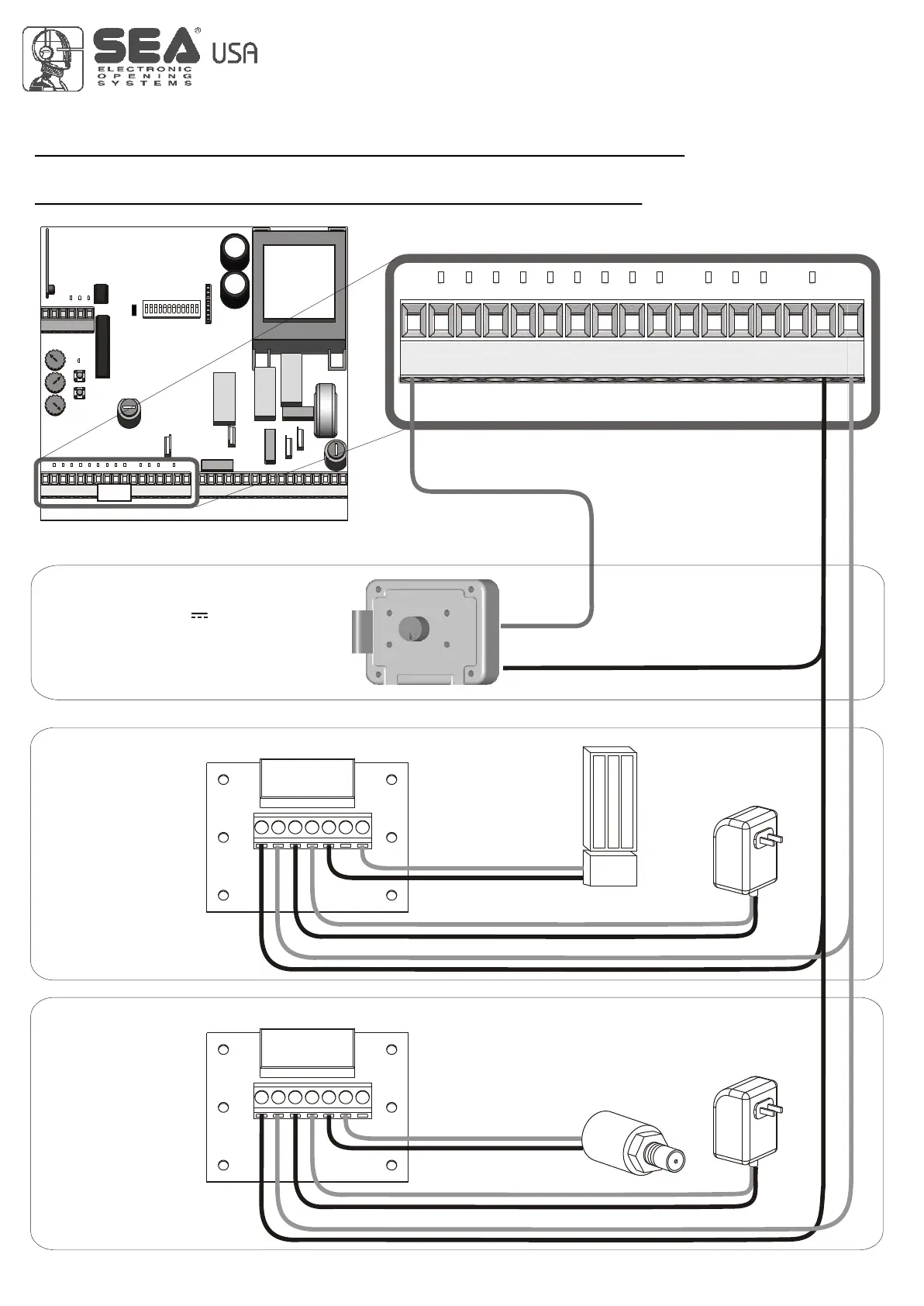

SEA GATE 2 - LOCK CONNECTIONS; Electric Lock Exit Connection; Magnetic Lock Wiring; Solenoid Lock Wiring

10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
CN2
-
GATE 2
ELECTRIC LOCK, MAGNETIC LOCK
SOLENOID LOCK CONNECTIONS
16
1
1 2 3 4 5 6 7
-
Magnetic Lock wiring
16
17
Magnetic Lock
Power for
Magnetic Lock
N.C.
1 2 3 4 5 6 7
Solenoid Lock wiring
16
17
Solenoid Lock
Power for
Solenoid Lock
N.O.
The Power Supply is not provided.
The Power Supply is not provided.
optional board
optional board
12
International registered trademark n. 2.777.971
REV 05 - 10/2010
Electric lock exit
An electric lock of 12V or of 24 Vdc 15W
max can be connected .The electric lock
activates at every opening cycle for about
1,5 s.
