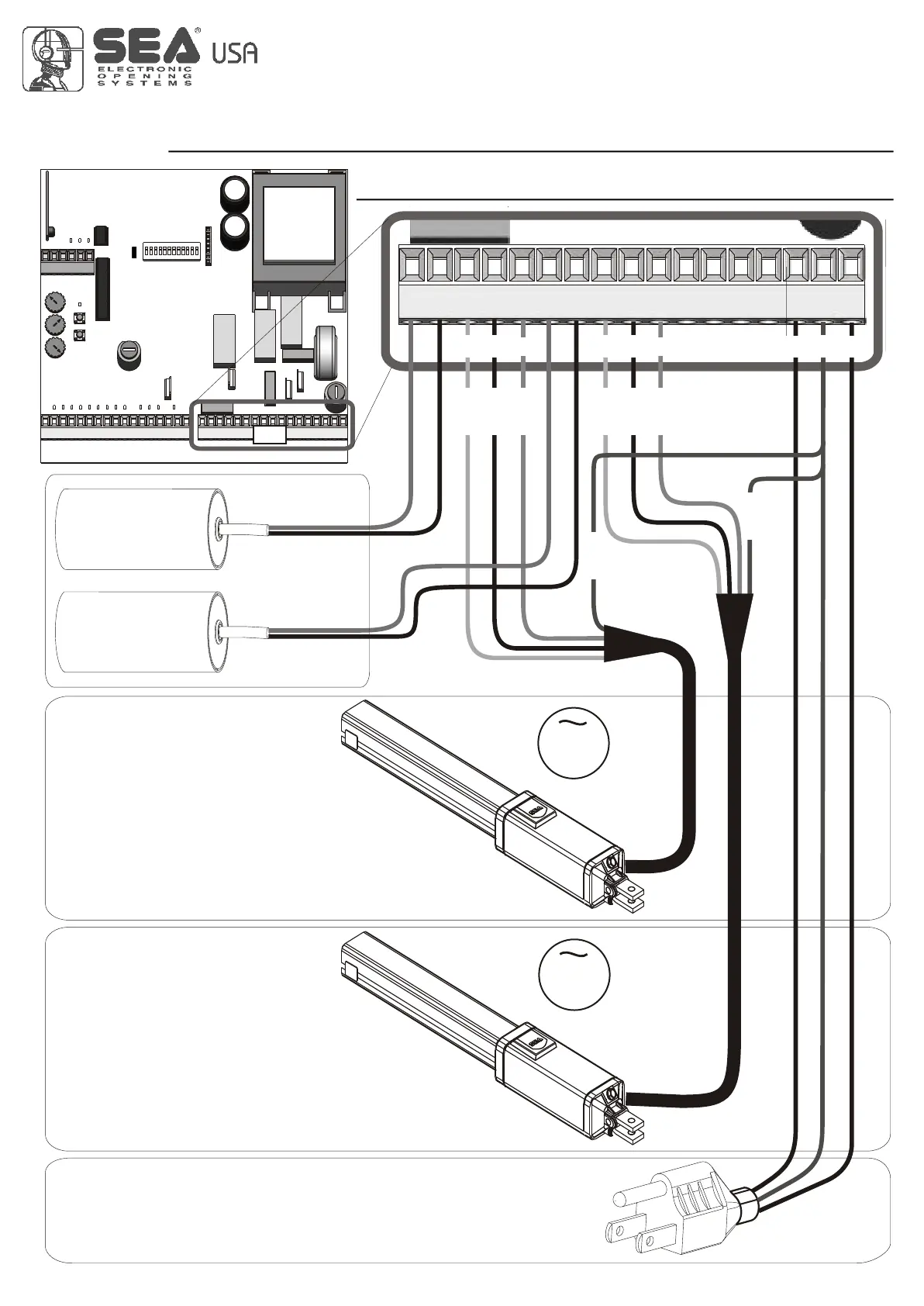

SEA GATE 2 - HYDRAULIC MOTOR CONNECTIONS; Motor 2 Connection Details; Motor 1 Connection Details; Capacitor Connections

CN3
10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
Example
Motor 1
Output for Motor 1 connection
M = OPEN/CLOSED
Com = COMMON
Motor 2
Output for Motor 2 connection
M = OPEN/CLOSED
Com = COMMON
M1
M2
Capacitor 1
Capacitor 2
Com
PGN
Example
Power input
Input for the connection of the electric power.
P = PHASE
N = NEUTRAL
G = GROUND
NOTICE: for the connection to the
electric power see the law in force.
M M
GATE 2
HYDRAULIC MOTORS, POWER SUPPLY,
CAPACITORS CONNECTIONS
2
1
7
6
3 4 5
16
8
9
10
16
16 1715
Com
M M
14
White White Black Black
Green
Green
Violet Violet
