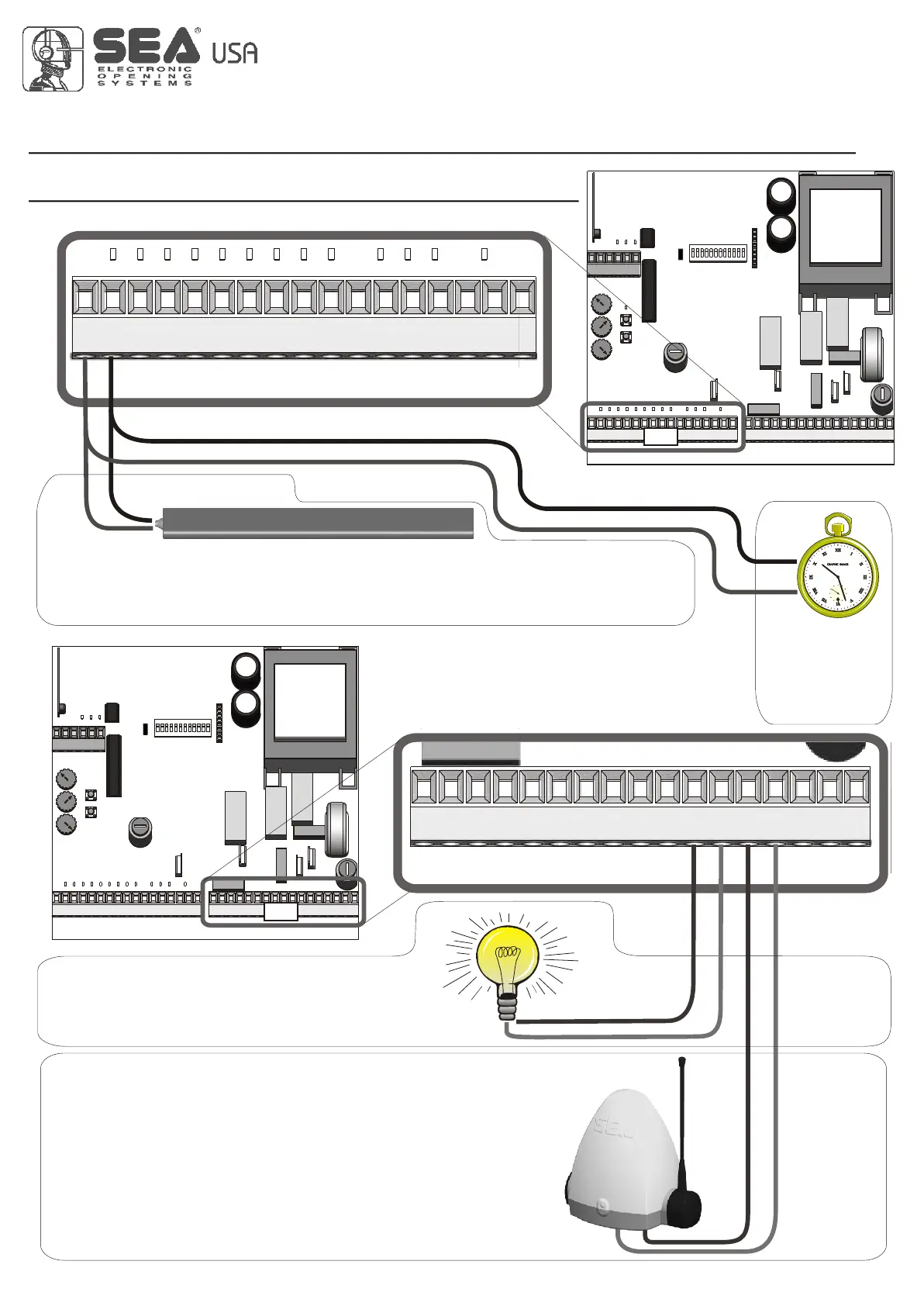

SEA GATE 2 - ACCESSORY CONNECTIONS; Safety Edge Input Connection; Timer Connection; Courtesy Light Connection

CN3
10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
-
A further safety can be obtained making a connection with the safety edge mentioned on the side.
If it is start up, the safety edge reverses the movement of the gate for two seconds and it stops.
To use the safety edge, place dip-switches 3 on OFF.
Notice: if the safety input is not used, make a Jumper between 1 and 2 .
Safety edge input
Timer
Flashing Lamp (115V)
The flashing lamp is an important accessory which warns the
gate operating.
To connect it, connect the wires of the flashing lamp as in the
picture.
It is possible to activate a pre-flashing of 3 seconds before
activating the automation placing Dip 5 on ON.
Notice: The warning lamp gives the same warning signals
as the LED 12 described in pag. 9
Courtesy Light (115V max 100W)
During the working phase, courtesy light stays switched on.
Note: With the Palm it is possible to modify this time from
15 to 240 s.
GATE 2
SAFETY EDGE, FLASHING LAMP, COURTESY
LIGHT, TIMER CONNECTIONS
1
2
1 2
12
11
13 14
CN2
13
International registered trademark n. 2.777.971
With DIP3 on ON it is
possible to connect a
timer. The Timer
executes the timed
opening and keeps the
gate open for the
whole adjusted time.
