SEA GATE 2 - TRIMMER ADJUSTMENTS AND LED INDICATORS; Operating Torque Adjustment (Rv1); Brake and Pause Time Adjustments (Rv2, Rv3); LED Status Descriptions

LED1 (AUX INPUT)
LED2 (PARTIAL START)
It must be usually switched off and it must switch on when an partial opening control is given.
LED3 (START)
It must be usually switched off and it must switch on when an opening control is given.
LED4 and LED5 (CLOSING LIMIT SWITCH MOTOR 2) / (OPENING LIMIT SWITCH MOTOR 2)
LED6 and LED7 (CLOSING LIMIT SWITCH MOTOR 1) / (OPENING LIMIT SWITCH MOTOR 1)
They must be usually switched on and they must switch off when the limit switches are started up.
LED8 and LED9 (PHOTOCELL 2) and (PHOTOCELL 1)
It must be usually switched on and it must switch off when the photocell is darkened.
LED10 (24V AUX POWER SUPPLY)
LED11 (TX PHOTOCELL POWER SUPPLY)
LED12 (TROUBLESHOOTING LED)
If the automation stops to work, the Troubleshooting LED will indicate which safety caused the event through many different flashing spaced
out by a second pause.
1 flash = PHOTOCELLS
2 flashes = SAFETY EDGE
3 flashes = ENCODER (reversing sensor)
4 flashes = STOP
5 flashes = PHOTOCELL SELF-TESTING
6 flashes = TRIAC TEST
The flashing sequence will be repeated even on the flashing lamp for 15 seconds.
LED13 (ELECTRIC LOCK)
LED14 and LED15 (ENCODER2) and (ENCODER 1)
LED16 (STOP)
It must be usually switched on and it must switch off when a STOP control is given.
LEDP (Programming)
Rv1
Rv2
Rv3
OPERATING TORQUE ADJUSTMENT
This trimmer is used to adjust the motor torque. This
adjustment is essential for operators without
mechanical or hydraulic anti-crush devices and must
be carried out so that there is no risk of people or
objects being crushed. It must always be executed in
accordance with current legislation on the subject.
BRAKE (slow-down) LENGTH
ADJUSTMENT
This trimmer is used to adjust the length of the slow-
down.
PAUSE LENGTH ADJUSTMENT
This trimmer allows the PAUSE time to be adjusted
between 0 and 120 seconds.
Set DIP SWITCH 6 to the ON position to enable
automatic closing.
P.N.: TURNING THE TRIMMERS CLOCKWISE
INCREASES THE TIMES/VALUES
+
-

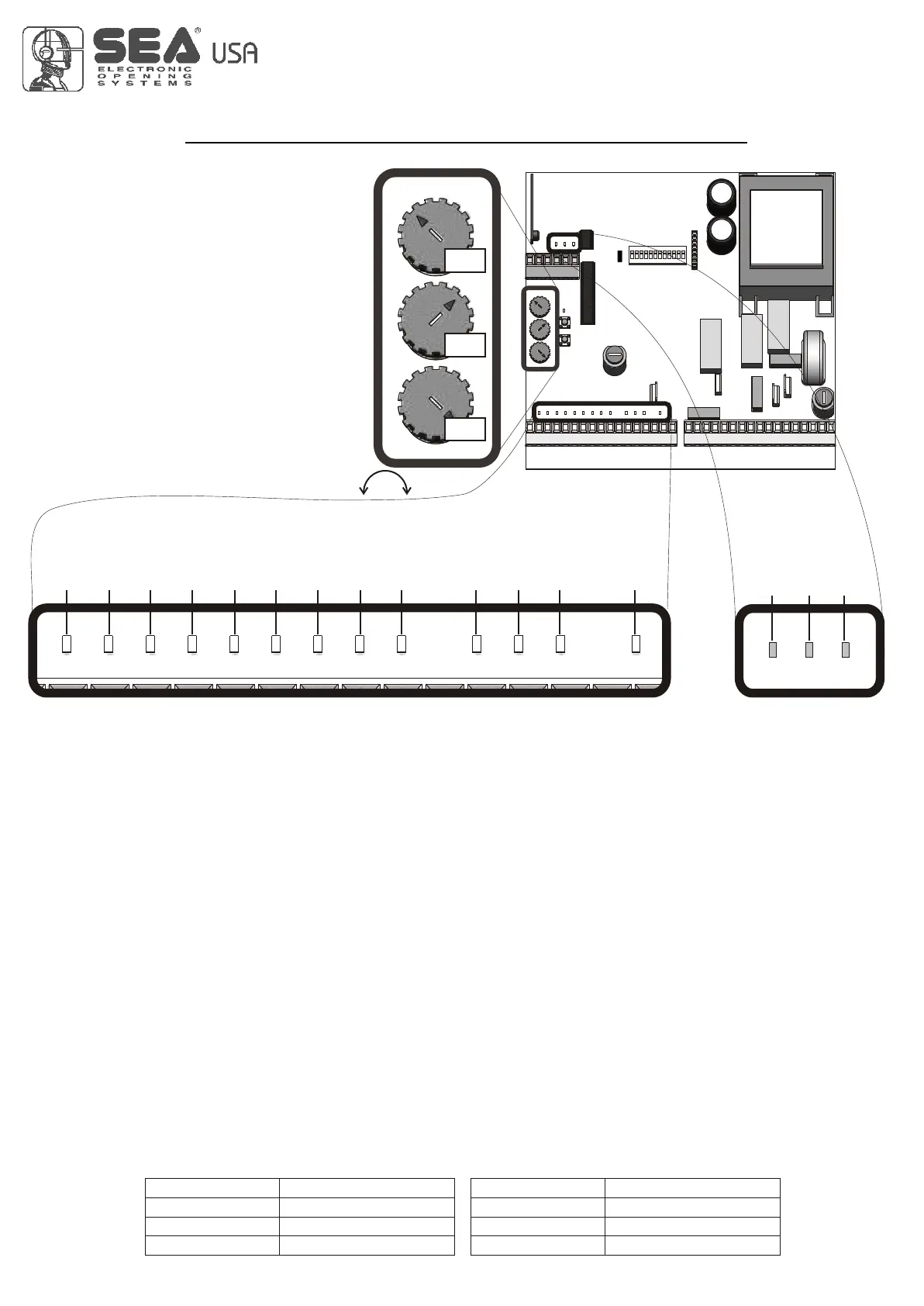

GATE 2
TRIMMER REGULATION, LEDS
Rv1
Rv2
Rv3
+-
+-
+-
LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13
LED14 LED15 LED16
9
International registered trademark n. 2.777.971
Number of lightning
1
2
3
The sequence of lightning, intervals of pause, are shown on the flashlight (for ca. 20 sec.) and on the control lamp (until a new START).
ALARM INDICATION BOARD ON CONTROL UNITS GATE
Number of lightning
4
5
6
Type of alarm
Stop
Photocell self-testing
Triac test
Type of alarm
Photocell
Safety edge
Encoder
REV 05 - 10/2010
