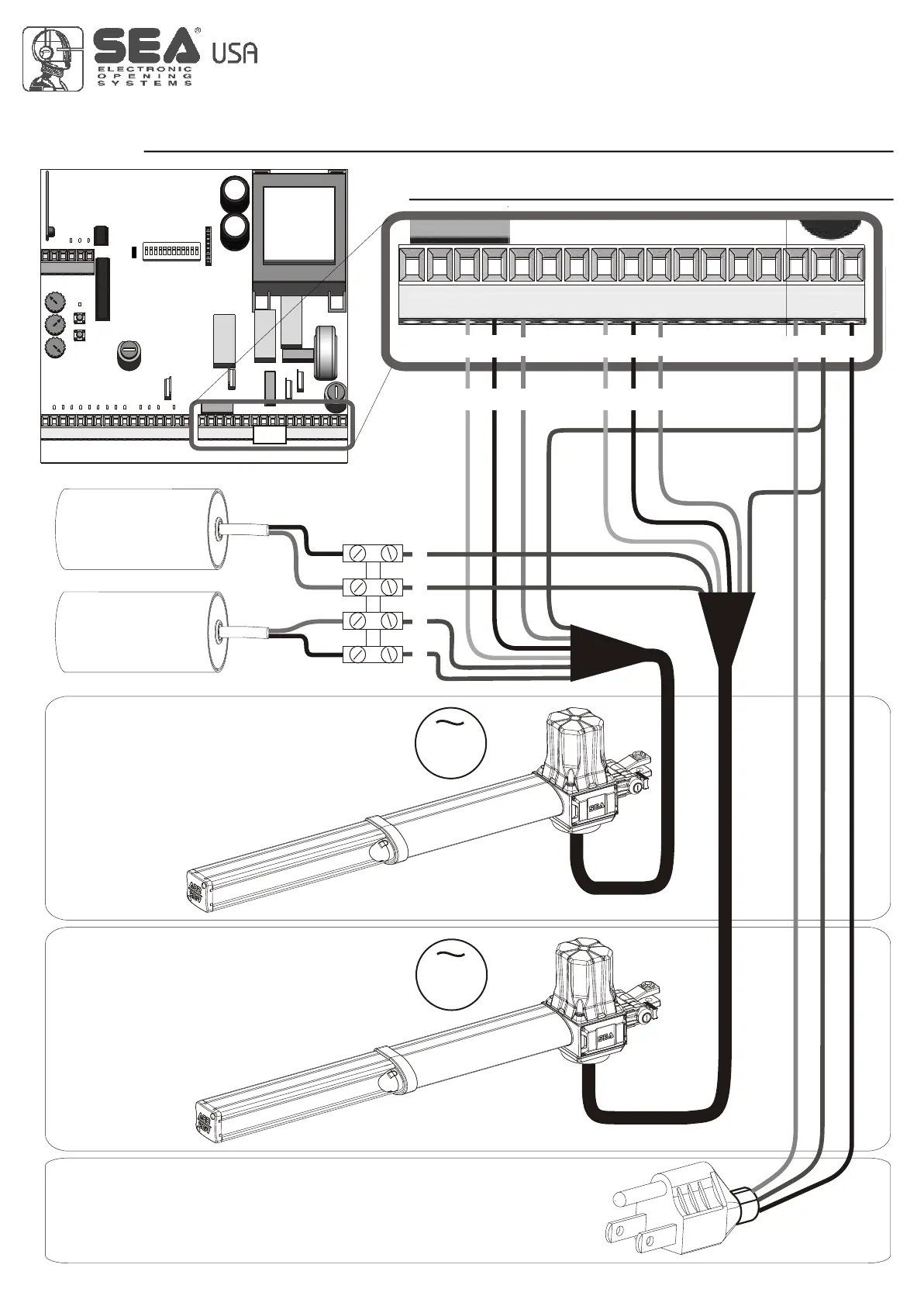

SEA GATE 2 - ALPHA MOTOR CONNECTIONS; Motor 2 Connection for ALPHA; Motor 1 Connection for ALPHA; Capacitor and Power Supply for ALPHA

CN3
10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
GATE 2
MOTORS, CAPACITORS, POWER SUPPLY
CONNECTIONS for ALPHA
15
Motor 1
Output for Motor 1 connection
M = OPEN/CLOSED
Com = COMMON
Motor 2
Output for Motor 2 connection
M = OPEN/CLOSED
Com = COMMON
M1
M2
Capacitor 1
Capacitor 2
ALPHA
ALPHA
Power input
Input for the connection of the electric power.
P = PHASE
N = NEUTRAL
G = GROUND
NOTICE: for the connection to the
electric power see the law in force.
4
5
5
4
1 12 23 3
Com
GNM M
Com
M M P
16 1715
International registered trademark n. 2.777.971
REV 05 - 10/2010
