Figure 4: Terminal connections

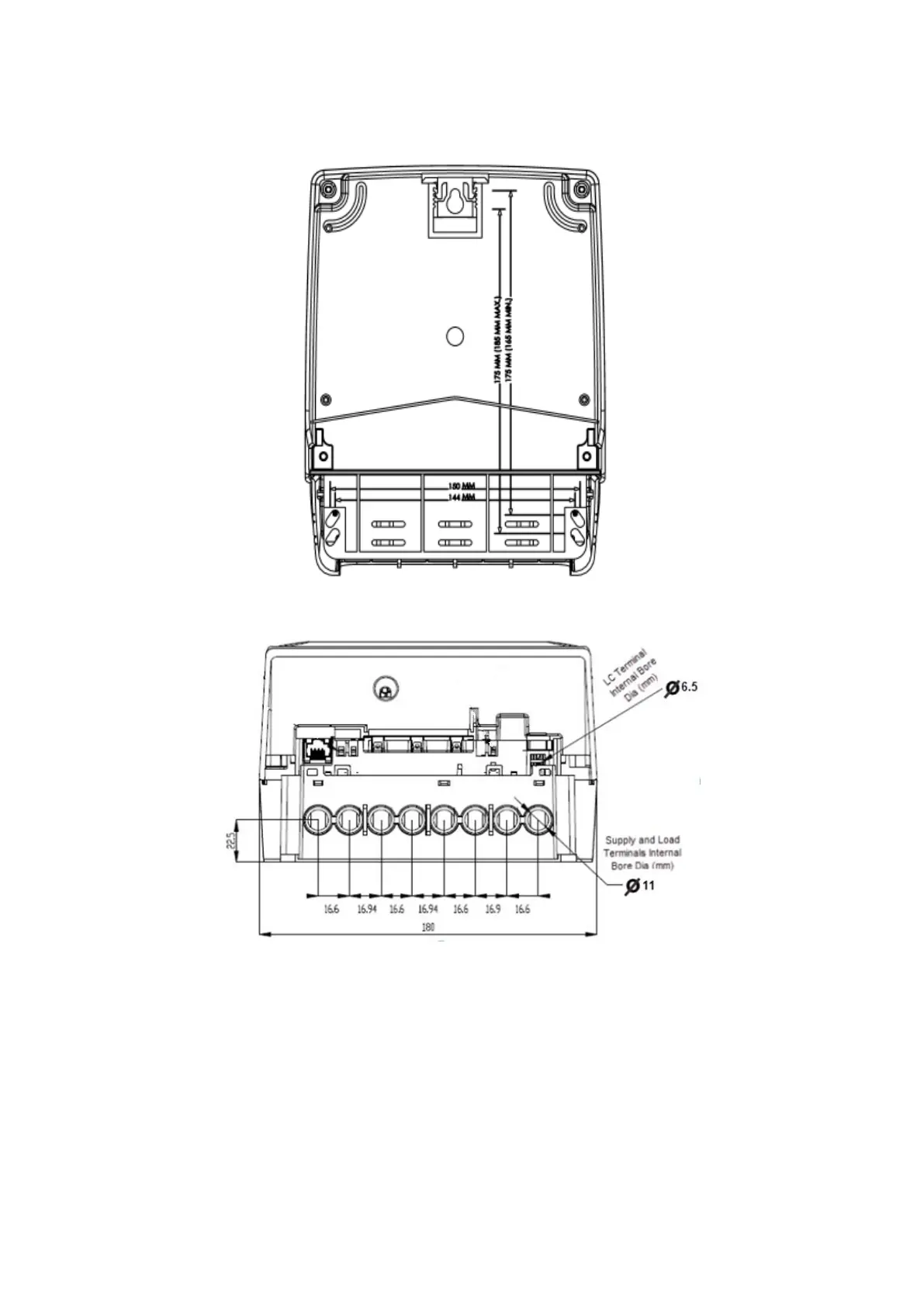

Sprint 211 supports various mounting options which include arrangements to substitute any currently installed
meters too. The figure below displays the rear view fixing dimensions in mm.
BGX701-160-R01
Sprint 211 Installation Manual Page 19 of 48
