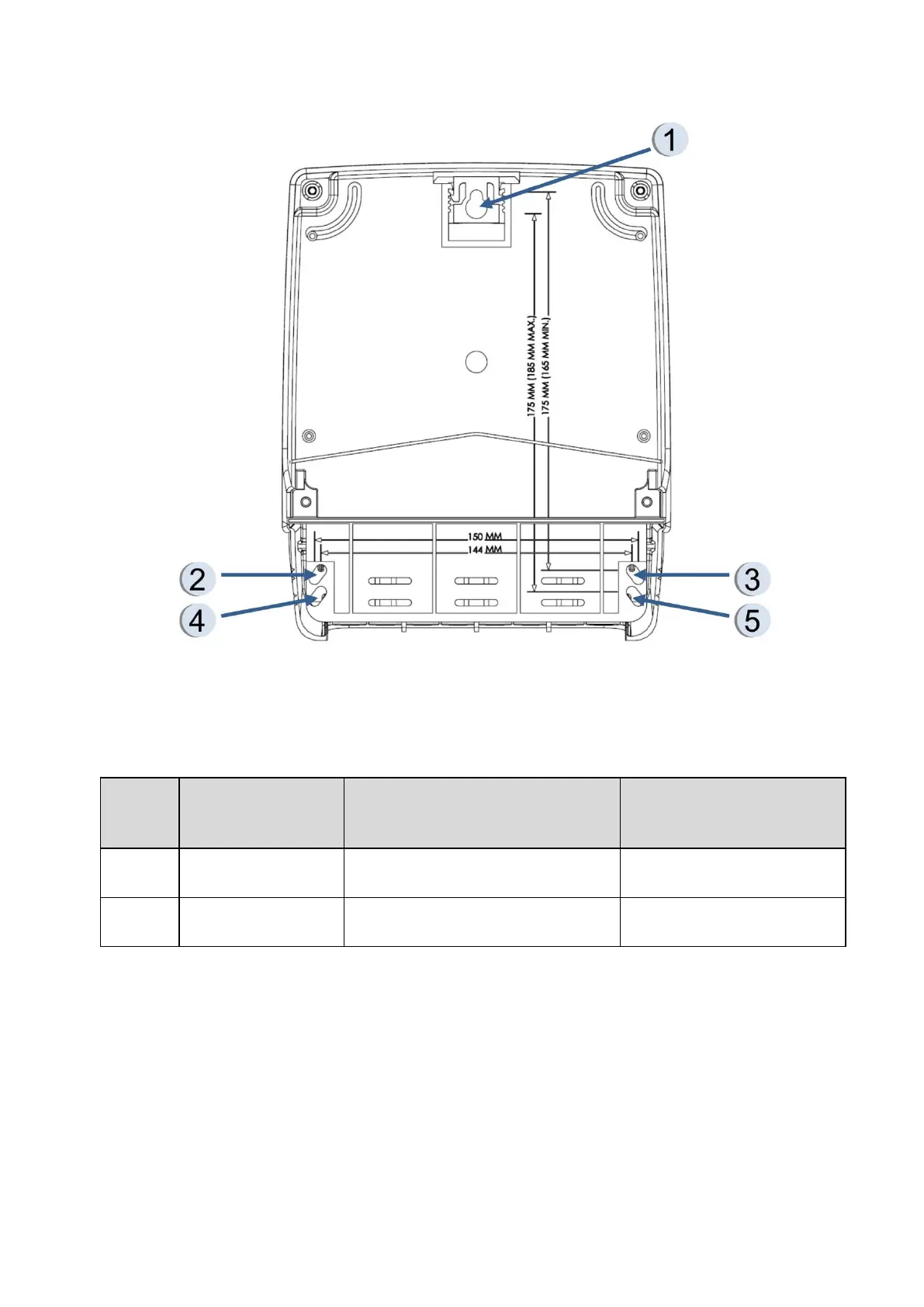

Figure 5: Dimensions and Mounting Details
All the possible mounting options are described in the table below:
Table 2: Sprint 211 Mounting measurements
Options
Mounting
arrangement holes
Vertical distance (mm)
Horizontal distance (mm)
Option 1
1, 2, 3 165 144
Option 2
1, 4, 5 175 144
