Section 7: Valve Maintenance
MAX Valve Repair and Replacement

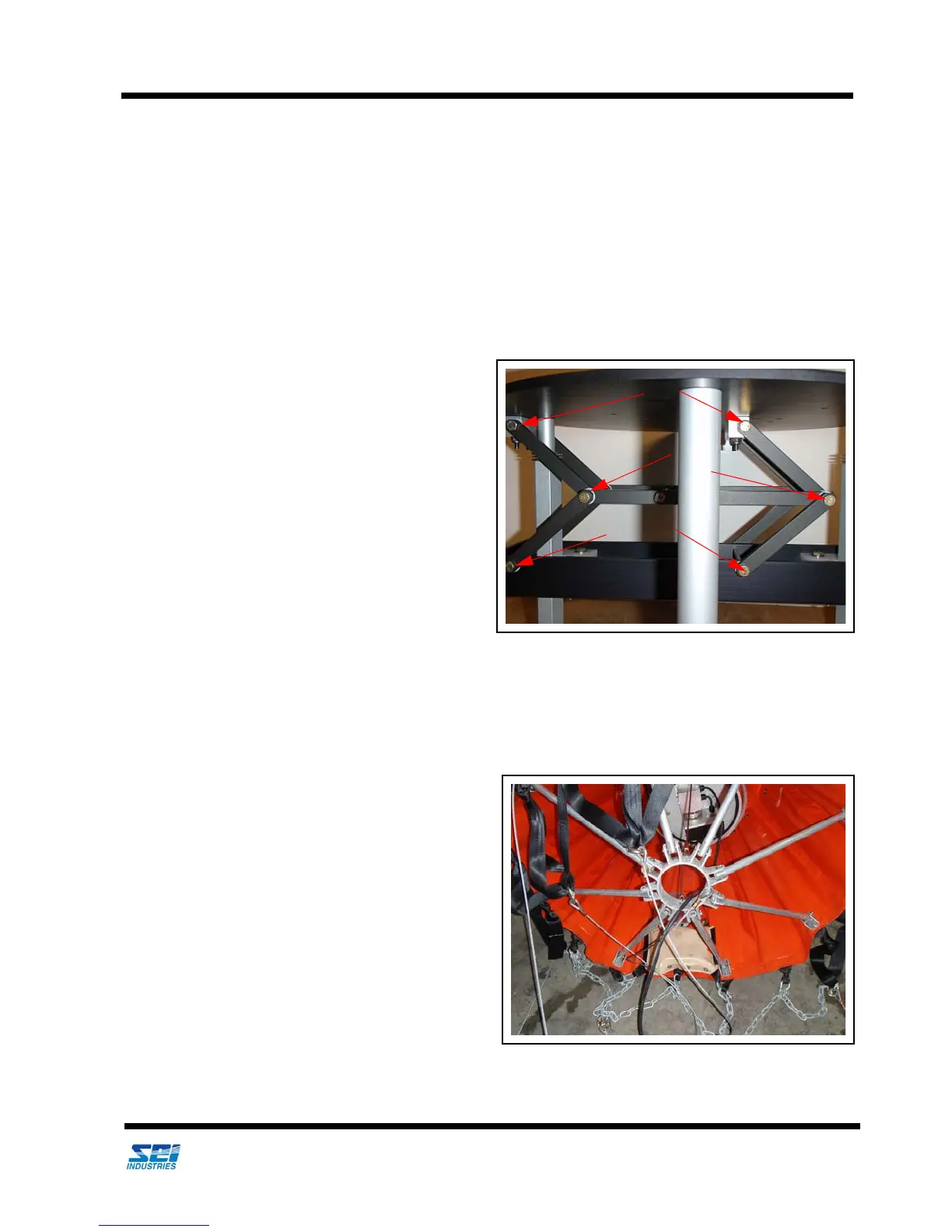

Linkage Adjustment
If excessive side movement develops in the linkage,
the bolts (with arrows) must be tightened. Do not
overtighten these bolts as they must be turned with
only a small amount of force. Once tightened, try to
move the linkage from side to side. There should be
no movement.
Valve Removal
Whenever any valve maintenance, such as seal changes or maintenance on the valve cycling, has to be done,
we recommend that you remove the valve from the Bambi Max shell. To remove the valve, follow the steps
listed below. Tools required: ratchet and 9/16" socket, side cutter.
1. Make sure that the ballast is on the bottom of
the shell before removing the valve. Detach
the power cable from the head and IDS
deployment cable, coil the cable into an 18"
coil and place it inside the top of the shell.
