SEI Industries BAMBI MAX User Manual

Section 10: Specifications and Parts
Parts Listings
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 80
We Engineer Solutions

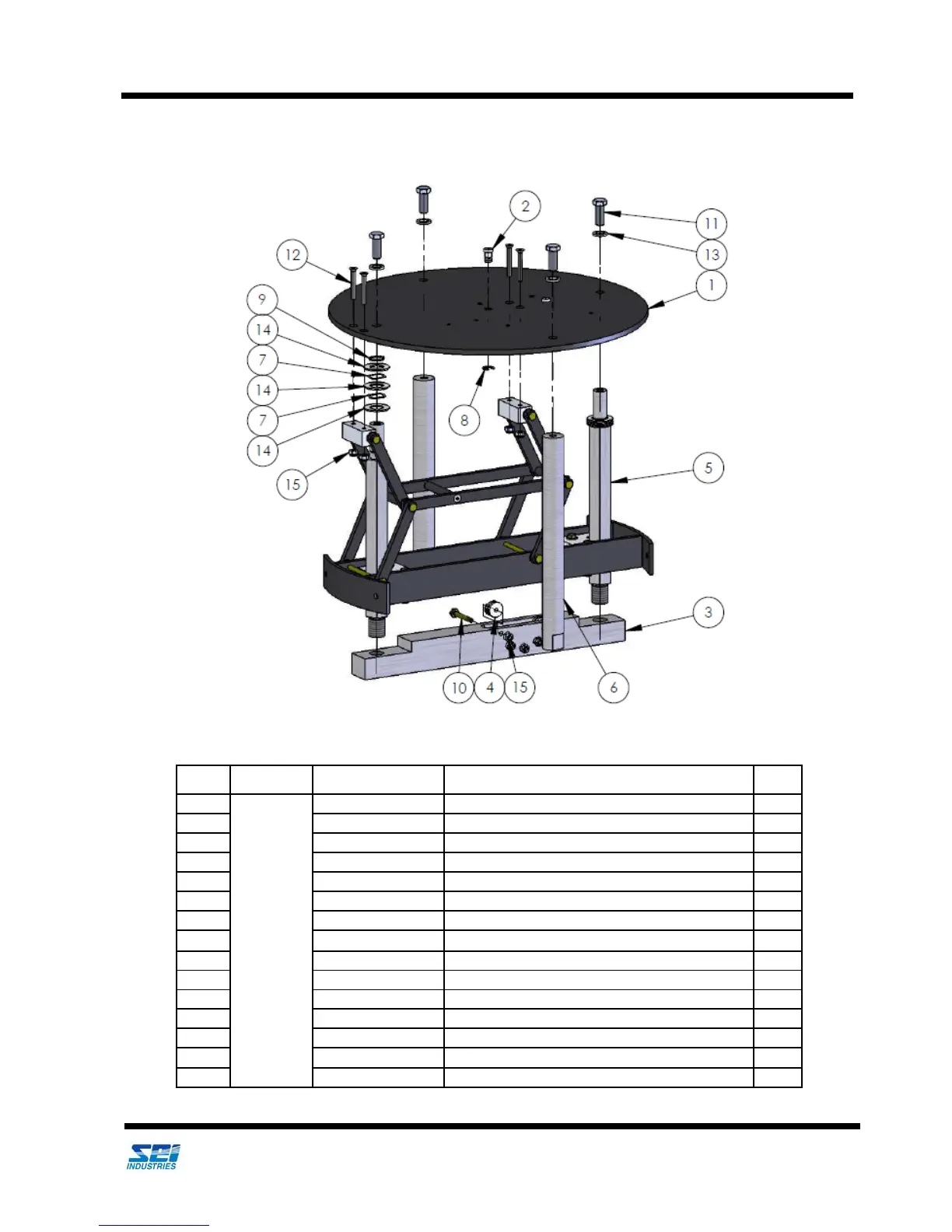

Bambi MAX Valve 16" Sheave Bar and Guide Rods
ITEM
MODEL PART NUMBER DESCRIPTION QTY
1
BBX1518
–
BBX3542
007135 PLATE, TOP 16” 1
2 001618 BUSHING, CABLE 2
3 000226 BAR, SHEAVE, 16” 1
4 001617 SHEAVE, CABLE 5
5 000231 ROD, GUIDE 2
6 000229 ROD, SUPPORT 2
7 007107 SPRING, DISC, 0.650 x 0.855 x 0.060, SS
4
8 005988 RING, RETAINER, EXT, 1/4” PLT 2
9 005214 RING, RETAINER, EXT, 5/8, SS 2
10 000012 BOLT, HX, 10-32 x 1-1732, CAD 5
11 012339 BOLT, HX, 3/8-16 x 7/8”, SS 4
12 002241 SCREW, FSC, 10-32 x 1-1/2”, SS 4
13 001853 WASHER, LOCK, SPLIT, 3/8, SS 4
14 006276 WASHER, FLAT, 0.64 x 1.19 x 0.060, SS 6
15 001685 NUT, HX, NYLOCK, 10-32, SS 9
