SEI Industries BAMBI MAX - Bambi MAX Valve 16 Actuator 2

Section 10: Specifications and Parts
Parts Listings
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 79
We Engineer Solutions

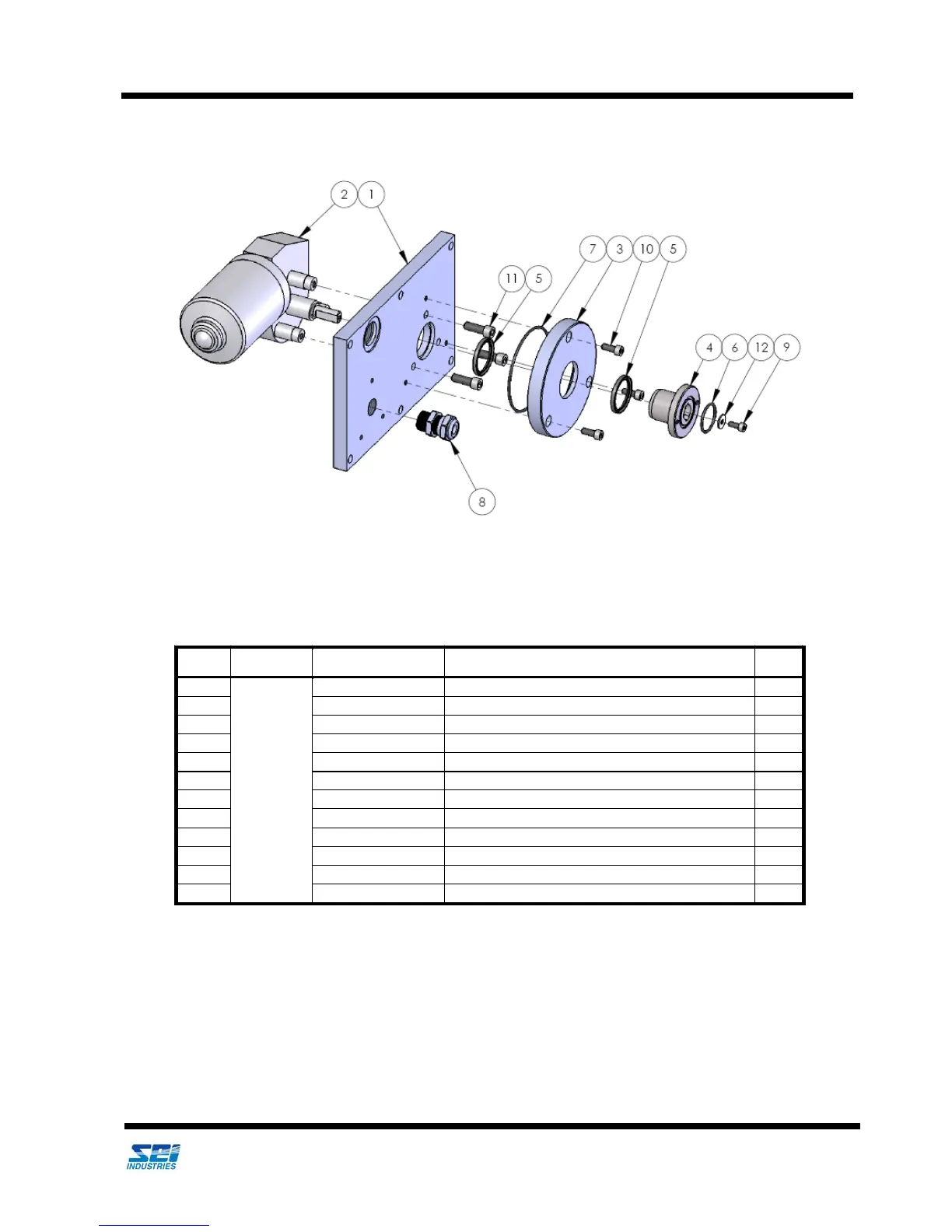

Bambi MAX Valve 16" Actuator 2
ITEM MODEL
PART NUMBER
DESCRIPTION QTY
1 000215 PLATE, MOTOR, FRONT 1
2 007789 MOTOR, GEAR, 24VDC, 4.0A, 61RPM 1
3 000217 COVER, SEAL 1
4 000218 HUB, MOTOR 1
5 002928 SEAL, LIP 2
6 006335 O-RING, BUNA N, #020, 50A 1
7 005994 O-RING, BUNA N, #039, 65A 1
8 000500 GLAND, CABLE, NIBR, M16, IP68 1
9 000132 SCREW, SC, M4 x 0.7 x 10,SS 1
10 000379 SCREW, SC, 10-24 x 1/2", SS 3
11 001002 SCREW, SC, 1/4-20 x 3/4" SS, SEAL 3
12
BBX1518
–
BBX3542
001169 WASHER, FLAT, 0.17 x 0.472 x 0.039, SS
1
