Section 7: Valve Maintenance
MAX Valve Repair and Replacement
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 33
We Engineer Solutions

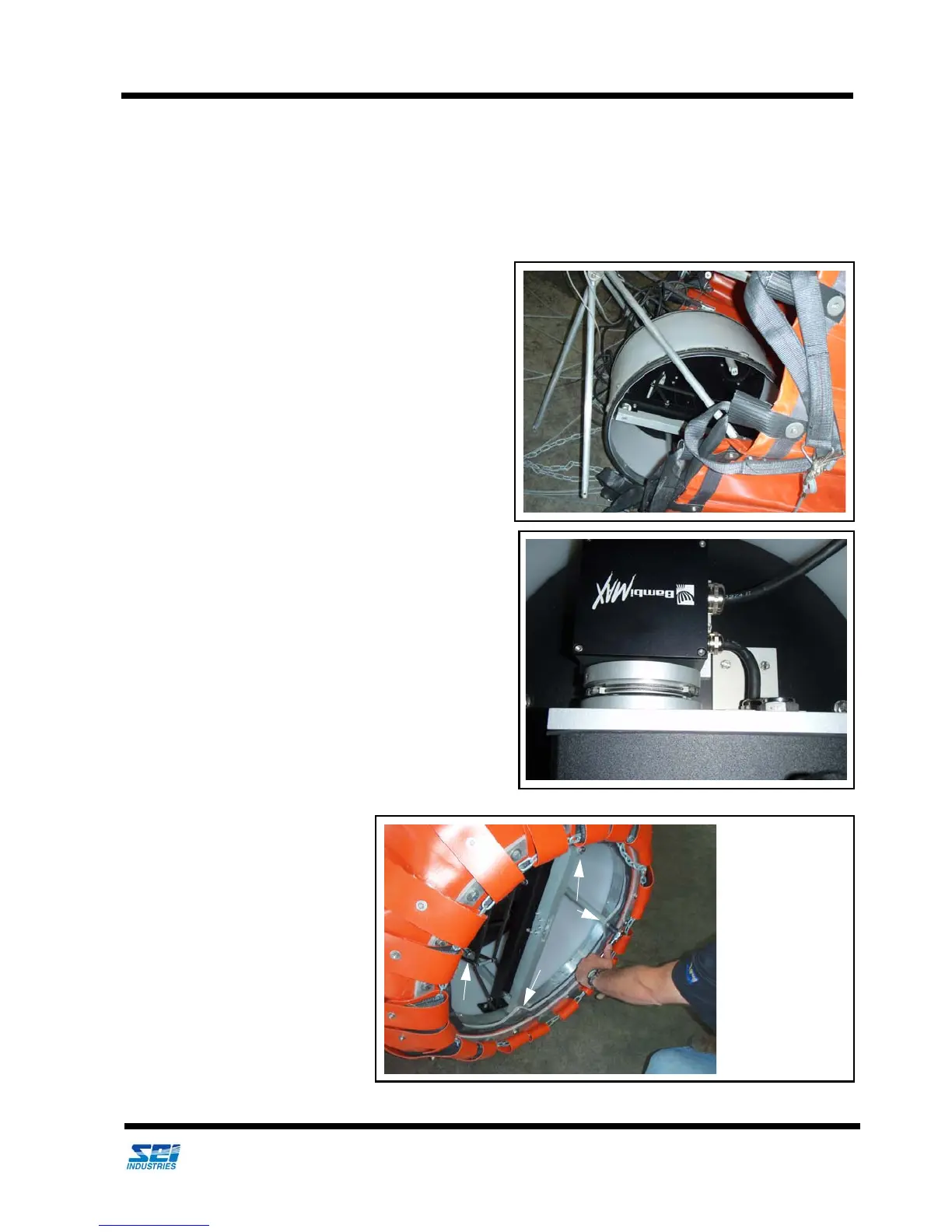

Installing the Valve
The following steps will allow one person to easily install the valve.
1. Making sure the ballast is still at the bottom,
roll the valve through the opening. Leaving
the control cable at the top of the shell, roll the
valve to the base of the shell
2. Place the valve inside the valve-guard, then
rotate the valve until the control box is in the
position shown in the picture below.
3. Now, go around to the
base of the bucket and
insert the four 3/8" bolts.
Some rotation may be
necessary to line up the
standoffs to the bottom
plate holes. When lining
up the holes, always move
the standoff to the nearest
bottom plate hole.
Note location of
arrows for bolts.
