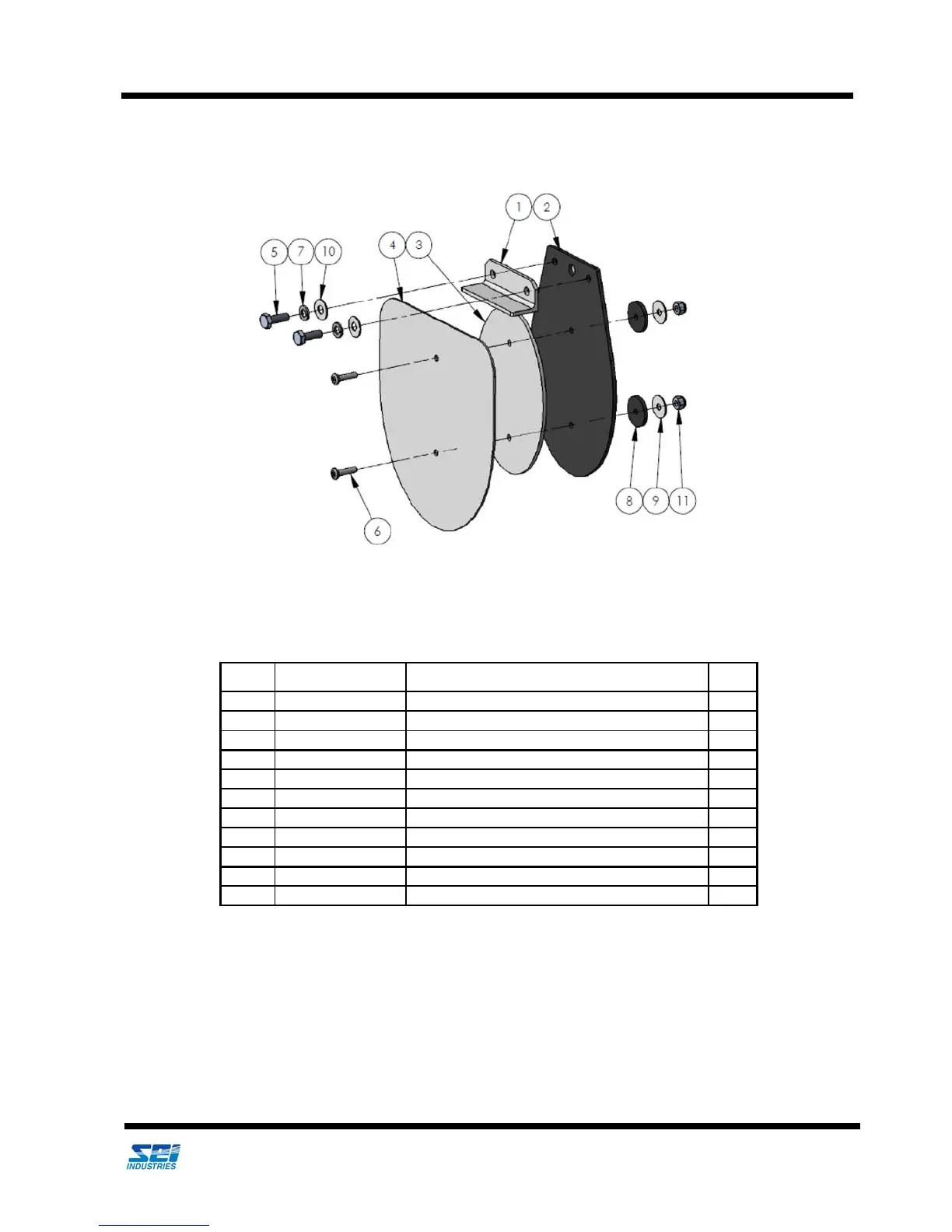

Flapper Valve Assembly
ITEM PART NUMBER DESCRIPTION QTY
1 001070 BRACKET, VALVE, FLAPPER, PF2 1
2 001071 VALVE, FLAPPER, PF2 1
3 001072 SPACER, VALVE, FLAPPER , PF2 1
4 001073 DEFLECTOR, VALVE, FLAPPER, PF2 1
5 000369 BOLT, HEX, 1/4-20 x 3/4, SS 2
6 000495 SCREW, PNPH, 10-24 x 3/4 , SS 2
7 001852 WASHER, LOCK, SPLIT, 1/4, SS 2
8 001824 WASHER, FLAT, 3/16 x 1 x 1/8, NEO 2
9 001855 WASHER, FLAT, 0.20 x 0.75 x 0.036, SS
2
10 001833 WASHER, FLAT, 0.28 x 0.69 x 0.036, SS
2
11 001660 NUT, HEX, NYLOCK, 10-24, SS 2
