SEI Industries BAMBI MAX - Bambi MAX Valve 16 Actuator

Section 10: Specifications and Parts
Parts Listings
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 78
We Engineer Solutions

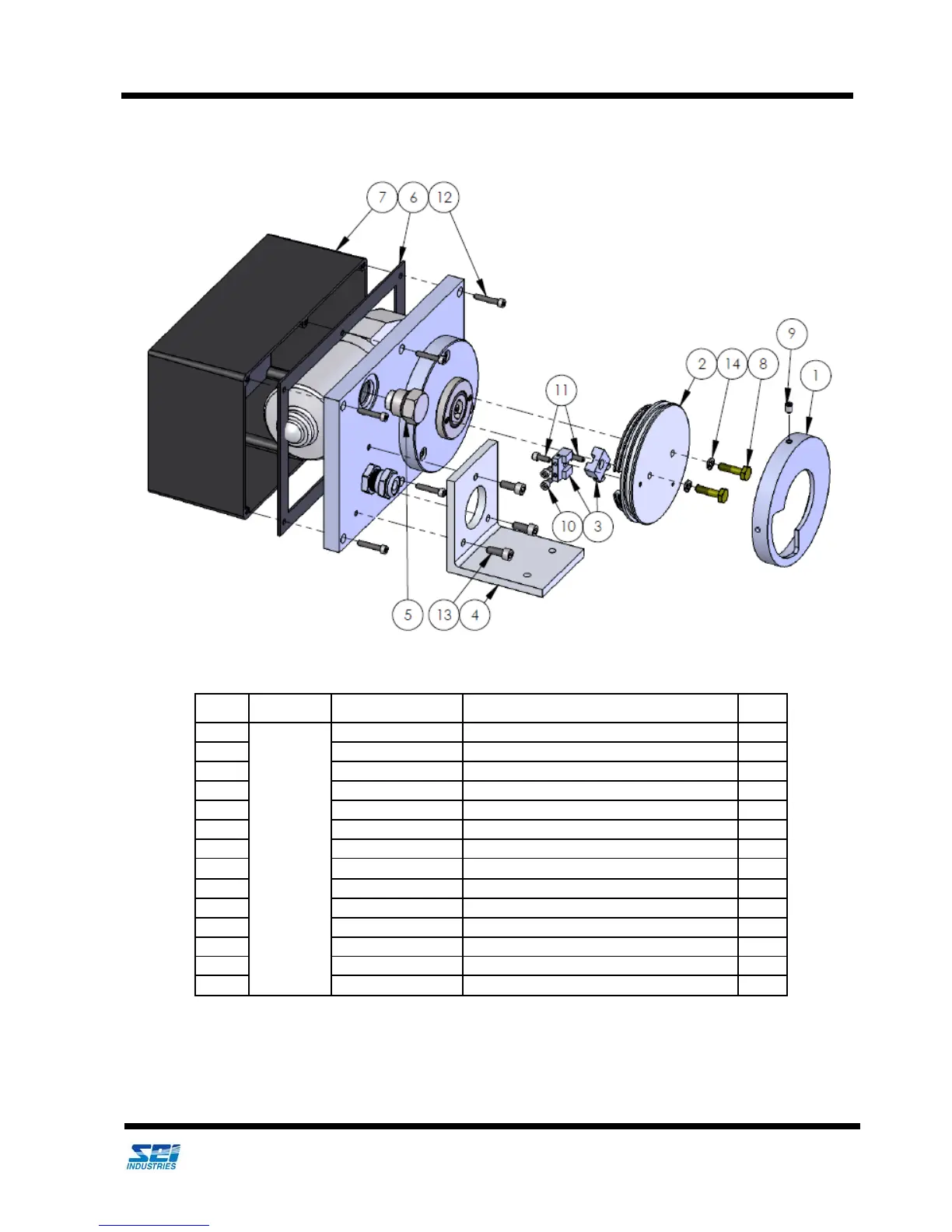

Bambi MAX Valve 16" Actuator
ITEM
MODEL PART NUMBER DESCRIPTION QTY
1
BBX1518
–
BBX3542
000222 CAM, SENSOR 1
2 000220 DRUM, CABLE 1
3 000221 ANCHOR, CABLE 2
4 000214 BRACKET, MOTOR 1
5 000224 PLUG DESICCANT, ASSEMBLY 1
6 000225 GASKET, MOTOR 1
7 000267 ENCLOSURE, 7.4 x 4.3 x 3.1, AL 1
8 000280 BOLT, HX, 10-32 x 25/32, CAD 2
9 000525 SCREW, SET, CUP, 10-32 x 1/4”, SS
2
10 000920 SCREW, SC, 6-32 X 1/4", SS304 4
11 000408 SCREW, SC, 6-32 x 3/8”, SS 2
12 006660 SCREW, SC, 6-32 x 3/4”, SS 6
13 000379 SCREW, SC, 10-24 x 1/2", SS 3
14 001848 WASHER, LOCK, SPLIT, #10, SS 2
