SEI Industries BAMBI MAX - Bambi MAX Valve 16 Lift Bar and Linkage

Section 10: Specifications and Parts
Parts Listings
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 81
We Engineer Solutions

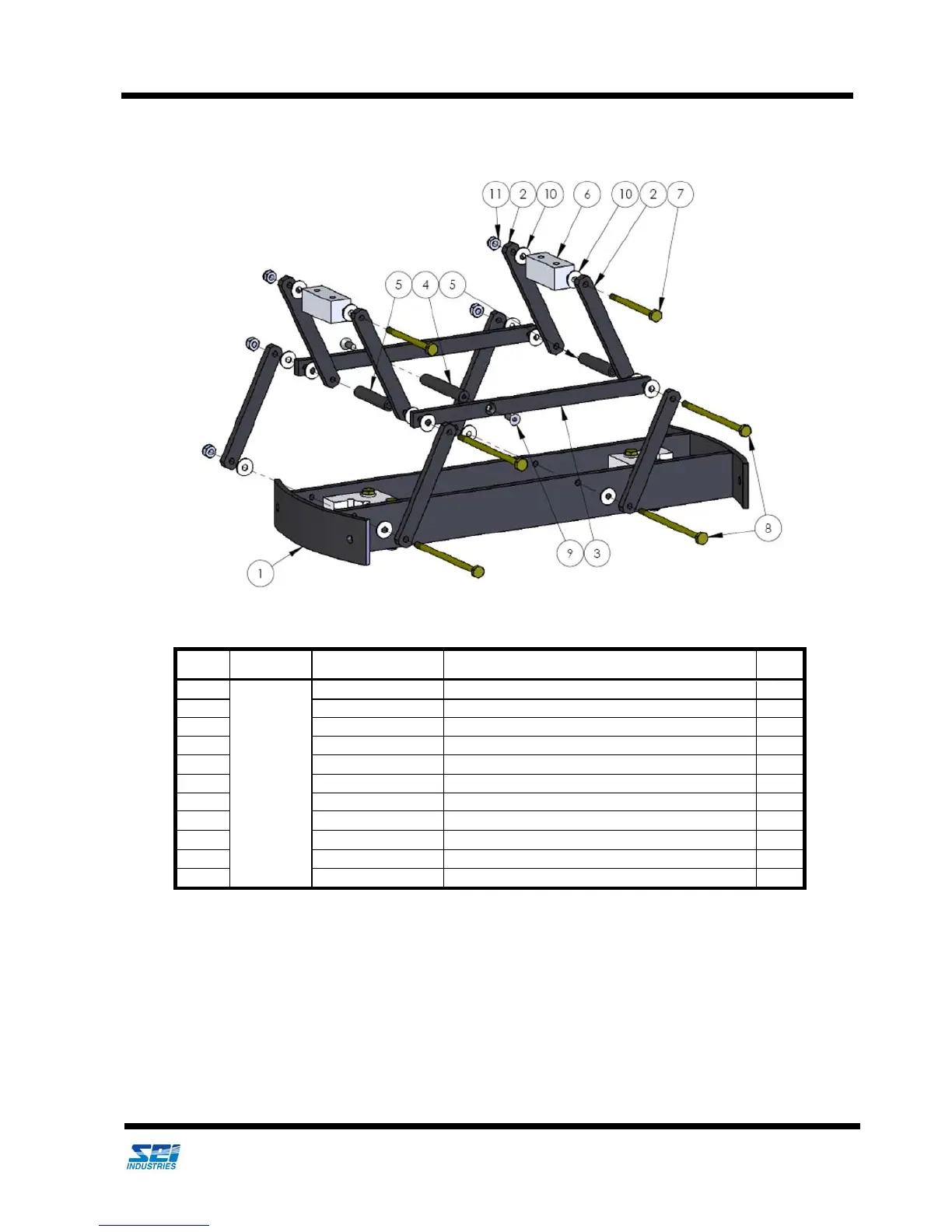

Bambi MAX Valve 16" Lift Bar and Linkage
ITEM MODEL
PART NUMBER
DESCRIPTION QTY
1 000233 BAR, LIFT, 16” 1
2 008660 ARM, LINKAGE, SHORT, 16” 8
3 008662 ARM, CARRIER, SHORT, 16” 2
4 008664 SPACER, SOLID, CARRIER 1
5 008874 SPACER, TUBE, CARRIER 2
6 008665 BLOCK, PIVOT 2
7 001755 BOLT, HX, 10-32 x 2-25/32, CAD 2
8 001771 BOLT, HX, 10-32 x 3-29/32, CAD 4
9 000449 SCREW, FSC, 10-24 x 1/2”, SS 2
10 002269 WASHER, FLAT, 0.20 x 0.57 x 0.40, PTFE
16
11
BBX1518
–
BBX3542
001685 NUT, HX, 10-32, SS 6
