6.4 Swarm S2 LT and (U)HT Datalogger installation and configuration
IN this section we address the mechanical installation of the datalogger and the considerations in case wireless
interface is to be used. We also explain the configuration of the datalogger, the signal evaluation, setup of data logger
for wireless communication and use of the service port to configure the datalogger and download data. These
instruction nis valid for all configurations of the Swarm S2 Datalogger (LT/(U)HT, Bluetooth and ISA100 versions).
6.4.1 Box content
Swarm S2 Datalogger comes with the following:
− Swarm S2 LT or (U)HT Datalogger as shown in Table 3, shipped in its own box.
− Swarm S2 Datalogger Mounting bracket as shown in Figure 6, shipped in the Swarm Datalogger box.
− The Cable conduit in Figure 6 is shipped separately, and may be shipped in customer defined lengths

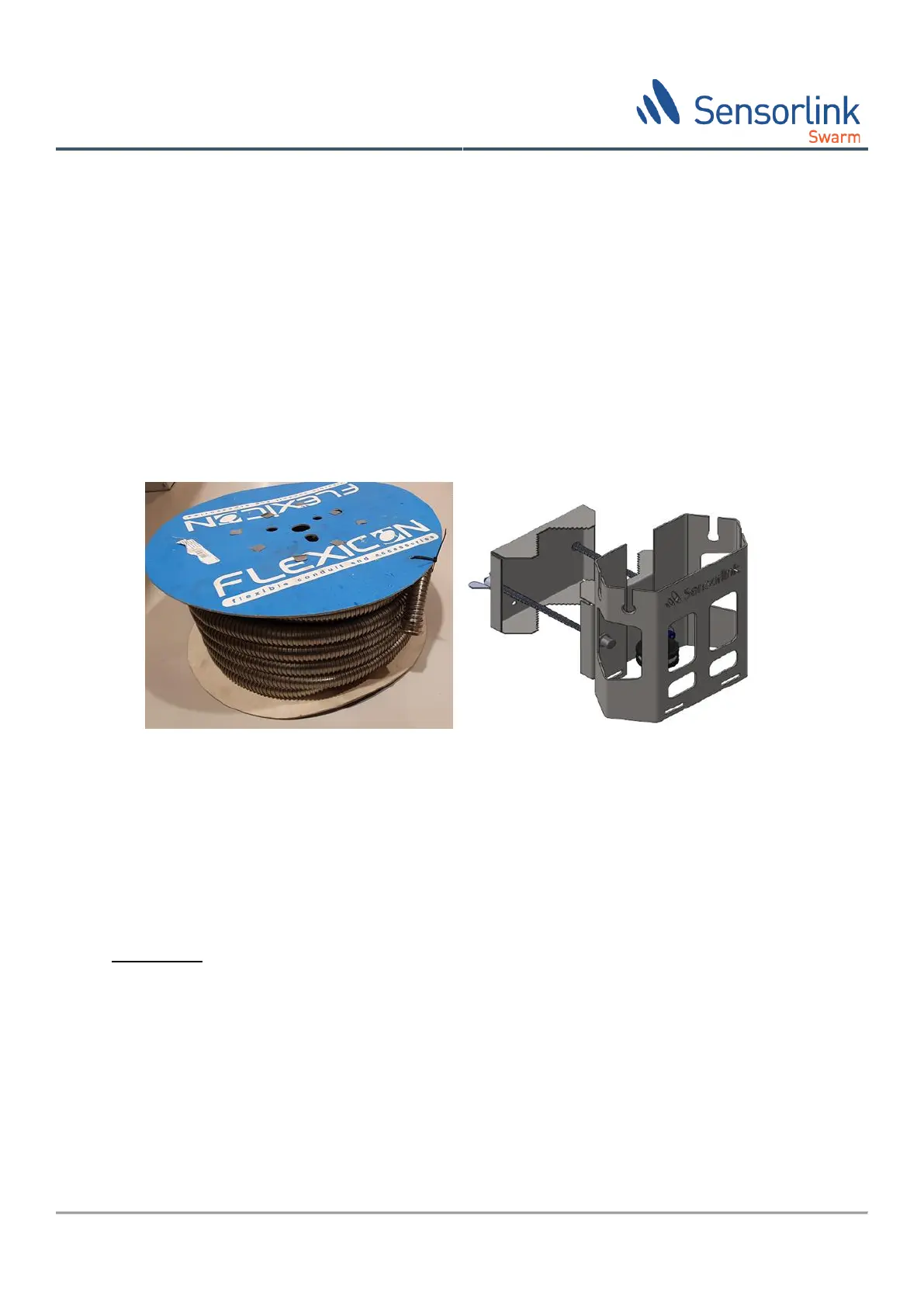

Figure 6 Swarm S2 Datalogger mounting bracket and conduit(example)
6.4.2 Required equipment
The following hardware is required for the installation of Swarm S2 (U)HT:
− Hex 4 to close the P-clip
− Hex 5 key to open the Datalogger and fasten it to the bracket
− Straps for bundling cables (metal and plastic, depending on the sensors and ops range)
− Nylon wire-pull-spring if wires are to be pulled through conduit, only relevant for conduits longer than 1.5m
Precondition: A 3inch pole is available within the reach distance of the cables to be used (max 5m) cable
distance from sensor to datalogger
