Doc. No. 702202-252-01 rev. 00

Page 16 of 42

Swarm®S2 Installation and User Manual

Last updated 2021-03-02

by Harald Sleire

Step

Description

Illustration

22.

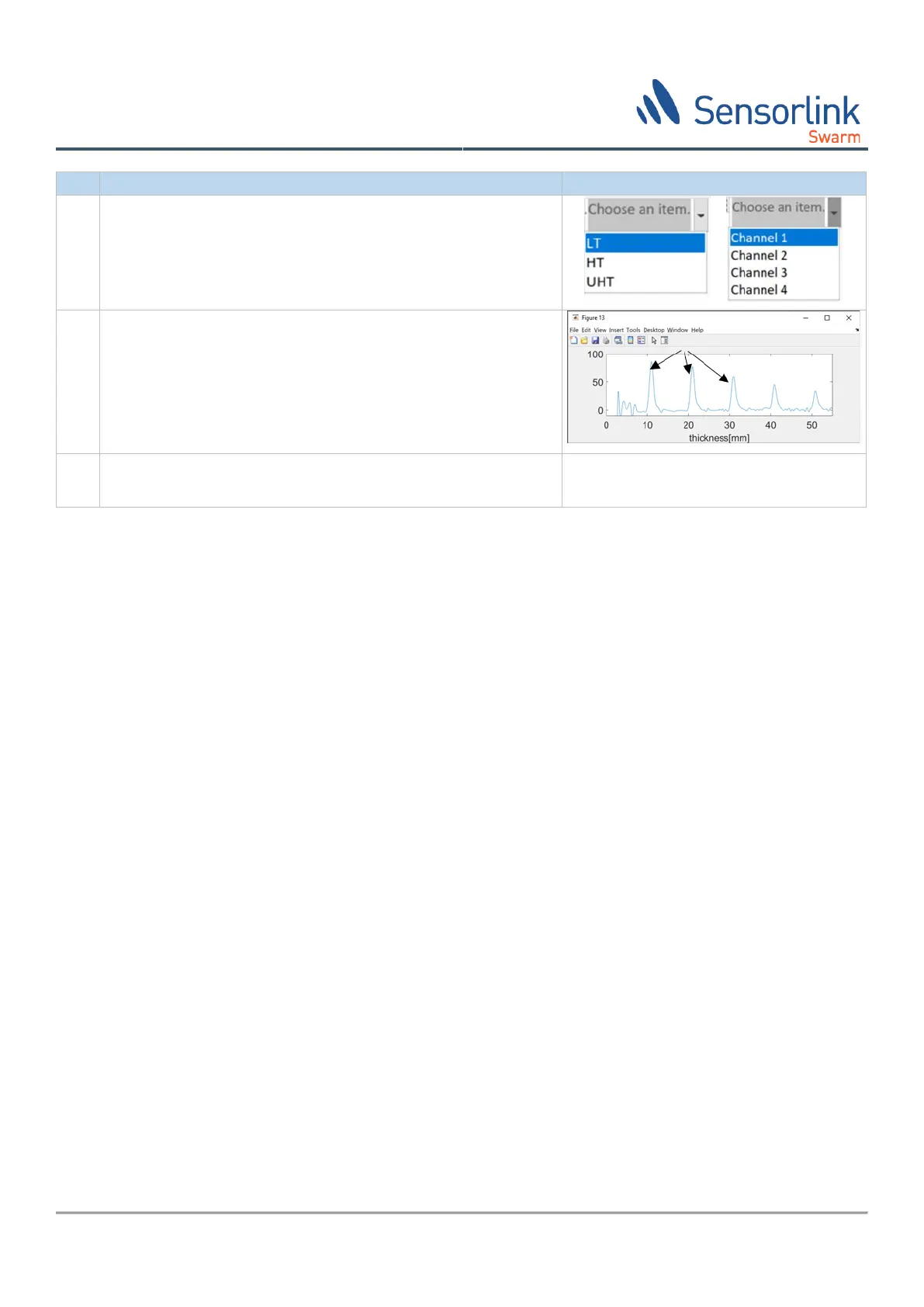

Open the Swarm S2 user interface and choose the right type of

ultrasound sensor and channel number the sensor is connected

to. Type the nominal thickness of the pipe and run the live view

of the trace.

23.

You should now see the ultrasound trace which is updated every

10-15 seconds.

You should now be able to clearly see at least 3 backwall echoes,

as shown in the picture for a 10mm thick sample.

24.

The installation of the sensor is now complete

Table 5 Swarm S2 LT Sensor installation
