7.4.2 Ultrasound parameters

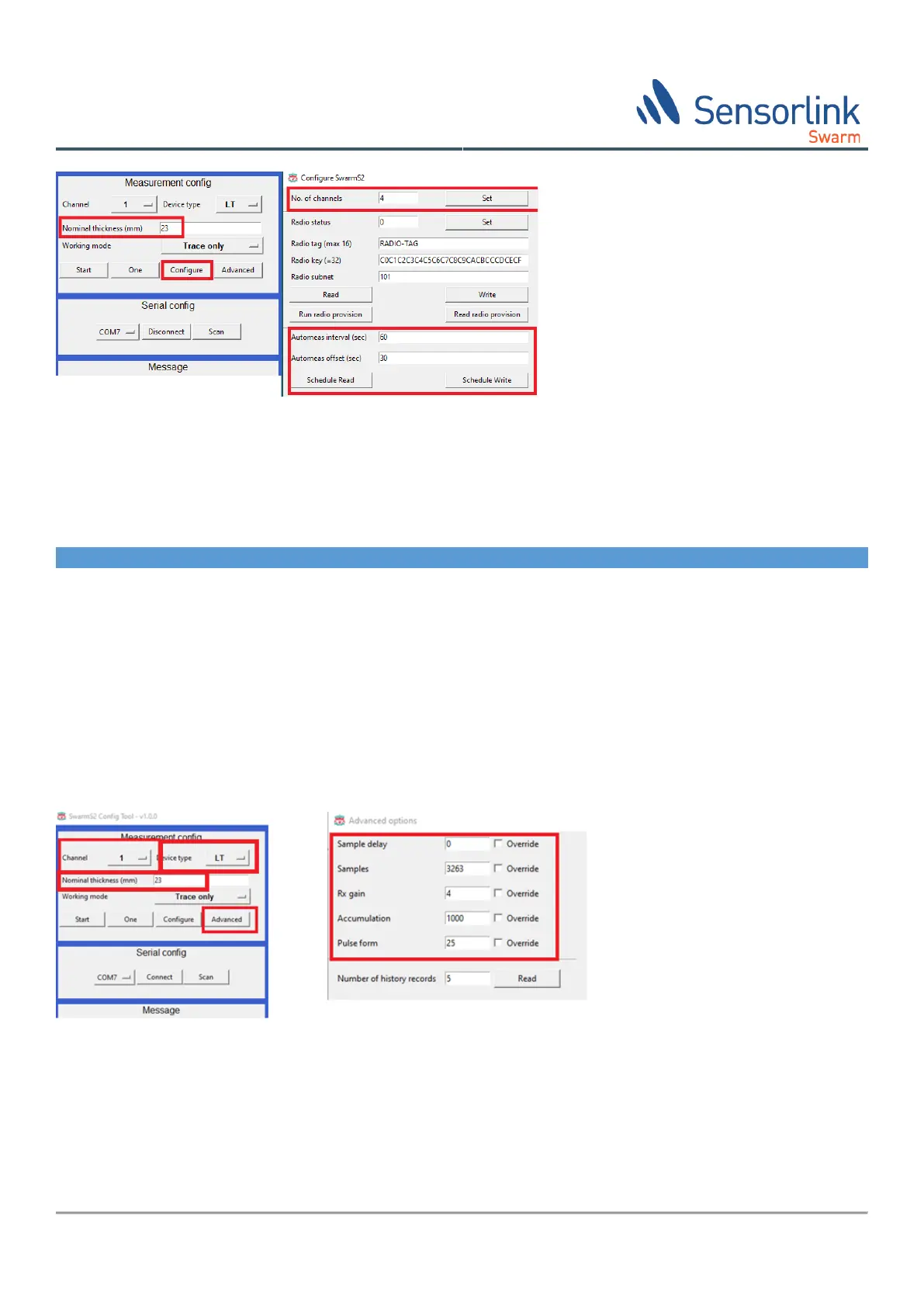

To setup the ultrasound parameters insert the value for the “nominal wall thickness” and choose transducer type: LT,

HT or UHT. The parameter values will be stored in the instrument.

Parameter

UHT

Tx delay

50000

Sample delay

900

3000

Pulse form

Accumulations

1000

Samples

Calculated based on nominal wall thickness

Rx gain status

Calculated based on nominal wall thickness

Process front wall

These values can be overridden in the advanced dialog. Choose the channel in the main view, then click the advanced

button.
