Swarm®S2 Installation and User Manual

Last updated 2021-03-02

by Harald Sleire

The Swarm System is easily connected between the sensors and the Datalogger with cables provides with the delivery.

The LT sensor have connectors whereas the (U)HT sensors come with fixed cables.

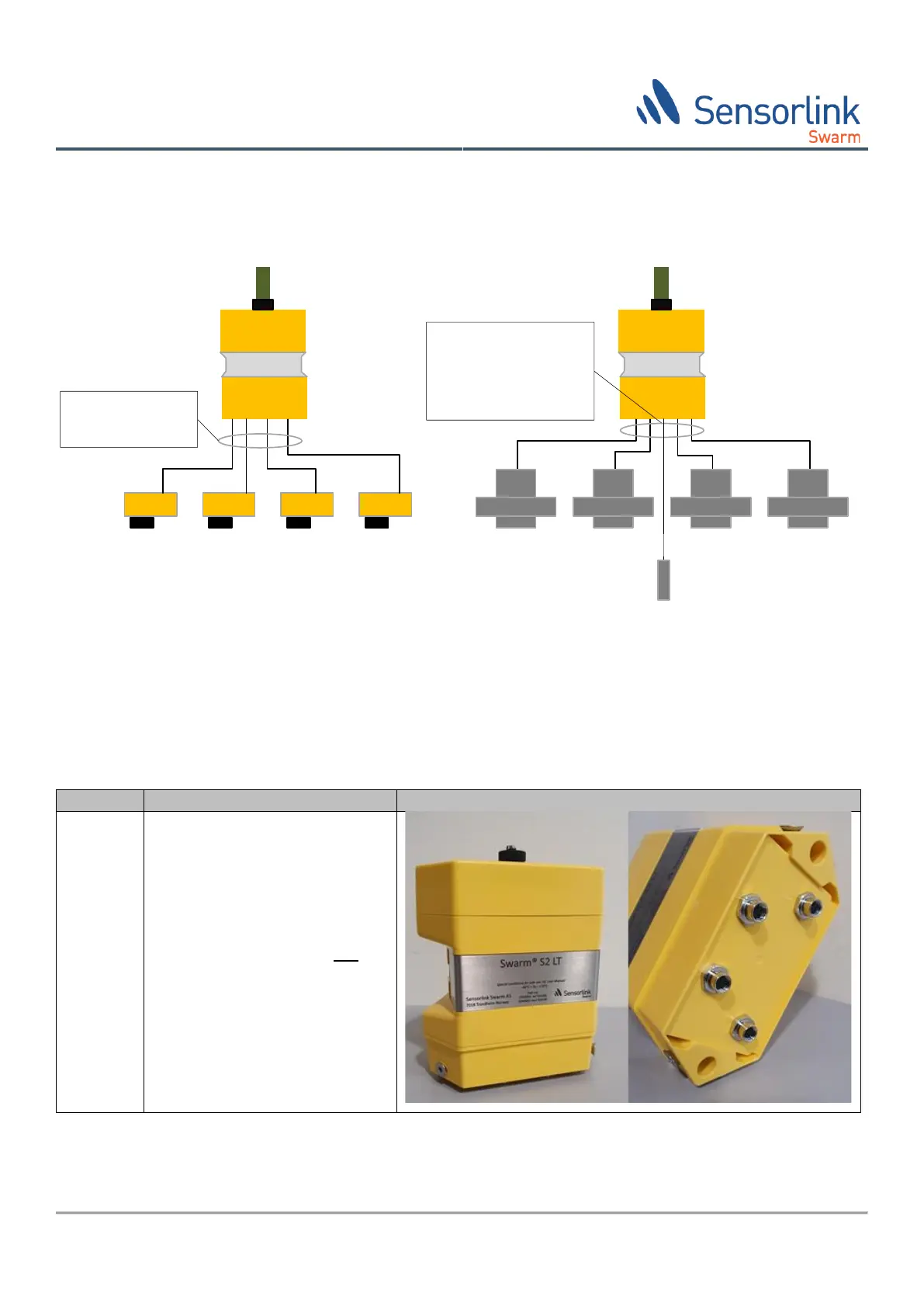

Figure 1 Swarm S2 System block diagram (interconnection diagram)

5.1 The Swarm S2 Datalogger variants

Product

Main features

Picture of unit

Swarm®

S2 LT

Contains Bluetooth® radio

interface and connects to low

temperature ultrasonic sensors

S2 LT S2 (U)HT

One 2 pairs cable

per S2 LT Sensor

One coax cable per

S2 (U)HT Sensor +

One pair cable to

temperature element

1-4 Swarm® S2 LT Sensor(s)

1-4 Swarm® S2 (U)HT Sensor(s)

1 Temperature Probe
