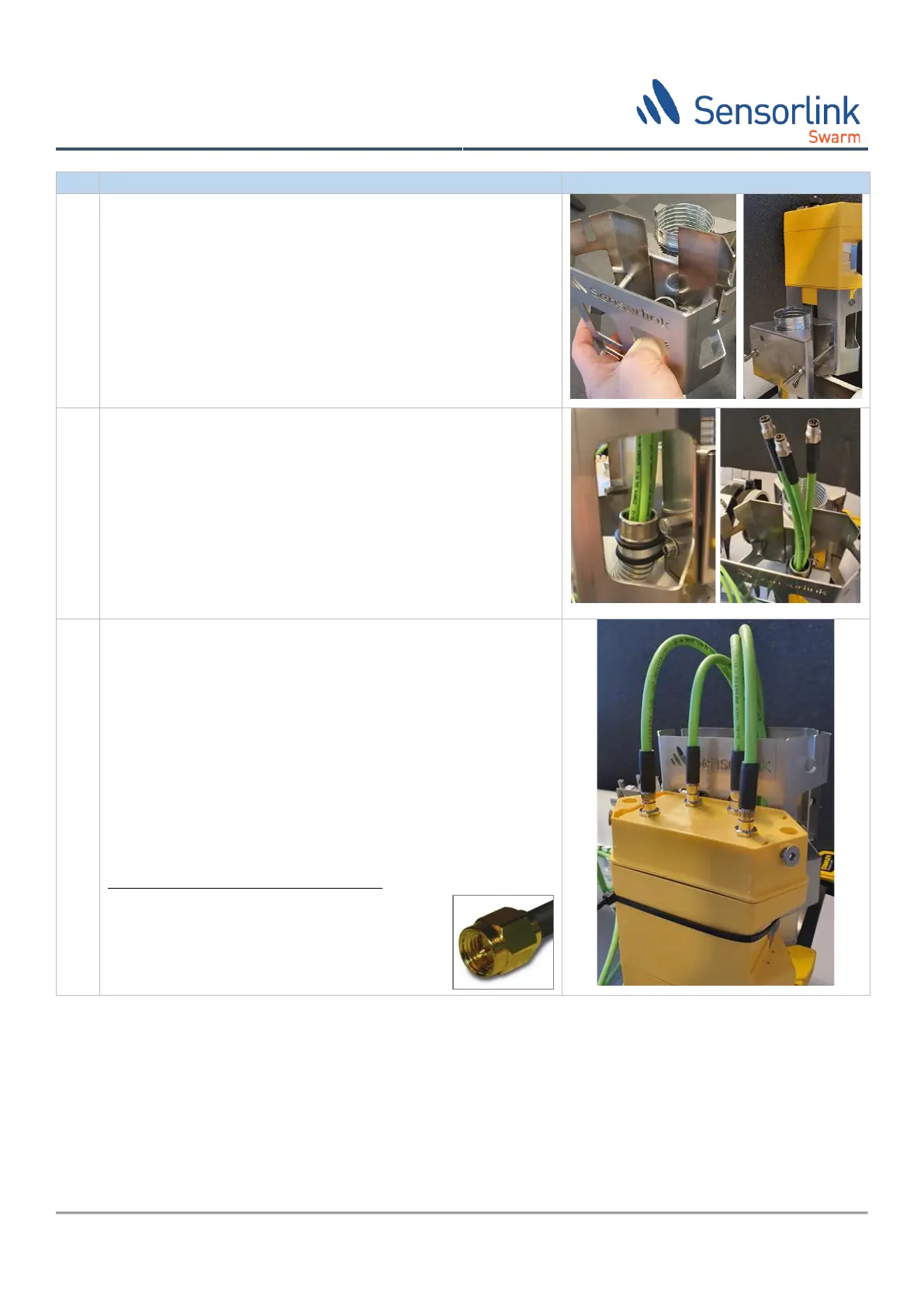

Install the Swarm S2 Bracket on the pole less than 5m (cable
length) from the sensors on the pipe.
Assemble the bracket by inserting the threaded bolts into the
nuts and lock them with Loctite® or similar.
Clamp the bracket over the pole and tighten the wing nuts.
If the pole is subject to vibration, you may use some form of
thread lock (Loctite® or similar) on the wing nuts as well.
Secure the conduit at the pipe or near the pipe and run it to the
Swarm S2 Bracket, secure the conduit in the P-clip at the
bracket.
Pull a draw wire or pull-line thought he conduit to ease the
pulling back of the cables and bull back the cables.
Hold the Swarm S2 Datalogger above the bracket and start
connecting. In this step one may be two persons or secure the
Datalogger temporarily to the bracket by strapping it upside
down to the outside of the bracket.
Connect the cables to the Swarm S2 Datalogger bottom
interface using only hand force on the SMA connectors. When
all cables are in place, tighten the connectors finger tight.
Pay attention to the keying of the connectors and do not use
excessive force when tightening them, no tools required only
finger tightening.
If a Swarm S2 (U)HT system is installed, the cables and
connectors will be different. The connectors
are SMA type. These should be hand tightened,
but a small, fixed spanner may be used after
the threads are engaged, but without excessive
force.
