Sepura SC20 series User Manual

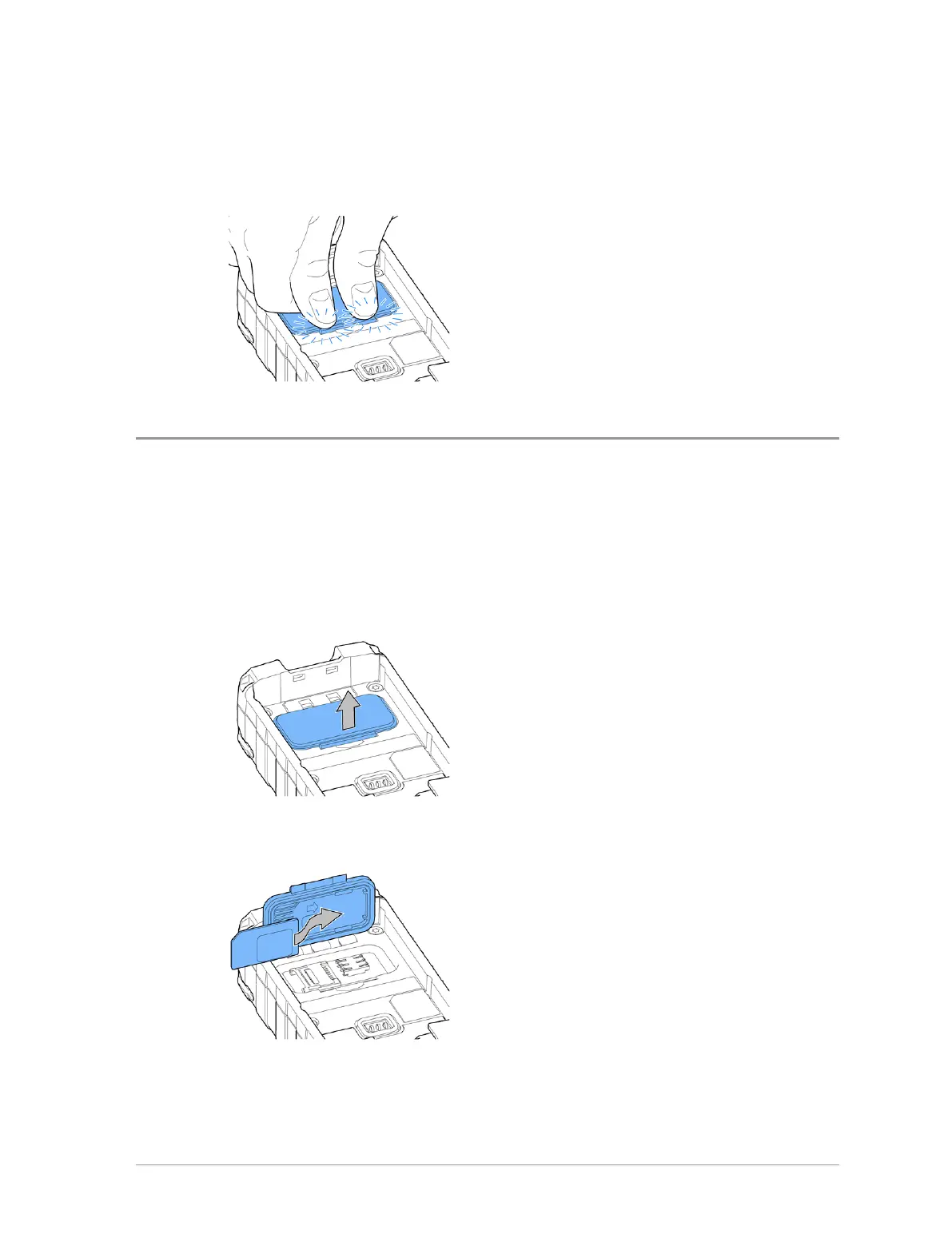

4. Close the cover. Using your thumbs, press downward firmly on either side
of the cover as shown to secure each tab. You must ensure that the
compartment cover is secured. Not securing the cover will affect your
radio's IP rating.
Fitting a Smart card
If required by your network operator, you may need to fit a Smart card to
your radio.
1. Lift the compartment cover using a small screw driver or tweezers. The
cover is secured by two tabs located at the top of the cover, either side of
the recess.
2. Insert the card into the slot on the underside of the cover as shown,
ensuring that the card is secured between the two tabs.
User Guide
21

Sepura SC20 series Specifications

General

Operating Temperature	-30°C to +60°C
Frequency Bands	380-430 MHz
GPS	Integrated GPS, GLONASS
Bluetooth	Bluetooth 4.0
Security	TEA1, TEA2, TEA3
Transmit Power	1W, 3W, 10W
Battery Life	Up to 14 hours (standard battery)
