10 CRANE ASSEMBLY & TRANSPORT PROCESS
Before starting the assembly of the SCORPIO 45’ or the SCORPIO 38’ it is important to identify all
the transport plywood crates and know what is inside each one, thereby it will be more practical and
intuitive.
10.1 DESCRIPTION OF THE PLYWOOD CRATES

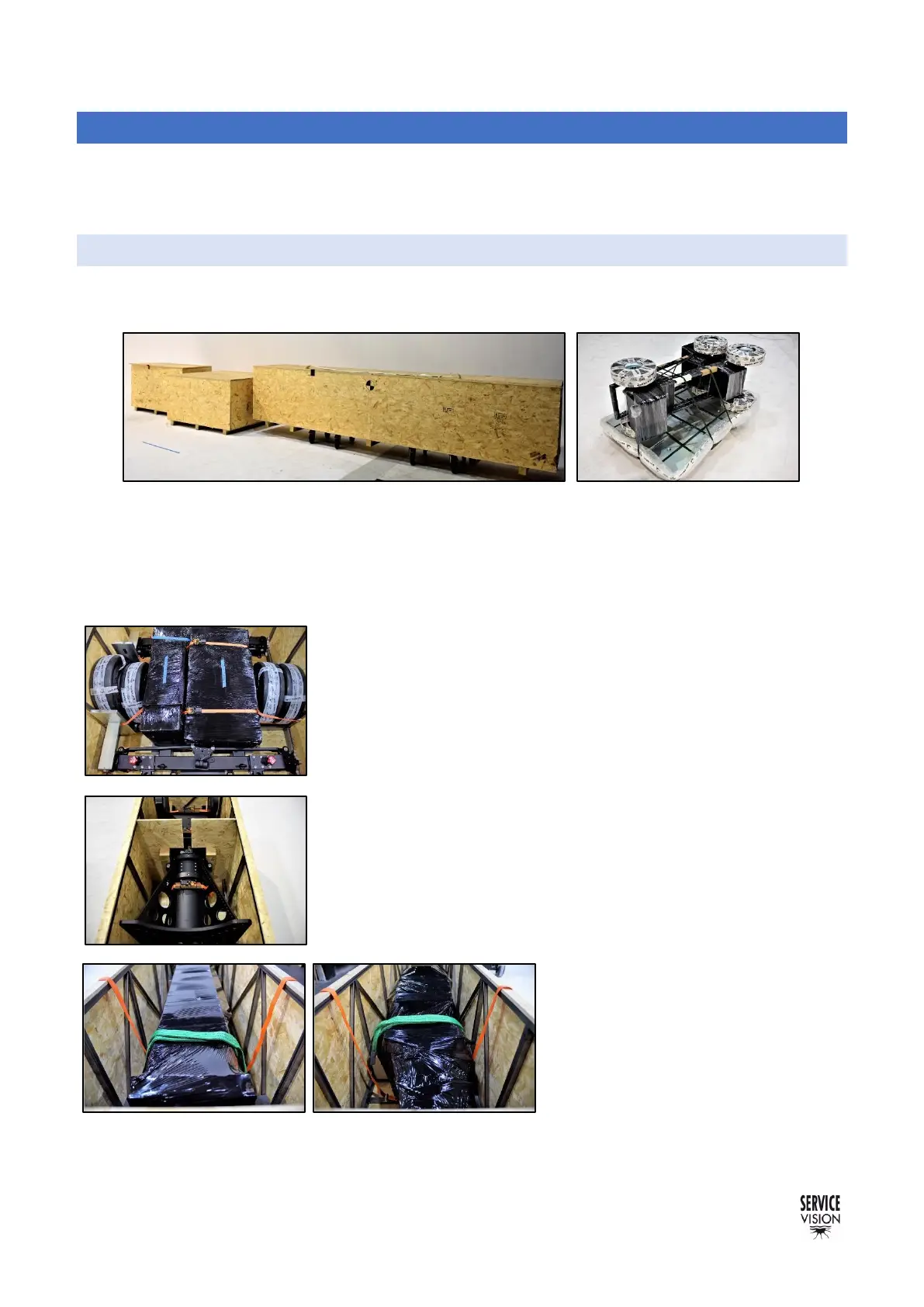

The SCORPIO 38’/45’ are send in five lumps: three plywood crates and two pallets. Inside the crates
there are the parts of the crane and in the pallets are the counterweights and the counterweight dollies.
In the longest crate there is the main arm, and the side protection bars. The smallest one (left on fig.
10.01) has the column and the fulcrum and in the squared crate there is the dolly and the different
accessories provided with the crane. It is important to notice the position of the parts of the crane in
case it is needed to fit the components inside the crate again. Notice also that the plywood crate
covers are marked to identify the position of the cover.
Inside the dolly crate there are different boxes including accessories
such as the electronic box, the leveling head and different boxes
including hardware, cables, and spares. Those boxes need to be
removed in order to have access to the dolly.
The column crate includes only the column and the fulcrum and
there is only one way to fit them inside.
The arm is provided with two straps
indicating the lifting points to remove
the arm from the crate safely.
