SCORPIO 38’ - 45’ - Crane assembly & transport process - Assembly of the Scorpio 38’-45’
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 103
comercial@servicevision.es · www.servicevision.es
10.2 ASSEMBLY OF THE SCORPIO 38’-45’
It will be necessary to have lifting devices (such as forklifts or winches) that can lift the weight of the
crane. The set of tools provided with the crane can be used to attach the different parts of the crane.

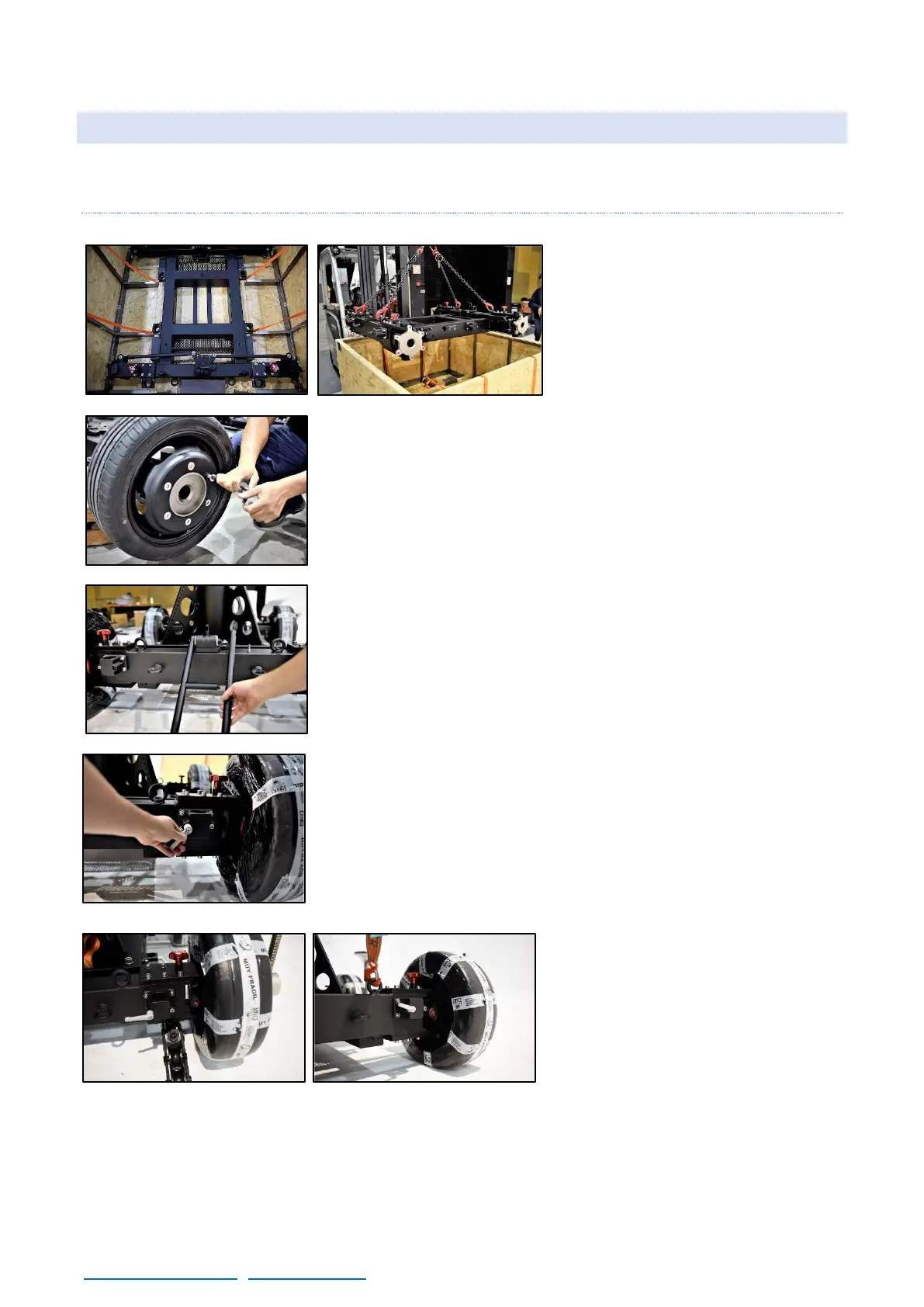

FIRST STEP: DOLLY
The first thing to do is open the dolly
crate and empty all the accessories
cases until there is access to the dolly
at the bottom of the crate. Use a forklift
to remove it from the crate using
straps from the O rings.
With the Dolly still hanging from the support points, attach the four
wheels using the screws provided with the equipment. Apple boxes
can be used instead of the forklift to attach the wheels.
The steering handles should be introduced now by unscrewing one
side of the bar in order to introduce it in the support as shown in the
fig. 10.10. It will be easier if the bar is completely removed, even from
the handle.
The knobs for the pushing bars can be mounted now. Screw the
knobs and leave them loose to introduce the pushing bars on the
supports. If the pushing bars does not fit, loose slightly the Allen screw
on the side of the knob.
To fix or remove the tracking wheels
they need to be introduced under the
chassis of the dolly, next to the
pneumatic wheels with the positioner
pin and tighten with the red knob. The
leveling Jacks are introduced through
the hole inside the shaft of the wheels
and secured with a pin in the dolly.
Now the dolly is ready to assemble the column and the fulcrum.
