SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Dolly
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 13
comercial@servicevision.es · www.servicevision.es

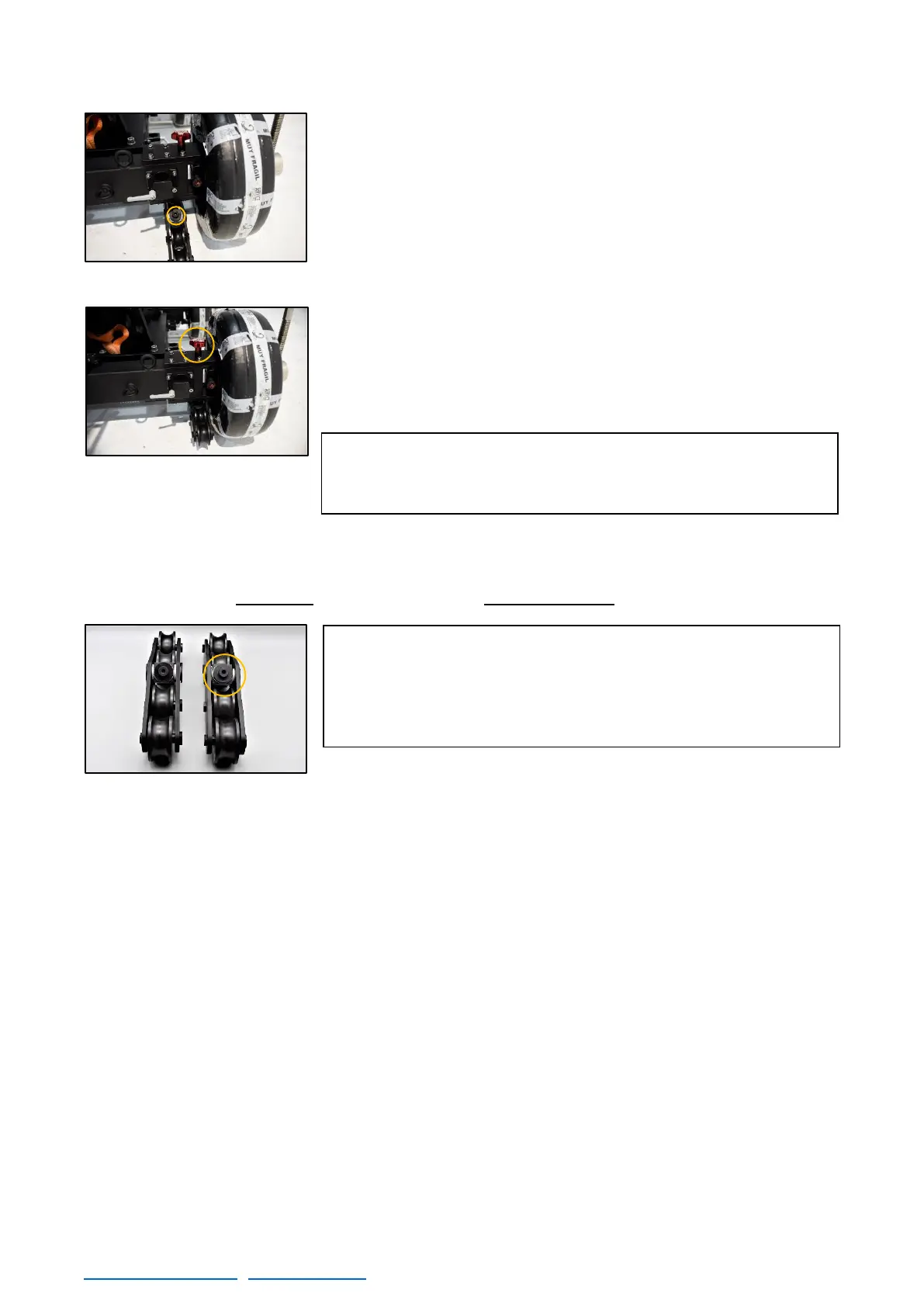

To fix or remove the tracking wheels they need to be introduced
under the chassis of the dolly, next to the pneumatic wheels with the
positioner pin (fig. 02.09).
Once the pin is introduced it can be lock screwing the red knob on
top of it. In case it is needed, this red knob can be removed by pulling
it out and unscrewing it at the same time.
Once the track wheels are assembled, the crane can be introduced
into the tracks using a 1m ramp as minimum length. Only straight
tracks can be used for the crane.
In case the user wants to stop the dolly in any position, introduce the
leveling jack in the shaft of the wheel and bring the shoe down to use
it as a brake.
Notice before assembling the track wheels that there are 2 of them with a movable axis side to side.
This is to correct the minor differences between both sides of the track. To make this system work
properly, mount the same kind of track wheels at the same dolly’s side.
Important note: When using the travelling wheels, DO NOT
leave the crane mounted in tracks overnight, the track wheels
may get flat if they are long periods of time in the same
position.
