SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Dolly
Version 1.02 May 27, 2022
12
2.1.3 DOLLY WHEELS

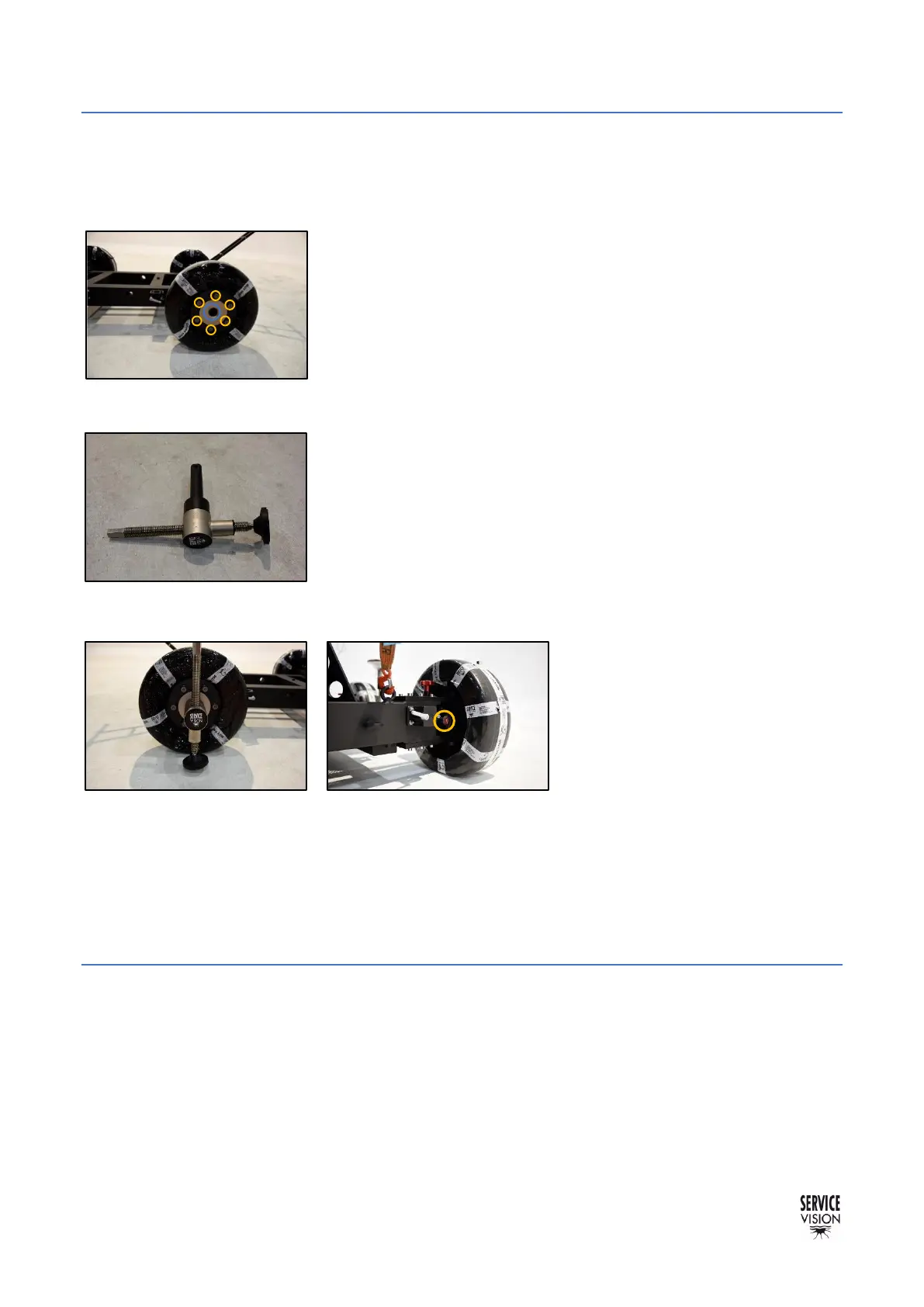

The Wheels are mounted into the dollies with 6 screws from the outside of the wheel (DIN 7991
M14x30mm). The holes inside the wheel axes are prepared to introduce the leveling jack.
Specifications for the wheels:
• Inflated with air at max pressure of: 51PSI/305kPa. (3.5Bar).
• Reference code from Servicevision. 2-7631
There are 4 leveling Jacks, one for each wheel. In order to move the
crane around they can be removed to reduce the width of the base.
To operate the crane, the 4 of them need to be touching the ground
and they are used to level the base. If the crane is mounted in tracks
(see track wheels), one of the leveling jacks can be mounted and act
as a brake when it touches the ground.
The leveling jacks are locked from
inside the wheel with a different
locking pin (D16x80mm).
To mount the leveling jacks,
introduce them through the hole
inside the shaft of the wheel.
Once the Leveling Jack is completely introduced, Insert the locking pin to lock its position. Now bring
the shoe down using the steering wheel to move the threads of the leveling jack until the shoe touches
the ground.
2.1.4 TRACK WHEELS
The SCORPIO 45’dolly can be used in standard 1 m tracks. The SCORPIO 38’ dolly can be used
either in 1m tracks or 62cm tracks. To do this the track wheels needs to be mounted into the dolly as
shown in this chapter:
