SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Dolly
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 11
comercial@servicevision.es · www.servicevision.es
The SCORPIO 38’ has a collapsible dolly. It can be readjusted to fit 62cm tracks and 1m tracks.
To do so, block the direction of one
side, and attach the squared leveling
jack in that side of the dolly to lift the
base on that side. Use the steering
wheel for leveling jacks (Ref. 7639) to
lift it.
Once the dolly is supported by the Jack and the other 2 wheels, remove the 3 screws from the dolly
and the 2 screws of the wheel’s pantograph (marked in fig. 02.08). With all the screws loosen, push
from both sides in order to introduce one arm into the other. Once they are aligned in the closed
position, mount all the screws again and repeat the operation in the other side of the dolly.
It might be possible that the locking bolt for the locking screw on the
collapsible arms for the dolly (fig.02.08b) falls down once the screws
from fig.02.08 are removed. This part is used to lock the arm in the
extended position of the arms, in the collapsed position it can be
removed and stored away. To introduce it, slide it from the bottom part
of the arm with the threads for the screw facing the upper part of the
arm, then attach the screw while holding this part until it stops spinning
and it’s locked.
Scorpio 38’
62cm track
Scorpio 38’
1m track
Scorpio 45’
1m track
Length
1800 mm / 5’10’’
1800 mm / 5’10’’
1800 mm / 5’10’’
Width w/out Leveling Jacks
1150 mm / 3’9’’
1530 mm / 5’
1512 mm / 4’11’’
Width w/ Leveling Jacks
1490 mm / 4’11’
1870 mm / 6’2’’
1840 mm / 6.03 ft.
Height w/out Leveling Jacks
560 mm / 1.10 ft.
560 mm / 1.10 ft.
560 mm / 1.10 ft.
Weight
297 kg. / 654 lb.
297 kg. / 654 lb.
264 kg. / 582 lb.

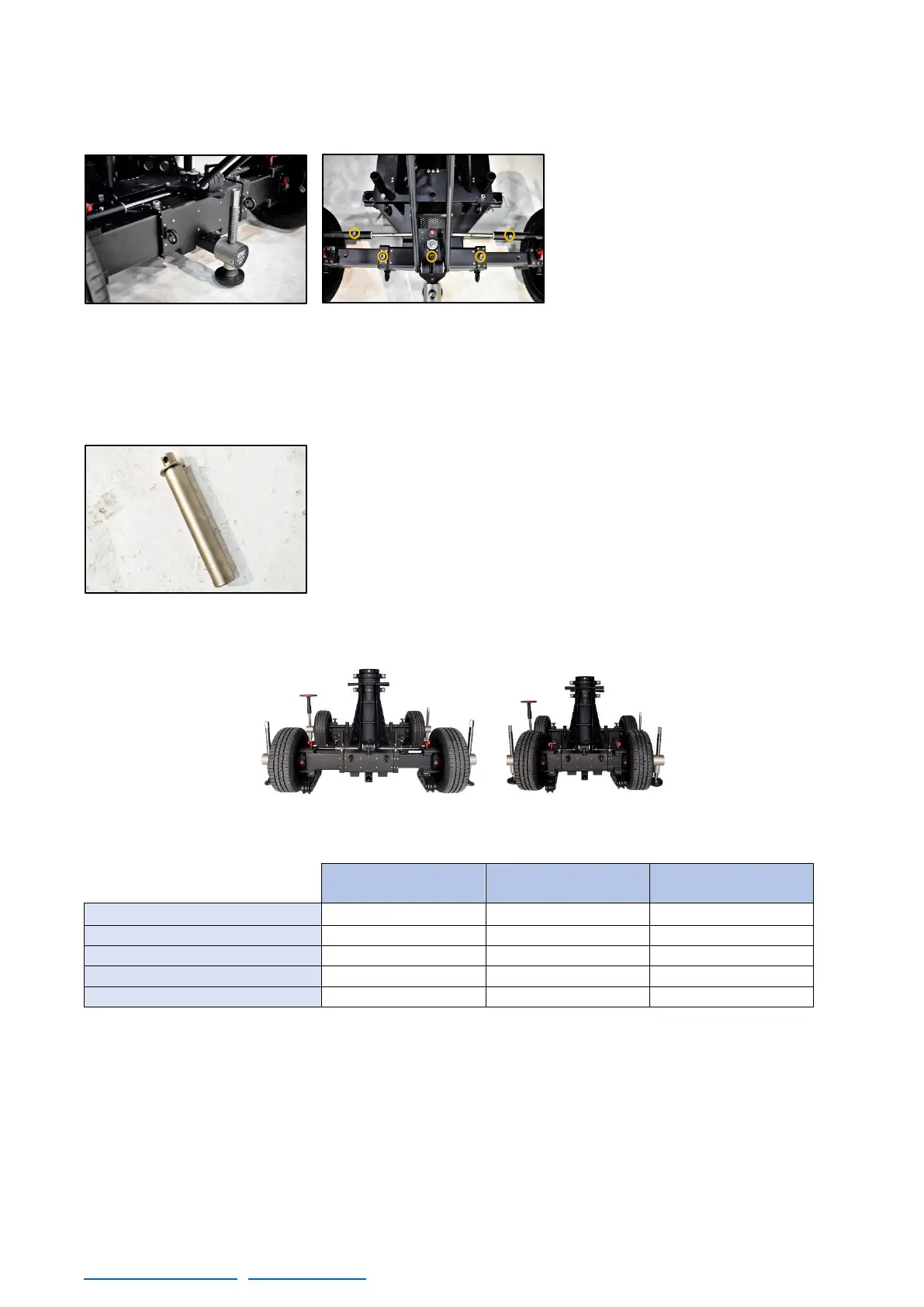

02.07 Dolly leveling jack introduced
02.08 Screws to remove to collapse
02.09 38’ Dolly with column in both positions
02.08b Steering Handles in gold color
