SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Accessories
Version 1.02 May 27, 2022
40

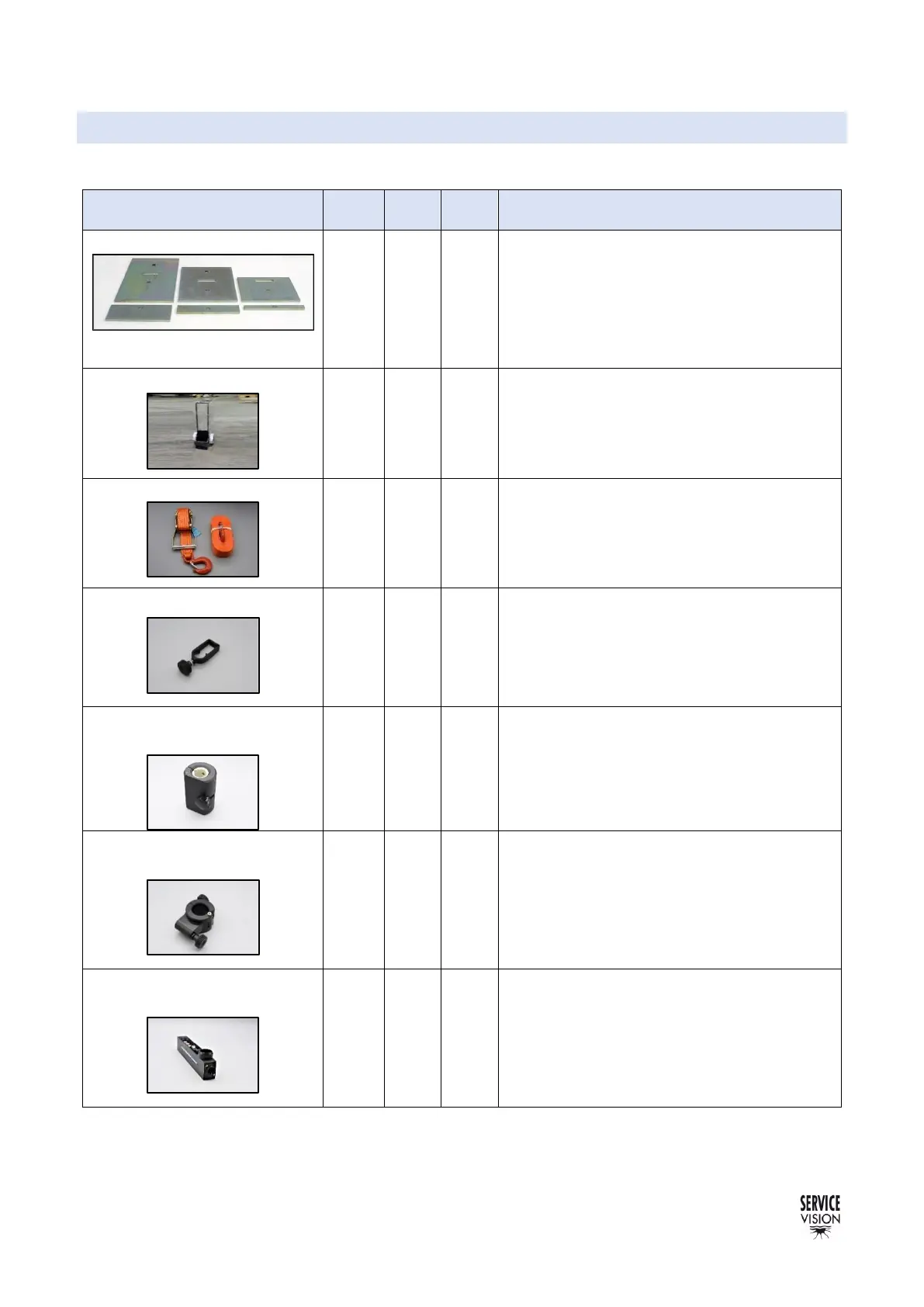

2.8 ACCESSORIES
Component
Ref.
Qty.
45’
Qty.
38’
Description
Set of Counterweights
7054
7055
7056
7057
7058
7059
64
1
3
2
1
2
54
1
3
2
1
2
Counterweight 15 Kg.
Counterweight 10 Kg.
Counterweight 8 Kg.
Counterweight 4 Kg.
Counterweight 2 Kg.
Counterweight 1 Kg.
They are used to balance the crane.
S45’-S38’ Weights dolly
7006
5
4
To transport the counterweights with the
crane.
S45’-S38’ Security strap
7076
3
2
The straps are used to secure the arm into
the dolly for safely transport it. It is
mandatory to have the crane strapped if
there is no one operating it.
S38’-45’ H. command bracket
7036
1
1
Used to hold the hand command into the
protection bar
S38’-45’ Sliding counter-
weight 6kg.
7060
1
1
This weight slides along the protection bars
to do the fix balance of the crane.
S38’-45’ Portable display
bracket
7701
1
1
To be attached in the operating upper
handlebars to hold the portable display.
S38’-45’’ Digital hand
command
7021
1(1)
1(1)
Hand command for the crane.
