SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Accessories
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 41
comercial@servicevision.es · www.servicevision.es

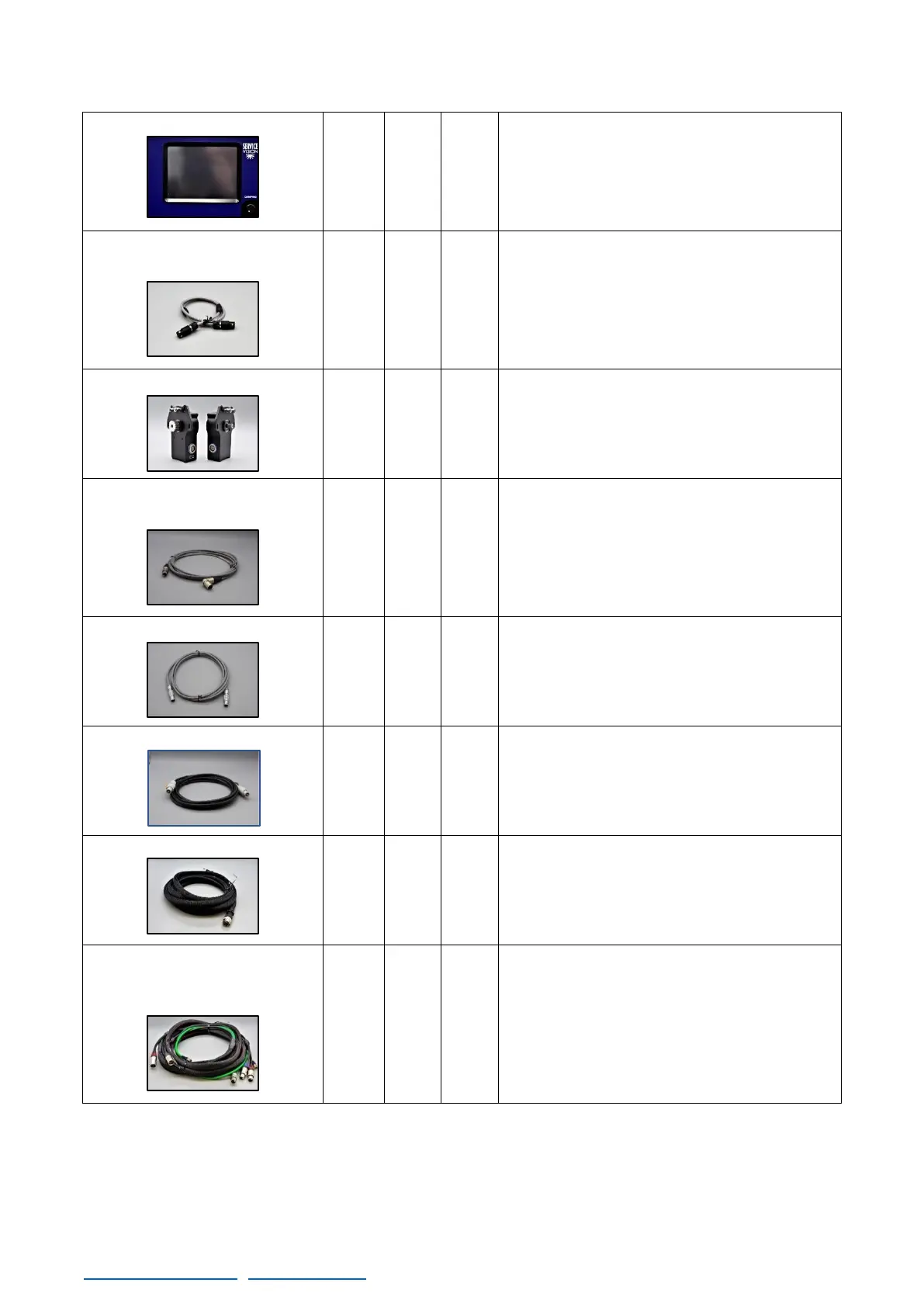

S38’-45’ Portable display
7692
1
1
The Portable display allows the user to use
the functions of the crane and also displays
useful information for the user.
S38’-45’ Portable display
cables
7693
7694
1(1)
1
1(1)
1
Short cable for portable display.
Long cable for portable display.
S38’-45’ Encoders
7615
7616
1
1
1
1
Pan encoder
Tilt encoder
S38’-45’ Hand command
cables
7022
7023
1(1)
1
1(1)
1
Short cable for hand command (5m.)
Long cable for hand command (15m.)
S38’-45’ Encoder cables
7619
7620
7621
1
1
1
1
1
1
S38’&S45’ Encoder cable for pan axis
(grey)
S38’&S45’ Encoder cable for tilt axis (blue)
S38’&S45’ Encoder cable for travelling (red)
S38’-S45’ Column cables
7309
7625
1(1)
1(1)
S38’ Column cable
S45’ Column cable (5m).
S38’-45’ Leveling head cable
7310
7623
1(1)
1(1)
Cable to communicate the leveling head
with the Electronic box.
S38’-45’ Power, Comm. &
Video line from Scorpio
cranes to Scorpio Heads
7308
7640
1
1
This looms provides any Scorpio head
power, communication and a video line
going through the crane to the base of the
dolly.
